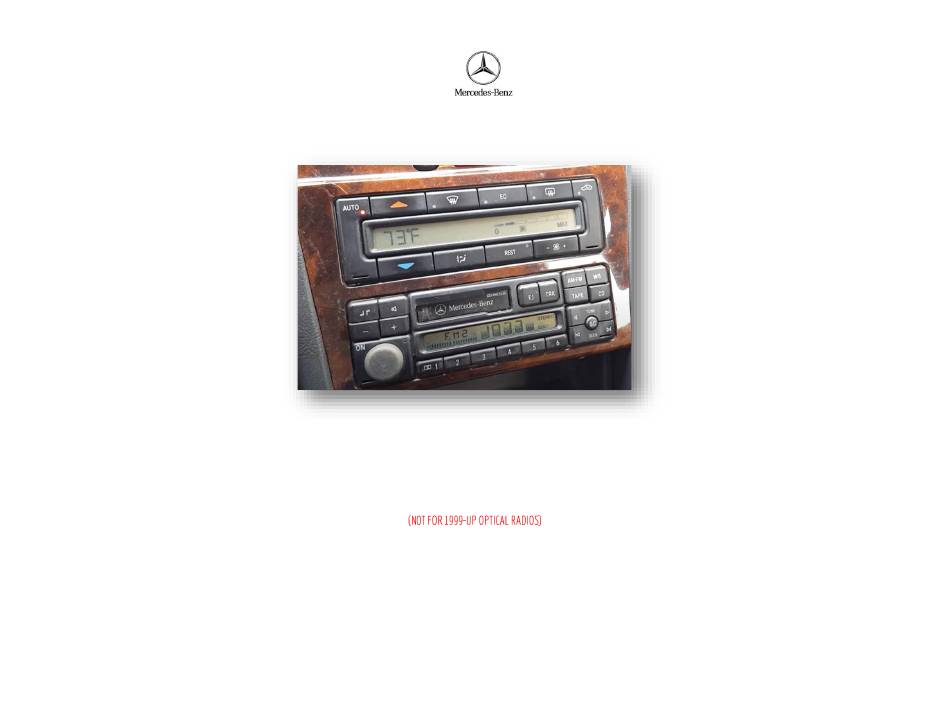

- Page 1 Courtesy of: DiscountCarStereo.com Serving the internet community since 1995 BT6-MBR QUICK START BLUETOOTH, FLASH DRIVE NSTALLATION GUIDE FOR SEELCT 1994-99 MERCEDES BENZ Created: January 16, 2025 Revised: March 30, 2025...
-
Page 2: Installation
Introduction The new BT6-MBR kit is compatible with virtually all Bluetooth phones, and sounds great whether using for mobile conversations or streaming music. smart media module does not only support Bluetooth but also playback of MP3/WMA/FLAC/ACC/WAV/AIF/AIFC files stored on a USB card etc. - Page 3 Fig. 5 Connect installation harness 16-pin plug (See Fig. 4) to module 16-pin socket (See Fig. 6) Fig. 2 If present, disconnect CD changer 10-pin plug (See Fig. 3) from radio Fig. 6 Use clip to secure microphone to headliner or visor Route microphone cable (10 ft.) down side pillar, to radio cavity Connect microphone plug to module “MIC”...
- Page 4 Optional USB extension cable installation Note: 1. Optional 6 ft. USB dash mount extension cable is not required for operation, however it extends the module built-in USB charging port (See Fig. 9) to dashboard, glovebox etc. This USB port supports charging and software updates only Fig.
-
Page 5: Bluetooth Operation
Bluetooth operation Pairing: Pairing process varies between devices but basic steps are the same. Pairing is Turn ignition to “ACC” and turn the radio ON done upon initial install and will not have to be repeated. 2. Press “CD” button on radio to enter Bluetooth mode. Turn ignition and radio “ON”... -
Page 6: Media Operation
Flash media requirements and functions Media operation Formatting Press “CD” button on radio to enter Bluetooth mode. Before loading files/folders we recommend formatting flash drive etc. to The radio screen will change to: CDC x Track x as seen in Fig. 17 FAT16 or FAT32 after which you may then save music files (MP3, WMA, FLAC, ACC etc.) to designated folders as explained next. -
Page 7: Aux Playback
Tap radio preset 1-6 for direct access to folder/album 1-6. Folder number (album) and track number are shown in the display. Does the BT6-MBR work in vehicles with CD changer? YES, but CD changer must be disconnected and will no longer function. - Page 8 Streaming mutes, guidance announced on car speakers. Once guidance ends streaming resumes. 9. Can I pair or save more than one device to the BT6-MBR? YES; more than one device (slaves) can be paired however only one connection can be active at a time.
