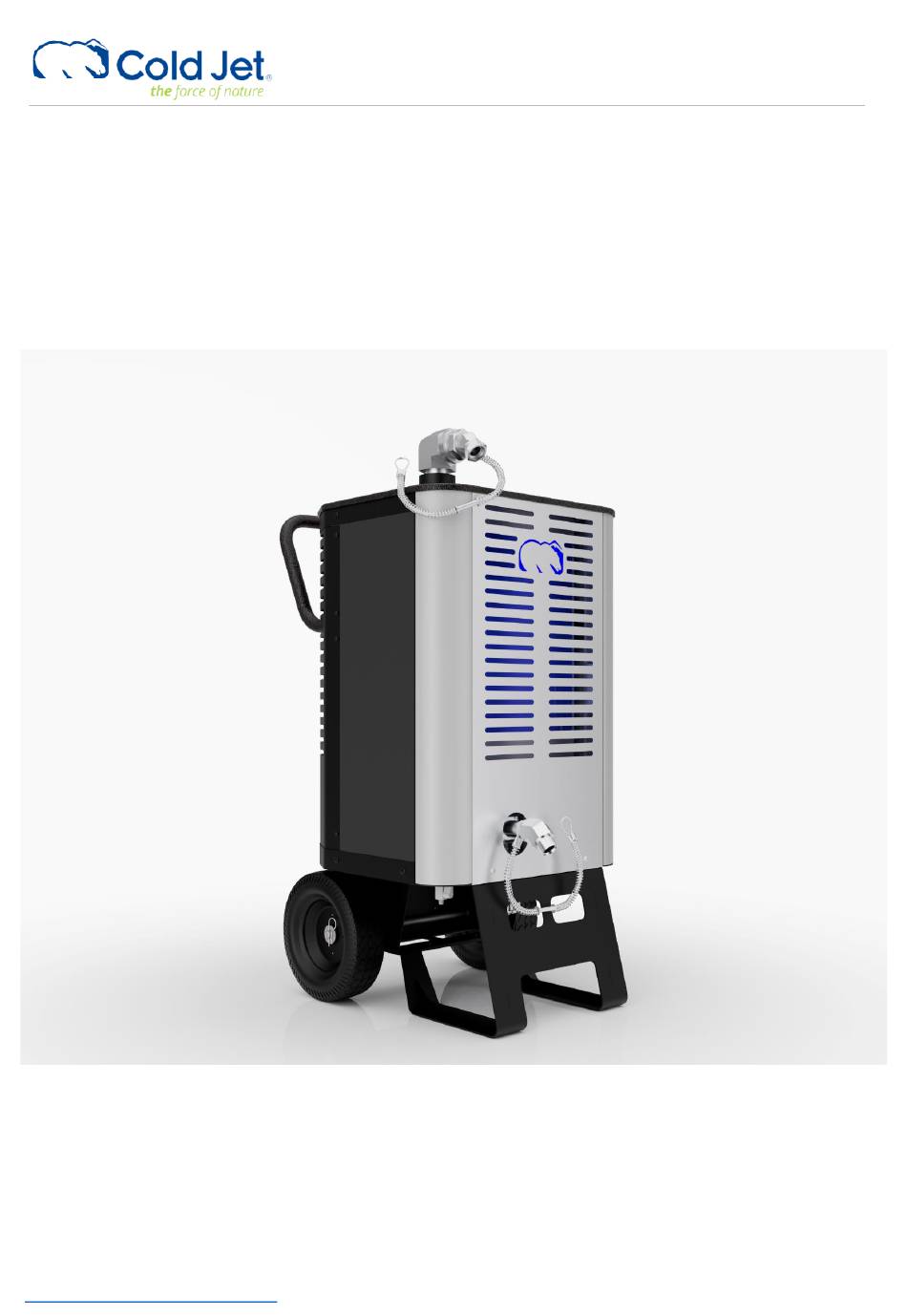

- Page 1 After Cooler AC 300 Operator Manual Original Instructions [English] (2W0594 Rev C) 2025-02-24 Click to go to Top of Document...
-
Page 2: Table Of Contents
Cold Jet and the client and remains the exclusive property of Cold Jet. If you find any problems in the documentation, please report them to us in writing. Cold Jet does not warrant that this document is error-free. -
Page 3: System Identification
Locate the data plate for this machine and record the information provided in the spaces below. ASSEMBLY No. SERIAL No. MAX OPERATING PRESSURE SHIPPING WEIGHT MANUFACTURE DATE Supplier Responsible for the Cold Jet, LLC Phone: 1-800-777-9101 Equipment: 6283 Tri Ridge Blvd Website: www.coldjet.com Loveland, Ohio 45140 USA 2025-02-24... -
Page 4: Introduction
Air Quality and After Coolers There are two basic types of air systems used with Cold Jet equipment. • o Plant Air: a permanent installation. The most common air source, but the quality varies. - Page 5 After Cooler Performance Examples to illustrate After Cooler performance under different operating conditions. • Example 1 Example 2 o Inlet Air Pressure = 150 psi o Inlet Air Pressure = 300 psi o Air Flow = 150 cfm o Air Flow = 150 cfm o Inlet Air Temperature = 300°F o Inlet Air Temperature = 300°F o Ambient Air Temperature = 100°F...
-
Page 6: Safety
The maximum throughput for the aftercooler is 400cfm (11.3 m /min) • As more air is pushed through the aftercooler, the less time it has to cool down because it is • moving faster inside the cooling passages. At an inlet air pressure of 80 psi (5.5 bar), the tables below show the effect of throughput on •... -
Page 7: Safety Labels
Standardization (ISO) and are defined below. These symbols may include yellow warning triangles, blue mandatory action circles or red prohibited action circles. Replace any safety labels or warning signs if they become damaged, missing, or illegible. Contact Cold Jet’s customer service department to obtain replacement labels. Safety Label Location Symbol... -
Page 8: Cautions And Warnings
Symbol Definition Wear eye and ear protection Read operator manual Hot Surface Warning Cautions and Warnings Review the following cautions & warnings before operating or performing maintenance on the machine. CAUTION Read the entire operator manual before using the machine. Only qualified personnel should operate the machine. -
Page 9: System Description
WARNING To ensure machine safety, use only original and replacement parts from Cold Jet. System Description Machine Data Dimensions 26.8 x 20.5 x 43.5 in (682 x 522 x 1106.34 mm) Weight 138 lb. (63 kg) Maximum Inlet Air Pressure 300 psi (20.6 bar) -
Page 10: Lockout Tagout
7. Ball Valve with Handle. 8. Filter / Water Separator. Lockout Tagout 1. Turn off the compressed air supply at the source. 2. To the left of the support frame (as seen from the front), on the underside of the machine, locate the ball valve with handle. -
Page 11: Operation
Do not lift the machine using the handlebar as there will be no stability which could cause damage to equipment or harm to personnel. Contact Cold Jet Customer Service for proper disposal instructions at the end of the machine’s life. • Machine Setup Improper installation of the machine could cause injury to the operator. -
Page 12: Starting The Machine
Starting the Machine 1. Turn the air bleed ball valve handle to the horizontal (closed) position. 2. Turn the filter’s ball valve handle to the horizontal (closed) position. 3. Turn on the compressor and pressurize the unit. 4. Adjust the fan speed by turning the rotary dial on top of the... -
Page 13: Shutting Down The Machine
Shutting Down the Machine 1. Turn off the compressed air supply at the source. 2. Turn the air bleed ball valve handle to a vertical position to release the Step 2 stored air pressure. 3. Place a pan or bucket under the ball valve of the filter. -
Page 14: The Compressed Air Supply
The Compressed Air Supply Although Cold Jet dry ice equipment is designed and engineered to work under the most • demanding environments and conditions, the incoming air supply must be as free of oil, dirt/foreign particles, and water/moisture as possible. - Page 15 Symbol: Example: Human hair = 70 Understanding the effects of the surrounding environment Although Cold Jet dry ice equipment is designed and engineered to work under the most • demanding environments and conditions, temperature, humidity, dust, and other contaminants present in the surrounding air can have an adverse effect on dry ice blasting equipment.
-
Page 16: Maintenance
And, if it is possible to cool the air even further such as using a Cold Jet aftercooler, more moisture is turned to water that can be separated from the compressed air. The result is even less moisture, in any form, to negatively affect the dry ice blasting equipment. -
Page 17: Cold Jet Connect
Cold Jet CONNECT® • As part of our commitment to the support of your machine, it comes with its own personal support site through coldjetconnect.com. To access your machine’s support page, locate and scan the QR code located on your machine. - Page 18 Optional Service Agreements Connect Basic is complementary; users can subscribe to Connect Care (see the details below). 2025-02-24 Click to go to Top of Document...
-
Page 19: Warranty Policy
Warranty Policy Cold Jet, LLC® (“CJ”) warrants its products (“Equipment”) provided under this Agreement to be free from defects in materials and workmanship for a period of 12 months (90 days for used equipment), under normal use, maintenance and service as stipulated in the Operator’s Manual, Commissioning, and Operator Training. -
Page 20: Contact Information
+1 513-831-3211 Cambridge, Ontario, N3H 5G7, Canada Customer Service: +1-800-777-9101 Phone: +1 888-675-9915 Mexico Belgium - Europe Headquarters Cold Jet Latinoamérica S. de R.L. de C.V. Cold Jet BV Phone: +52 (81) 1097-0445 Address: Zone 1 Researchpark 330, B-1731 Zellik, Belgium...
