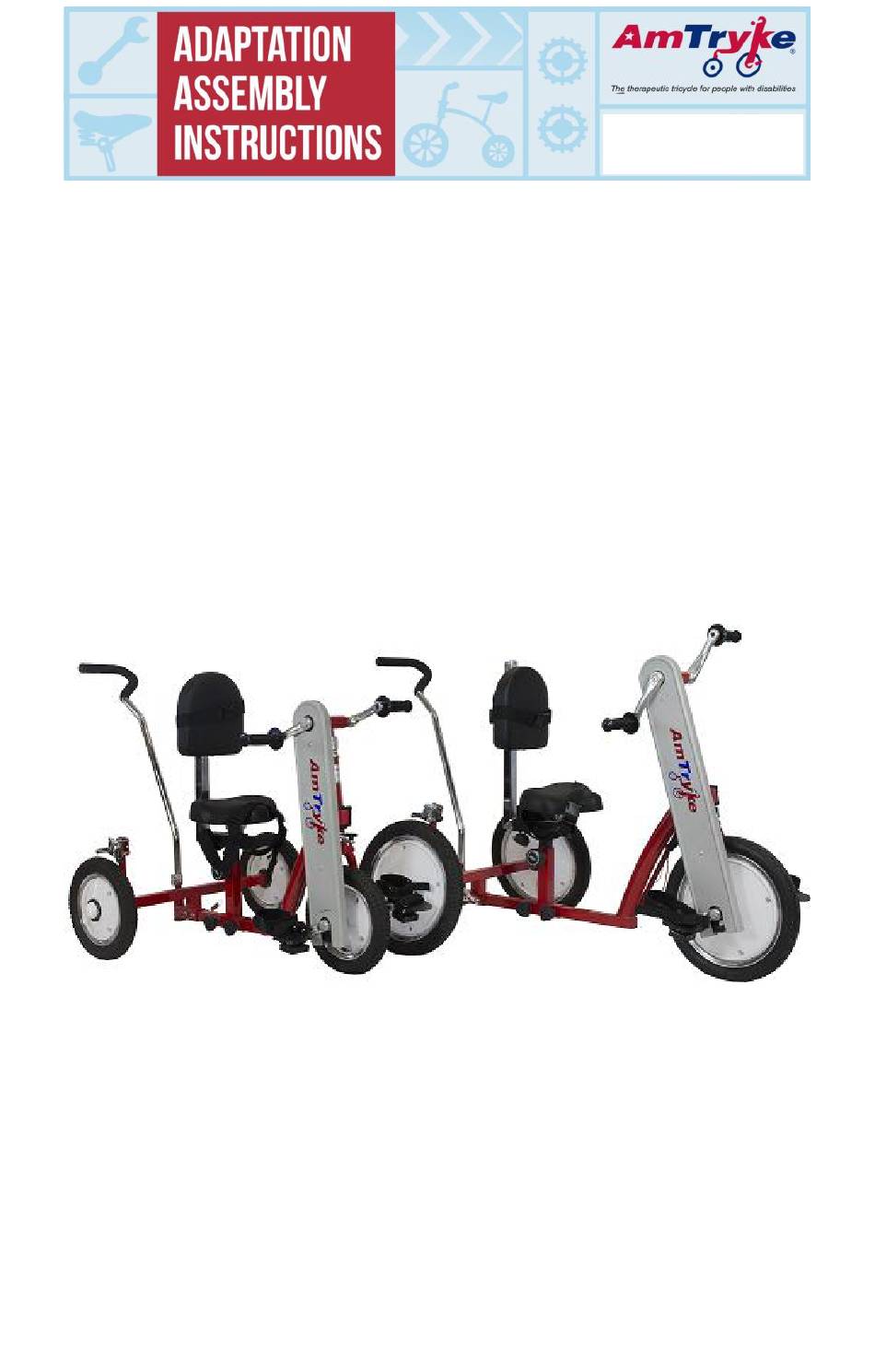

- Page 1 AM-12S/AM-12/AM-16 Hand & Foot AmTryke Therapeutic Trykes #50-HFC-0110; #50-HFC-0210; #50-HFC- 0411 Revised: 12/23/2015 N:\AmTryke\Manuals and Instructions\New Manuals\Manual Docs and Pdf...
-
Page 2: Table Of Contents
Back Wheels ....................9 Loading Brake ....................9 Seat ........................ 10 Pedals and Hand Cranks ................11 Steering Pin ....................11 Fitting AmTryke for Rider ................12 Optional Accessories ..................13 Troubleshooting .................... 13 Maintenance ....................14 Wheels and Tires ................... 14 Brakes ...................... -
Page 3: About Amtrykes
AmTryke® therapeutic tricycles, owned and operated by National AMBUCS™ Inc., are designed for people with disabilities who are unable to operate a traditional bicycle. AmTryke tricycles or “trykes,” can be operated by feet, hands or both, and include a wide variety of models. The trykes can also be adjusted to fit the needs of different riders, including frame size, type of seat, trunk and leg supports. -
Page 4: Safety
Before riding, familiarize yourself how the tryke operates —it’s steering, braking and shift gears (if applicable). Adjust the seat, handlebars and pedals to fit the rider. See Fitting AmTryke for Rider section in this manual for more information. Here are some tips about riding safety: ... -
Page 5: Brakes
Riders should only be allowed to ride trykes that are the appropriate size. If you are uncertain, refer to AmTryke Sizing Charts in this manual or contact a physical therapist. Before riding, always check that all tires are inflated properly. -
Page 6: Shift Gears
Do not try to change gears when pedals or wheels are not moving. Also, never change gears while back pedaling and do not force the gear shifter when changing gears. CAUTION: USE CAUTION WHEN SHIFTING GEARS. Revised: 7/7/2016 N:\AmTryke\Manuals and Instructions\New Manuals\Manual Docs and Pdf... -
Page 7: Assembly Instructions
SECURELY TIGHTENED BEFORE USING YOUR TRYKE. Getting Started Your AmTryke is shipped in parts. Carefully remove and lay out all parts from the carton so that you don’t scratch or lose any parts or pieces. Check that you have all the necessary parts. If any parts are missing, please call us at 1-888- AMTRYKE for assistance. - Page 8 Seat Main Quick release levers securing frame Front knobs wheel Your AmTryke also includes the following small parts not shown in the photo above: Spring cover Steering securing spring Additional small parts Revised: 7/7/2016 N:\AmTryke\Manuals and Instructions\New Manuals\Manual Docs and Pdf...
-
Page 9: Front Wheel
(vertical or middle Quick position, or wheel fully extended). release lever NOTE: AM-12S does not have a Eyelets hinged front end. To attach the front wheel assembly: Spring 1. Install the lower quick release lever... -
Page 10: Adjusting Front End (Am-12 And Am-16)
: HINGE WRAP MUST BE INSTALLED BEFORE RIDING. Step 5 Adjusting Front End (AM-12S, AM-12 and AM-16) If you need to adjust the angle of the hinged front end, follow these steps: 1. Put the left pedal to the lowest position. -
Page 11: Back Wheels
To install it, slide it onto the loading brake tube on the rear frame (right side). NOTE: Top of the parking brake should be flush with the top of tube. Revised: 7/7/2016 N:\AmTryke\Manuals and Instructions\New Manuals\Manual Docs and Pdf... -
Page 12: Seat
Seat post (for models AM-12 and AM- 16 pictured) CAUTION: SPRING LOADED KNOB MUST BE PROPERLY PLACED AND TIGHTENED BEFORE RIDING. Revised: 7/7/2016 N:\AmTryke\Manuals and Instructions\New Manuals\Manual Docs and Pdf... -
Page 13: Pedals And Hand Cranks
NOTE: You may find it desirable to limit steering so the rider can concentrate on learning the pedal motion first. Revised: 7/7/2016 N:\AmTryke\Manuals and Instructions\New Manuals\Manual Docs and Pdf... -
Page 14: Fitting Amtryke For Rider
5. Adjust the front end (AM-12 and AM-16 have a hinged front end). 6. Adjust the lap, chest and pedal straps. If you need to adjust the tryke more, see Optional Accessories on the next page for different options. Revised: 7/7/2016 N:\AmTryke\Manuals and Instructions\New Manuals\Manual Docs and Pdf... -
Page 15: Optional Accessories
Optional Accessories Most AmTryke models can be adapted with a variety of seating options and accessories, so that most riders can feel safe and secure. See the table below for accessories available for AM-12S, AM-12 and AM-16: OPTIONAL ACCESSORIES Snappy seat system (AM-12 and... -
Page 16: Maintenance
Maintenance Maintenance is important to help keep your AmTryke in good working order for years to come. This section includes some general maintenance tips. Wheels and Tires Wobbly wheels cut braking power, so keep all wheels running true. Wheels can lose alignment over time when spokes stretch. -
Page 17: Maintenance Schedule
Maintenance Schedule Follow this maintenance schedule to keep your AmTryke in safe operating condition. MAINTENANCE SCHEDULE PART TO DO LIST WHEN All handlebar bolts Check tightness Every 4 months Brake cables Check for slack, frayed cable Every 6 months Brake arms... -
Page 18: Warranty
ANY LIABILITY OR MAKE ANY WARRANTY EXCEPT AS STATED IN THIS LIMITED WARRANTY. PARTS: AmTryke will repair or replace, at its option, defective parts for this tryke at no charge, for a period of one year after the date of original purchase. -
Page 19: Donations
For parents and families the use of AmTryke fulfills the need of every child to have a bike. All children deserve a chance to have a bike just like their siblings and friends. -
Page 20: Refunds
A restocking fee of $50.00 is charged for returned goods. You will be refunded the shipping cost if the return is a result of our error. For any questions, please call us at 1-888-AMTRYKE or send email to amtryke@ambucs.org. -
Page 21: Amtryke Sizing Charts
Socket Pliers Adjustable (Flathead, Phillips) wrench Tools (top row tools are included with your AmTryke) Questions or Concerns Regarding your Build? No problem! Please Contact Derek Shaw, AmTryke Technical and Customer Support Coordinator @ 1-800-838-1845 x114 or dereks@ambucs.org Revised: 7/7/2016...
