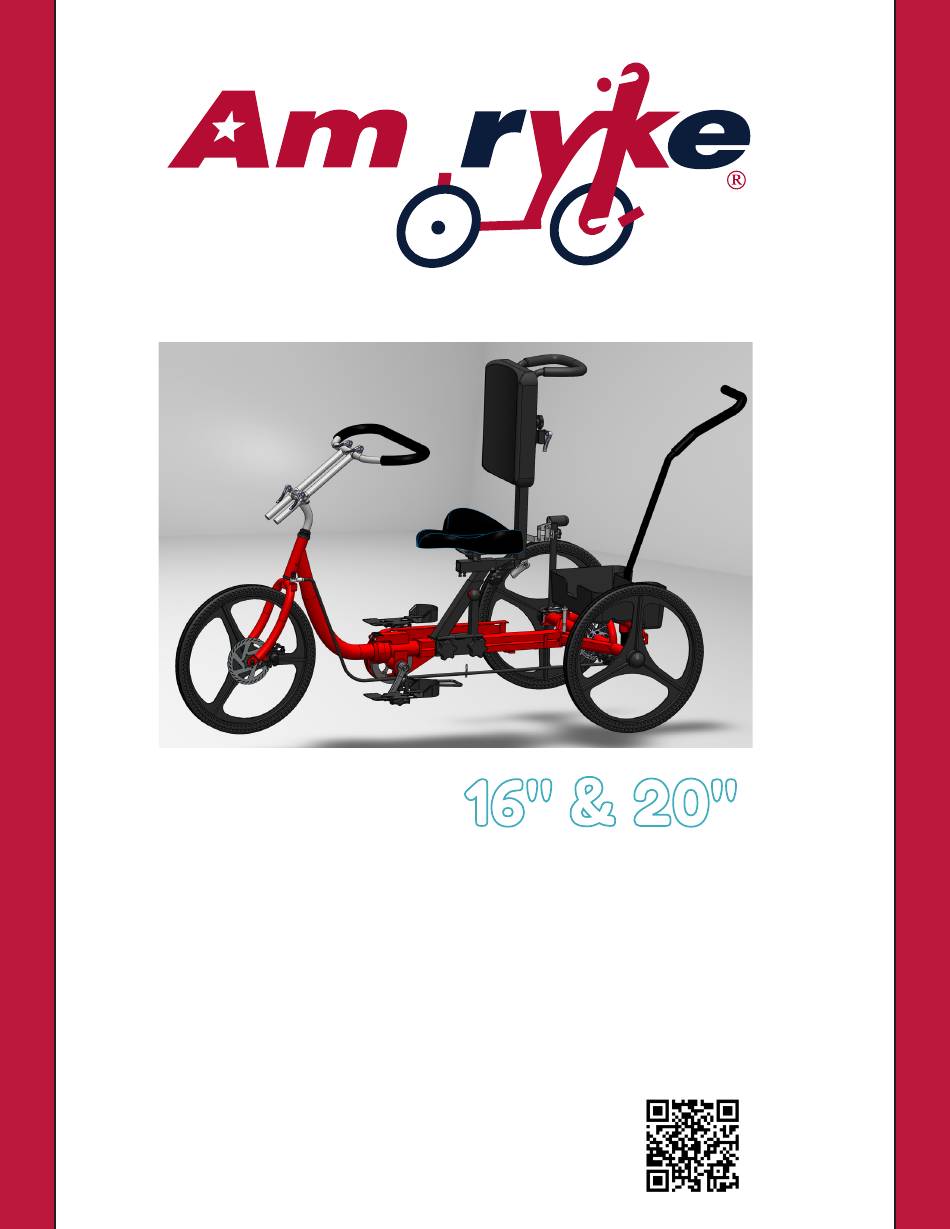

- Page 1 Adaptive Trykes for Amazing People! Paceline 16" & 20" (MAF 16 & LAF 20) Assembly Instructions Scan the QR code or visit ambucs.org/amtryke-support to access supplementary instructions and videos.
-
Page 2: Table Of Contents
Contents Tools and Parts Overview Step 1: Assemble Rear Wheels on Rear Axle Step 2: Install Rear Steering Handle Step 3: Install Front Frame into Rear Frame Step 4: Install Front Wheel Step 5: Handlebar Stem Installation Step 6: Telescoping Handlebar Installation Step 7: Attach Rear Cables Step 8: Install Front Rear Steering Rod Step 9: Install Parking Post... -
Page 3: About Amtrykes
About Amtrykes ® Amtryke, LLC is fully owned and operated by National AMBUCS™ Inc, a 501c3 charity. Amtryke tricycles are designed for people who are unable to safely operate a traditional bicycle. Amtryke tricycles or “trykes,” can be operated by feet, hands or both feet and hands together. A wide variety of models can be adjusted to fit the needs of different riders by choosing the optimal seat, handlebars, back rest and adaptive accessories. -
Page 4: Getting Started
SECURELY TIGHTENED BEFORE USING YOUR TRYKE. Getting Started: Your Amtryke is shipped in parts. Carefully remove and lay out all parts from the carton so that you don’t scratch or lose any parts or pieces. Check that you have all the necessary parts. If any parts are missing, please call us at 800-838-1845 for assistance. -
Page 5: Tools And Parts Overview
Tools Included: • Adjustable Wrench • 3-way Allen Wrench (4mm, 5mm, 6mm) • Folding Allen Wrench Set (2mm, 3mm, 4mm, 5mm, 6mm, Phillips and standard Screwdriver) Parts: Standard Components: • Rear Frame • Pedals • Front Frame with Handlebar • Wheels (3) Front Wheel, Rear Non-Drive Wheel, Rear Drive Wheel •... -
Page 6: Step 1: Assemble Rear Wheels On Rear Axle
Step 1: Assemble Rear Wheels On Rear Axle Tools Needed: Adjustable Wrench Parts Needed: • Rear Frame • Non-drive Rear Wheel • Drive Rear Wheel • Axle Nuts (2) • Axle Caps (2) • Washers (2 • Locking Key (1) 1a: Install Drive Wheel Install Key Onto Axle On Drive Side (Right). - Page 7 1b: Install Non-Drive Side Wheel Slide Non-Drive Wheel (Bearing With Silver Ring) On Axle With Mounting Flange Facing In(Left Side). Install Washer Onto Axle After Wheels. Install Nyloc Nut Onto Axle After Washer. Tighten Nyloc Nut Using The Supplied Adjustable Wrench. *Note: Do Not Fully Tighten Nut Until Both Wheels Are Installed.
- Page 8 1c: Tighten Both Wheels And Install Wheel Caps Starting With The Drive Wheel, Tighten The Axle Nut Until There Is No Lateral Movement. If The Wheel Moves Side To Side Continue Tightening A Quarter Turn At A Time. The Axle Threads Should Extend Past The Nylon On The Nut With Approx.
-
Page 9: Step 2: Install Rear Steering Handle
Step 2: Install Rear Steering Handle (Skip Step If Rear-Steer Kit Not Ordered) The Rear Steering (RS) And Rear Brake Cable Are Already On The Rear Frame. Loosen The Qr Lever On The Rs Bracket. Slide The Handle Into The RS Bracket Approximately 3”. -
Page 10: Step 3: Install Front Frame Into Rear Frame
Step 3a: Install Front Frame Into Rear Frame Make Sure Kickstand Is In The Down Position On The Rear Frame. Slide The Connection Flange Of The Front Frame Into The Slot Of The Rear Frame (As Shown). Make Sure The Locking Bolt Slides All The Way Into Place And The Flan- ges Are Fully Seated... - Page 11 Step 3b. Lock Front And Rear Frame Together Move Locking Lever Into Up- right Position. Using The “Grab- Tab”, Pull The Safely Button Toward The Front Of The Tryke. Hold Safety Button Back With Non Dominant Hand. Push Down Locking Lever With Dom- inant Hand And Release “Grab- Tab”...
-
Page 12: Step 4: Install Front Wheel
Step 4: Install Front Wheel Install Quick Release Lever(QR) Into Front Wheel So That The Lever Is On The Opposite Side Of The Brake Rotor (As Shown In Image 4). Slide Wheel Up Into Front Fork Drop- outs. Once The Wheel Is Fully Seated Into Fork Dropouts, Tighten The QR Lever To Complete Installation. -
Page 13: Step 5: Handlebar Stem Installation
Step 5: Handlebar Stem Installation Slide The Base Of The Stem Into The Head Tube Of The Tryke. Remove The Rubber Plug In The Top Of The Stem To Reveal The 6mm Allen Bolt. Make Sure The Stem Is Straight Inline With Front Wheel Before Tightening. -
Page 14: Step 6: Telescoping Handlebar Installation
Step 6: Telescoping Handlebar Installation Open Quick Release (Qr) Levers On Telescoping Rod Mounts (Top Of Stem) And Slide Handlebar Rods Into Top Of Stem. Once Desired Position Is Achieved, Close The Qr Levers To Lock The Handlebar In Place. *Note: Pull/Push The Handlebar To Verify It Is Locked In Place. -
Page 15: Step 7: Attach Rear Cables
Step 7: Attach Rear Cable (Skip Step If Three Speed Kit Or Rear Rider Brake Not Ordered) Make Sure The Shifter Is In The Highest Gear. Under The Connection Flange, Connect The Front And Rear Cables Together By Tightening Them By Hand. Rotate The Rear Cable Bolt On To The Front Cable Nut Until They Are... -
Page 16: Step 8: Install Front Rear Steering Rod
Step 8a: Install Front Rear Steering Rod (Step If Rear-Steer Kit Not Ordered) Images On Page 17 Slide Front Steering Rod Through The Guide Under Kickstand (From Front To Back Of Tryke). To Connect The Front And Rear Rods, Insert Pin Through Both Sides Until It Is Fully Seated. - Page 17 Step 8a: Images...
-
Page 18: Step 9: Install Parking Post
Step 9: Install Parking Post Tools Needed: • Adjustable Wrench • Flip Wrench Set (4mm Allen wrench Parts Needed: • Parking Brake Post • Long Allen Head Screws (2) • Nyloc Nuts (2) Step 9a. Place Parking Brake Post Onto Desired Side Of Frame On Rear Axle Tube At The Mounting Pad. -
Page 19: Step 10: Install Seat Base
Step 10: Install Seat Base Slide White Plastic Liner Onto Frame Tubes Until Fully Seated. Slide Seat Base Over Plastic Liner Until Fully Seated. Slide The Seat Base Knobs Through The Holes In The Seat Base And Plastic Liner. Tighten The Knobs By Hand. Note: This Is A Great Time To Estimate To Seat Base Placement. -
Page 20: Step 11: Install Seat Onto Seat Post
Step 11: Install Seat Onto Seat Post Parts Needed: • Seat Post • Seat Tools Needed: • Adjustable Wrench Flip Seat Over So The Mount- ing Bracket Is Facing Up. Slide The Mounting Post On The Seat Post Into The Seat Mounting Bracket On The Seat. -
Page 21: Step 12: Install Seat Post Into Seat Base
Step 12: Install Seat Post Into Seat Base Loosen And Pull Outward On The Red Adjustment Knob And Slowly Lower The Seat Post Into The Top Of The Seat Base. Make Sure The Safety Pin “Clicks” Into The Desired Hole On The Seat Post. Tighten The Adjustment Knob To Lock The Seat Post Into Place. -
Page 22: Step 13: Install Seatback Into Seat Post
Step 13: Install Seatback Into Seat Post (Skip Step If Seat-Back Not Ordered) Loosen The Locking Knob On The Side Of Seat Post. Slide Short Side Of Seatback “L” Bracket Into The Back Of The Seat Post. Install To Desired Depth And Re-tighten The Locking Bolt. *Note: Make Sure Seatback Is Inserted A Minimum Of 2”... -
Page 23: Step 14: Install Seatback
Step 14: Install Seatback Install Seatback By Loosening The Locking Knob, Sliding The Seat- back Bracket On To The Seatback, And Tightening The Knob At The Desired Height. -
Page 24: Step 15: Install Basket
Step 15: Install Basket Tools Needed: • Folding Allen Wrench Set (4mm) Parts Needed: • Rear Frame • Basket • Basket Screws (4mm Drive) Place Basket Over Frame Support Tube And Align Rear Bolt Holes With Nuts In Rear Frame Tube. Install Both Bolts Using The 4mm Allen Wrench And Push Down On... -
Page 25: Safety Information
(if applicable). Adjust the seat, handlebars and pedals to fit the rider. See Fitting Amtryke for Rider in this manual for more information. Here are some tips about riding safety: • Amtrykes should be used with close adult supervision. • Riders must wear helmets. - Page 26 • Riders should only be allowed to ride trykes that are the appropriate size. If you are uncertain, refer to Amtryke Sizing Chart in this manual or contact a physical therapist or occupational therapist.
- Page 27 CAUTION: USE CAUTION WHEN SHIFTING GEARS Maintenance Maintenance is important to help keep your Amtryke in good working order for years to come. This section includes some general maintenance tips. Wheels and Tires Wobbly wheels cut braking power, so keep all wheels running true. Wheels can lose alignment over time when spokes stretch.
-
Page 28: Maintenance Schedule
Check that all quick release lock levers, nuts and bolts are properly tightened, and that tires are properly inflated. Maintenance Schedule Follow this maintenance schedule to keep your Amtryke in safe operating condition PART TO DO LIST... -
Page 29: Warranty
STATED IN THIS LIMITED WARRANTY. PARTS: Amtryke will repair or replace, at its option, defective parts for this tryke at no charge, for a period of one year after the date of original purchase. Parts subject to normal wear and tear, including tires, tubes, seat, pedals and handgrips are not covered by this one year period. - Page 30 Page Left Blank Intentionally...
- Page 31 Page Left Blank Intentionally...
-
Page 32: Useful Information
Amtryke Adaptive Tricycle Program The program’s goal is to provide people with disabilities the opportunity to ride bikes. Amtryke has designed a wide range of models suitable for many diagnoses at low cost. Online Resources: Visit ambucs.org to learn more about AMBUCS nationwide network...
