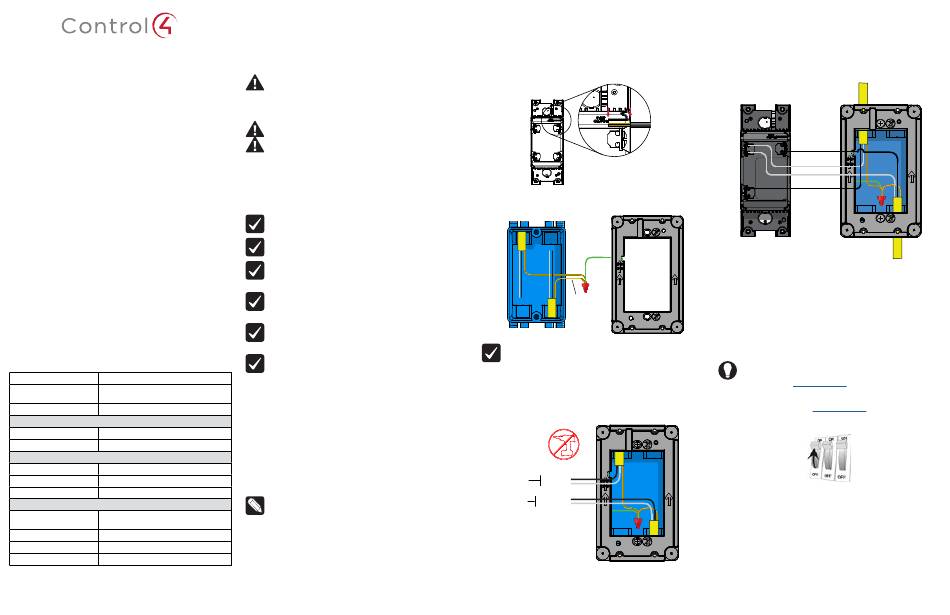

Lux Fan Speed Controller
Installation Guide
Supported model
• C4-L-4SF120 Control4 Lux Fan Speed Controller
Introduction
The Control4® Lux Fan Speed Controller operates independently or as part of
a Control4 home automation system to provide four quiet speeds plus an Off
setting for standard paddle-type ceiling fans. It installs in a standard wall box
using typical wiring standards and communicates to the Control4 system using a
wireless connection.
Box contents
• Control4 Lux Fan Speed Controller
• Warranty card
• Temporary button(s)
• Control4 Lux Fan Speed Controller Installation Guide (this document)
Mounting Plate Required for Install
The Control4 Lux Fan Speed Controller requires a faceplate and mounting plate
designed to fit your install (1 gang, 2 gang, etc.). These must be installed before
you install the device. Part numbers for faceplates and mounting plates are listed
below:
• Lux Faceplate and Mounting Plate, 1 gang (C4-L-FP1-XX)
• Lux Faceplate and Mounting Plate, 2 gang (C4-L-FP2-XX)
• Lux Faceplate and Mounting Plate, 3 gang (C4-L-FP3-XX)
• Lux Faceplate and Mounting Plate, 4 gang (C4-L-FP4-XX)
Specifications and supported load types
Model number C4-L-4SF120
Power requirements 120V AC +/-10%, 50/60 Hz
Neutral connection is required.
Power consumption 120V, 400mW
Load types and ratings
Supported load types Single, paddle-type ceiling fan
Maximum load 2A
Environmental
Operational temperature 0 to 40 ˚C (32 to 104 ˚F)
Humidity 5% to 95% non-condensing
Storage -20 to 70 ˚C (-4 to 158 ˚F)
Miscellaneous
Control communications Zigbee, IEEE 802.15.4, 2.4 GHz, 15-channel
spread spectrum radio
Wallbox volume 5.75 cubic inches
Weight 0.05 kg (0.12 lb.)
Shipping weight 0.08 kg (0.18 lb.)
Warnings and considerations
WARNING! Turn OFF electrical power before installing or servicing this
product. Improper use or installation can cause SERIOUS INJURY, DEATH or
LOSS/DAMAGE OF PROPERTY.
ATTENTION! Coupez l'alimentation électrique avant d'installer ou de
réparer ce produit. Une mauvaise installation ou utilisation peut entraîner
des blessures graves, décès ou perte / dommages à la propriété.
WARNING! This device must be protected by a circuit breaker (20A max).
ATTENTION! Cet appareil doit être protégé par un disjoncteur (20A max.)
WARNING! Ground this device in accordance with the National Electric
Code (NEC) requirements. DO NOT rely solely upon the mounting braket's
contact with a metal wall box for adequate grounding. Use the mounting
plate's ground wire to make a secure connection to the safety ground of
the electrical system.
ATTENTION! Cet appareil doit être en conformité avec le Code national
de l'électricité (NEC). Ne comptez pas uniquement au contact de la
plaque avant avec un boîtier mural métallique pour la mise à la terre
adéquate. Utilisez cet appareil à la terre de l'appareil pour établir une
connexion sécurisée au système électrique.
IMPORTANT! This device must be installed by a licensed electrician in
accordance with all national and local electrical codes.
IMPORTANT! If you are unsure about any part of these instructions,
consult a qualified electrician.
IMPORTANT! Use this device only with copper or copper-clad wire. Do not
use aluminum wiring. This product has not been approved for use with
aluminum wiring.
IMPORTANT! Using this product in a manner other than outlined in this
document voids your warranty. Further, Snap One is NOT liable for any
damage incurred with the misuse of this product. See "Troubleshooting."
IMPORTANT! Do NOT use a power screwdriver to install this device. If you
do, you may overtighten the screws and strip them. Also, overtightening
the screws may interfere with proper button operation.
IMPORTANT! This is an electronic device with intricate components.
Handle and install with care!
Installation instructions
1 Ensure that the location and intended use meet the following criteria:
• Do not exceed the load capacity requirements of the device. Refer to the
load ratings in the specifications above for details.
• Install in accordance with all national and local electrical codes.
• The range and performance of the wireless control system is highly
dependent on the following: (1) distance between devices; (2) layout of
the home; (3) walls separating devices; and (4) electrical equipment
located near devices.
2 Turn off the local electrical power by either switching off the circuit breaker
or removing the fuse from the fuse box. To ensure the wires do NOT have
power running to them, use an inductive voltage detector.
NOTE: The wall box wiring shown in this document is an example. Your
wire colors and functions may differ. If you are not sure which wires are
the Line In/Hot, Neutral, Load, Traveler, and Earth Ground wires, have a
trained electrician perform the installation.
Black (Load)
To Load
White (Neutral)
Black (Line in/Hot)
From Breaker
White (Neutral)
3 Prepare each wire. Wire insulation should be stripped back 1/2 of an inch
(13 mm) from the wire end. You can use the strip gauge on the back of the
device to check the proper distance.
4 Identify your wiring application, and then see the appropriate wiring
diagram in the Sample Wiring Configurations section below.
Green (To ground)
Green (To ground)
Copper (To ground)
Copper (To ground)
IMPORTANT! This device must be grounded as described in the section
Warnings and Considerations. Otherwise, the installation may be less
immune to damage caused by electrical disturbances, such as ESD or
lightning, and may void the warranty.
5 Connect the ground wire lead from the mounting plate to ground in the wall
box.
6 Using a manual screwdriver, install the mounting plate to the wall box. Do
not overtighten the screws. Pull the rest of the wires through the mounting
plate.
Black (Load)
To Load
White (Neutral)
Black (Load)
To Load
Black (Line in/Hot)
White (Neutral)
From Breaker
White (Neutral)
Black (Line in/Hot)
From Breaker
White (Neutral)
7 Identify and connect the wires to the back of the device. Insert the wire into
the terminal and secure it by hand-tightening the set screw.
To Load
Fan Speed Controller
Black (Line in/Hot)
LINE
NEUTRAL
White (Neutral)
White (Neutral)
LOAD
Black (Load)
From Breaker
8 Fit the wires back into the wall box. Bend the wires in a zigzag pattern so that
they easily fold into the wall box.
9 Align the device to the mounting plate (the strip gauge should be at the
top) and fasten it with screws. Tighten the screws until the back side of the
device is even with the mounting plate, but no further. Overtightening can
warp the device, which may cause mechanical malfunction and mounting
inconsistencies.
10 Starting with the bottom button and working your way up, install the
temporary buttons onto the device. Orient the buttons with the light pipe on
the right. Place the button's left prong onto the black post on the device's left
side. Then, snap the other side into place.
TIP: This device ships with temporary buttons for basic operation until
finished. Engraved buttons can be ordered. To remove the temporary
buttons and install the engraved buttons, see the Control4 Lux Button
Installation Guide (ctrl4.co/lux-butn-ig). Blank unengraved buttons are
also available.
11 Install the Control4 Faceplate following the instructions in the Control4 Lux
Faceplate Installation Guide (ctrl4.co/lux-butn-ig).
12 Turn on power at the circuit breaker or replace the fuse from the fuse box.
