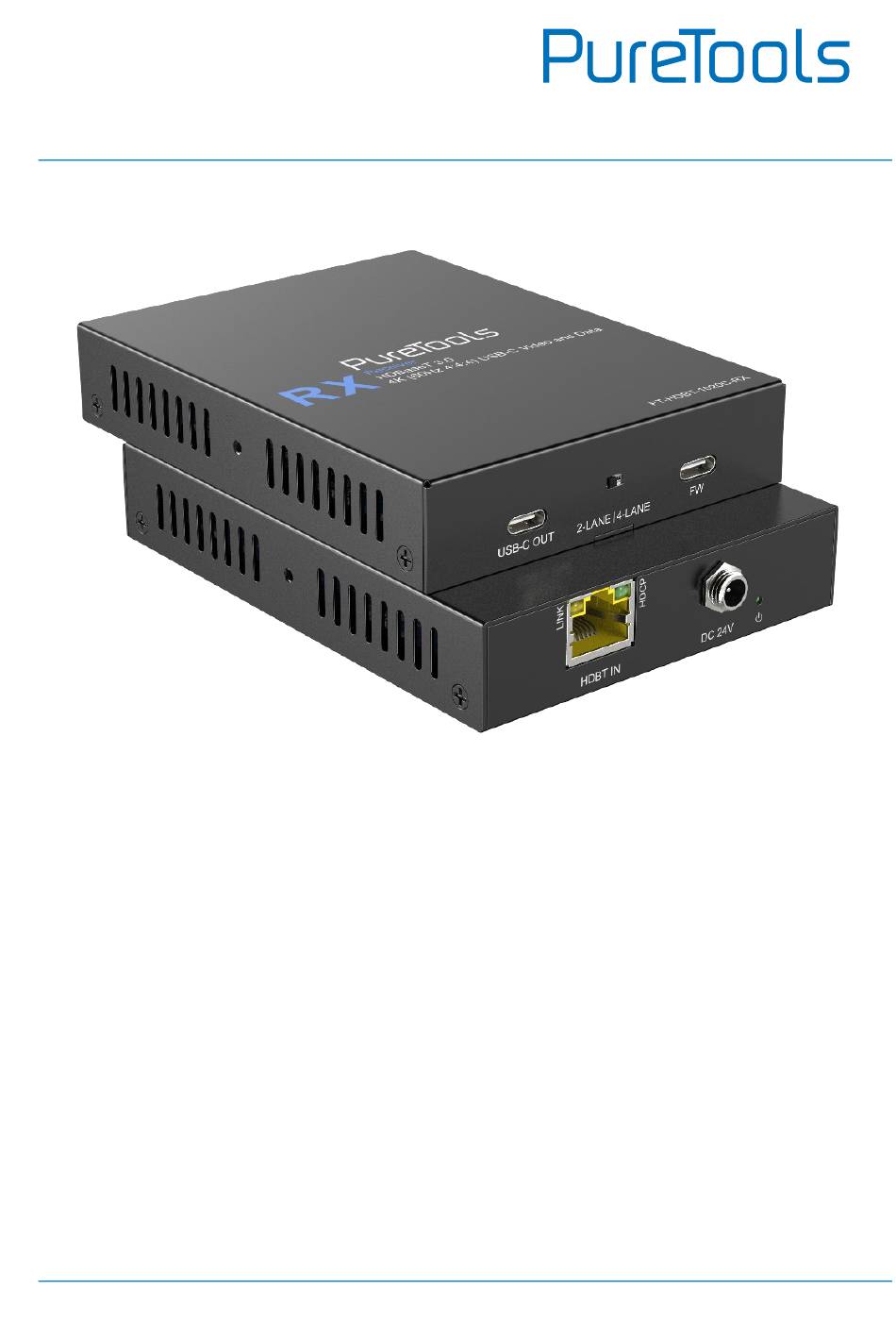

- Page 1 User Manual PT-HDBT-1020C-RX User Manual HDBaseT 3.0 4K (60Hz 4:4:4) USB-C Video and Data Model PT-HDBT-1020C-RX Designed in Germany © 21.01.2025 PureLink GmbH All rights reserved. VersionV1.1...
-
Page 2: Fcc Statement
User Manual PT-HDBT-1020C-RX Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only. Different model layouts and specifications are subject to the physical product. This manual is for operation instructions only, not for any maintenance usage. - Page 3 PT-HDBT-1020C-RX REACH | 1907/2006/EU ROHS | 2011/65/EU PureLink hereby declares that this product PureTools PT-HDBT-1020C-RX complies with Directives 1907/2006/EU und 2011/65/EU. EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive) PureLink GmbH hereby declares that this product PureTools PT-HDBT-1020C-RX complies with Directives 2014/30/EU and 2014/35/EU.
- Page 4 User Manual PT-HDBT-1020C-RX SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material ⚫...
-
Page 5: Product Introduction
1.Product Introduction 1.1 Introduction The PT-HDBT-1020C-RX is a professional extender receiver using HDBaseT3.0 technology. The receiver includes an HDBaseT input and a single USB-C video and data output. It can receive 4K@60Hz 4:4:4 video signal and USB2.0 data via a CAT6A cable up to 100m. -
Page 6: Panel Description
User Manual PT-HDBT-1020C-RX 2. Panel Description Name Description 1 x RJ45 connector. Connects to the transmitter over CAT6A cables. The LED illuminates green when video transmit with HDBT IN ① HDCP. The LINK LED illuminates yellow when there is a valid HDBaseT link between the transmitter and the receiver Connect to the 24V 1.25A power adapter to power up the... -
Page 7: Specification
User Manual PT-HDBT-1020C-RX 3. Specification Transmitter Video Input 1x HDBT IN Input Connector 1x RJ45 Input Resolution Up to 4K 60Hz 4:4:4 Output 1x USB-C (USB 2.0, up to 272Mbps) Output Connector 1x USB-C Output Resolution Up to 4K 60Hz 4:4:4... -
Page 8: System Diagram
User Manual PT-HDBT-1020C-RX 4. System Diagram The following diagram illustrates typical input and output connections that can be utilized with the extender. -
Page 9: After Sales Service
User Manual PT-HDBT-1020C-RX 5. After-Sales Service If there appear some problems when running the product, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: This product will be free from defects in materials and workmanship for three years (The purchase invoice shall prevail). - Page 10 User Manual PT-HDBT-1020C-RX...
- Page 11 User Manual PT-HDBT-1020C-RX...
-
Page 12: Asking For Assistance
User Manual PT-HDBT-1020C-RX Asking for Assistance Technical Support: Phone: +49 5971 800299 - 0 Fax: +49 5971 800299 – 99 Technical Support Hours: 8:30 AM to 5:00 PM Monday thru Thursday 8:30 AM to 4:00 PM Friday Write to: PureLink GmbH Von-Liebig-Straße 10...
