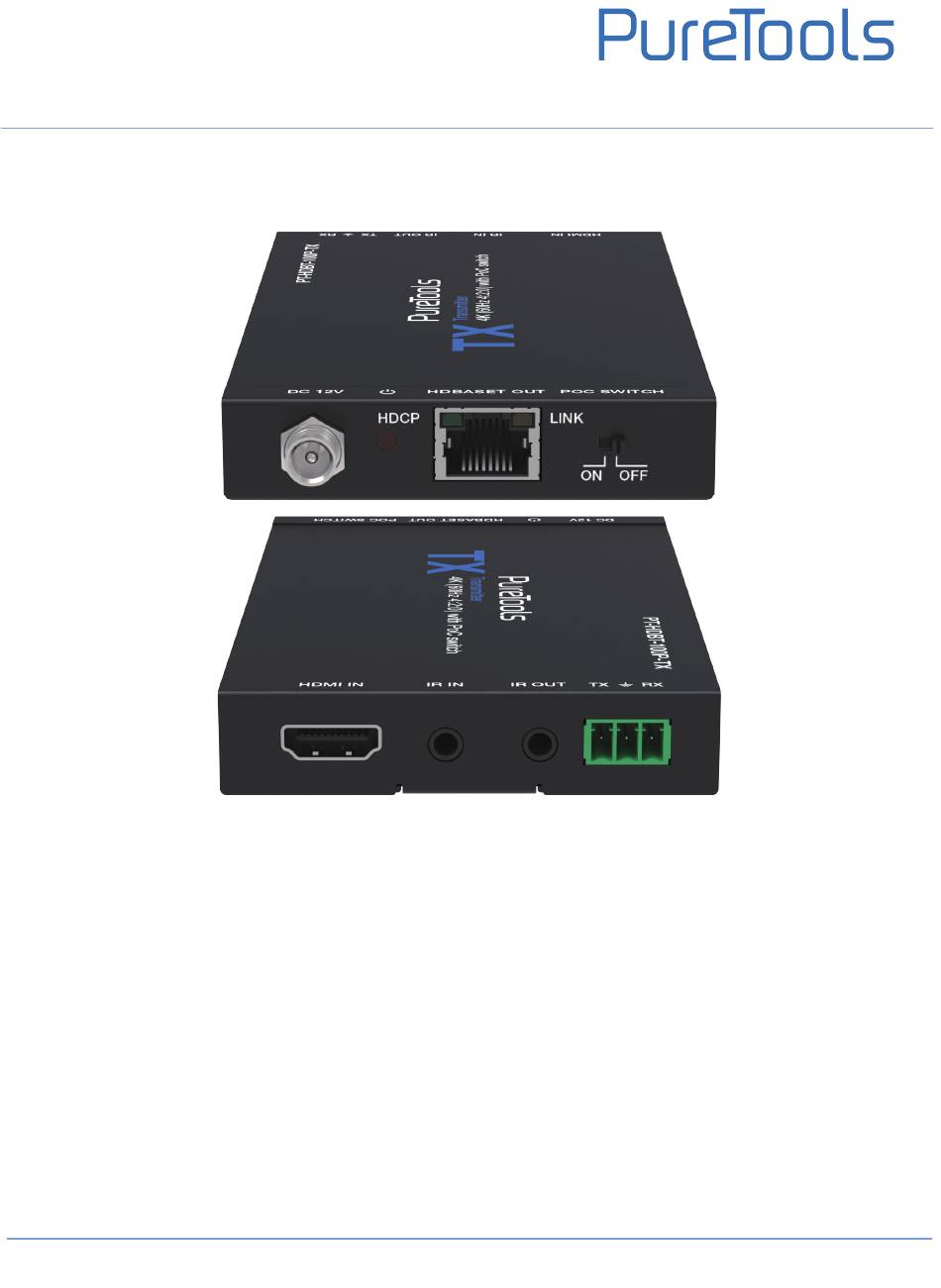

- Page 1 User Manual PT-HDBT-100P-TX User Manual HDBaseT Transmitter 4K (60Hz 4:2:0) with PoC switch PT- HDBT-100P-TX Model Designed in Germany VersionV1.0 © 2022 PureLink GmbH All rights reserved.
- Page 2 User Manual PT-HDBT-100P-TX Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only. Different model layouts and specifications are subject to the physical product. This manual is for operation instructions only, not for any maintenance usage.
- Page 3 PT-HDBT-100P-TX REACH | 1907/2006/EU ROHS | 2011/65/EU PureLink hereby declares that this product PureTools PT-HDBT-100P-TX complies with Directives 1907/2006/EU und 2011/65/EU. EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive) PureLink GmbH hereby declares that this product PureTools PT- HDBT-100P-TX complies with Directives 2014/30/EU and 2014/35/EU.
- Page 4 User Manual PT-HDBT-100P-TX SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material ...
-
Page 5: Table Of Contents
User Manual PT-HDBT-100P-TX Content 1. Product Introduction......................1.1 Introduction........................1.2 Features..........................1.3 Package List........................2. Panel Description......................... 3. Specification.......................... 4. IR Pin Definition........................5. System Diagram........................6. After-Sales Service......................Asking for Assistance....................... -
Page 6: Product Introduction
1.1 Introduction The PT-HDBT-100P-TX is an HDBaseT transmitter that can extend an HDMI signal up to 70 meters via a single Cat 5e/6 cable. The PT-HDBT-100P-TX also boasts a unique PoC on/off switch for increased compatibility. This feature, combined with RS-232 signal pass-through, makes it ideal for direct connection to HDBaseT equipped projectors. -
Page 7: Panel Description
User Manual PT-HDBT-100P-TX Note: Please contact your distributor immediately if any damage or defect in the components is found. 2. Panel Description HDMI IN IR IN IR OUT DC 12V HDBASET OUT POC SWITCH HDCP LINK Name Description HDMI In HDMI signal input port. -
Page 8: Specification
User Manual PT-HDBT-100P-TX 3. Specification Technical HDMI Compliance HDMI 1.4 HDCP Compliance HDCP 2.2 Bandwidth 10.2Gbps Video Resolutions Up to 4K×2K@30Hz 4:4:4 Transmission Mode HDBaseT Color Space YCbCr 4:2:0 Color Depth 8-bit (4K60Hz) Audio Formats LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD,... -
Page 9: Ir Pin Definition
User Manual PT-HDBT-100P-TX 4. IR Pin Definition Recommended IR Receiver and Blaster pin’s definition as below: IR RECEIVER IR BLASTER IR BLASTER IR RECEIVER IR Signal Griounding Power 12V Note: The frequency of the blaster and receiver component and the pin out of the... -
Page 10: System Diagram
User Manual PT-HDBT-100P-TX 5. System Diagram Usage Precaution • Make sure all components and accessories included before installation. • System should be installed in a clean environment with proper temperature and humidity. • All of the power switches, plugs, sockets, and power cords should be insulated and safe. - Page 11 User Manual PT-HDBT-100P-TX ※ Application 1 Projector with RS-232 control Example (PoC OFF) DC 12V 1A CAT5e/6 RS-232 Cable DC 12V 1A ※ Application 2 Bidirectional IR control Example (PoC ON ) CAT5e/6 ※ Application 3 Bidirectional RS-232 control Example...
-
Page 12: After-Sales Service
User Manual PT-HDBT-100P-TX 6. After-Sales Service If there appear some problems when running the product, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty. Product Limited Warranty: This product will be free from defects in materials and workmanship for three years(The purchase invoice shall prevail). -
Page 13: Asking For Assistance
User Manual PT-HDBT-100P-TX Asking for Assistance Technical Support: Phone: +49 5971 800299 Fax: +49 5971 800299 Technical Support Hours: 8:30 AM to 5:00 PM Monday thru Thursday 8:30 AM to 4:00 PM Friday Write to: PureLink GmbH Von-Liebig-Straße 10 D - 48432 Rheine www.purelink.de...
