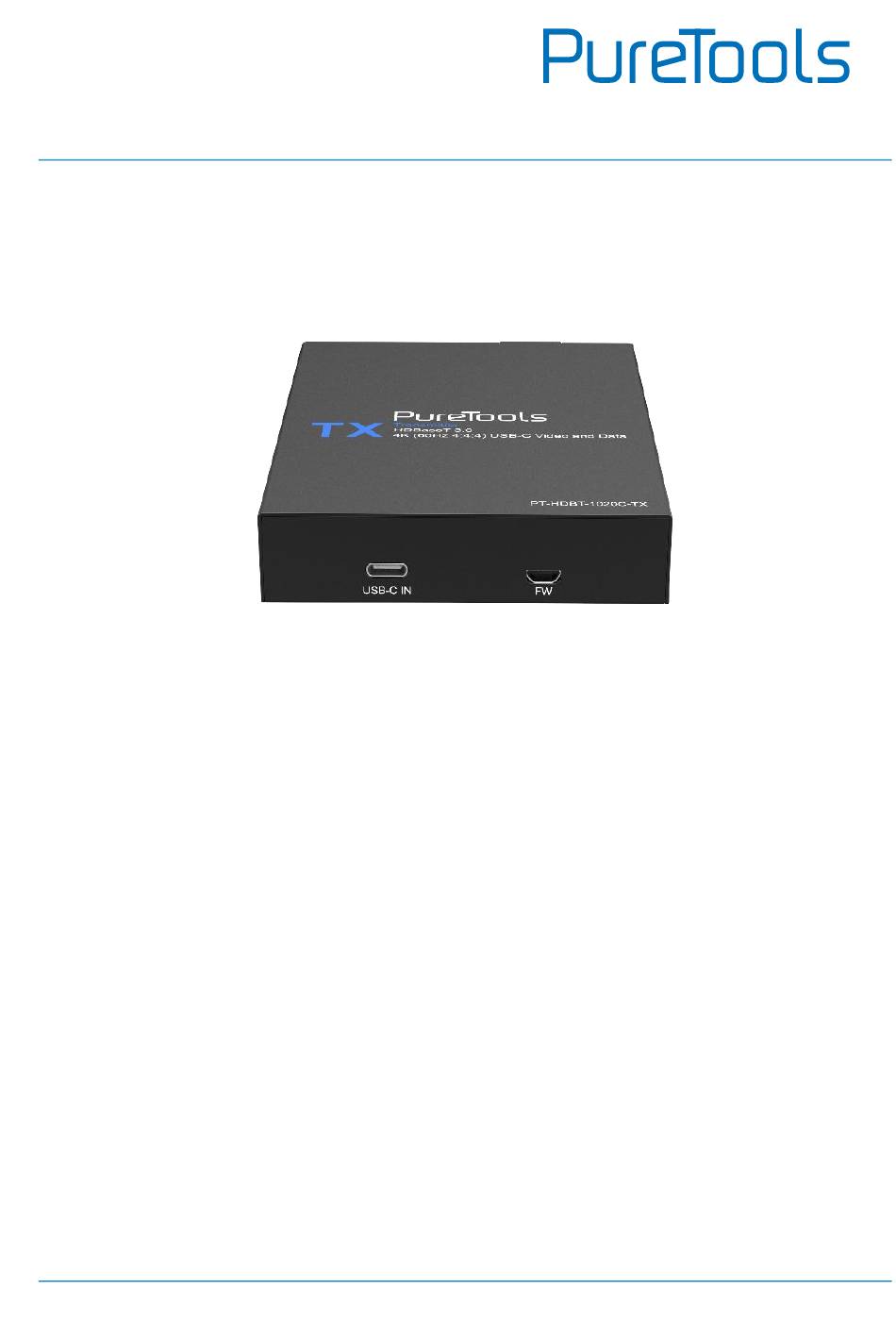

- Page 1 User Manual PT-HDBT-1020C-TX User Manual HDBaseT 3.0 USB-C Video and data Transmitter Model PT-HDBT-1020C-TX Designed in Germany © 2022 PureLink GmbH All rights reserved. VersionV1.0...
-
Page 2: Fcc Statement
User Manual PT-HDBT-1020C-TX Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only. Different model layouts and specifications are subject to the physical product. This manual is for operation instructions only, not for any maintenance usage. - Page 3 PT-HDBT-1020C-TX REACH | 1907/2006/EU ROHS | 2011/65/EU PureLink hereby declares that this product PureTools PT-HDBT-1020C-TX complies with Directives 1907/2006/EU und 2011/65/EU. EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive) PureLink GmbH hereby declares that this product PureTools PT-HDBT-1020C-TX complies with Directives 2014/30/EU and 2014/35/EU.
- Page 4 User Manual PT-HDBT-1020C-TX SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material ⚫...
-
Page 5: Product Introduction
1.Product Introduction 1.1 Introduction The PT-HDBT-1020C-TX is an uncompressed 18G HDBaseT3.0 transmitter that allows 1 USB-C input signal to be transmitted over distances up to 100m at 4K@60Hz/ 1080p@60Hz via CAT6A cable. The transmitter features one USB-C input and one HDBT output. -
Page 6: Panel Description
User Manual PT-HDBT-1020C-TX 2. Panel Description Name Description USB-C IN Connects to the Macbook or other device with SlimPort output. ① Micro-USB for firmware upgrade ② HDBT OUT RJ45 port to connect the HDBT input port of receiver by CAT6A ③... -
Page 7: Specification
User Manual PT-HDBT-1020C-TX 3. Specification Transmitter Video Input (1)USB-C IN Input Connector (1) Type-C Input Resolution Up to 4K@60Hz 4:4:4 Output (1) HDBT OUT Output Connector (1) RJ45 Output Resolution Up to 4K@60Hz 4:4:4 General HDCP Version Input: HDCP 2.2, HDCP 1.4 compliant... -
Page 8: System Diagram
User Manual PT-HDBT-1020C-TX 4. System Diagram The following diagram illustrates typical input and output connections that can be utilized with the KVM extener. -
Page 9: After Sales Service
User Manual PT-HDBT-1020C-TX 5. After-Sales Service If there appear some problems when running the product, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: This product will be free from defects in materials and workmanship for three years (The purchase invoice shall prevail). - Page 10 User Manual PT-HDBT-1020C-TX...
-
Page 11: Asking For Assistance
User Manual PT-HDBT-1020C-TX Asking for Assistance Technical Support: Phone: +49 5971 800299 - 0 Fax: +49 5971 800299 – 99 Technical Support Hours: 8:30 AM to 5:00 PM Monday thru Thursday 8:30 AM to 4:00 PM Friday Write to: PureLink GmbH Von-Liebig-Straße 10...
