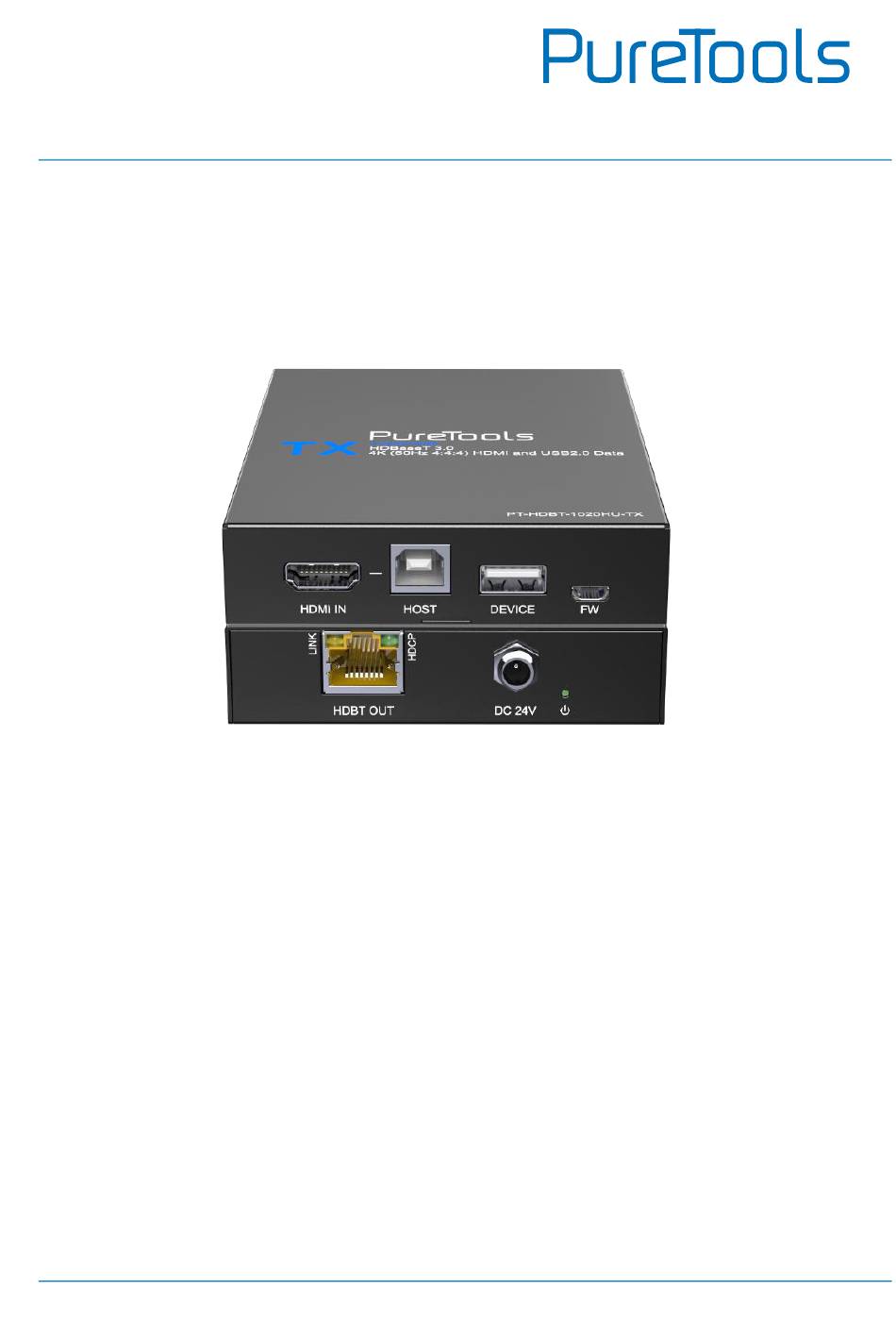

- Page 1 User Manual PT-HDBT-1020HU-TX User Manual HDBaseT 3.0 4K (60Hz 4:4:4) HDMI and USB2.0 Data Transmitter Model PT-HDBT-1020HU-TX Designed in Germany © 2022 PureLink GmbH All rights reserved. VersionV1.0...
-
Page 2: Fcc Statement
User Manual PT-HDBT-1020HU-TX Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only. Different model layouts and specifications are subject to the physical product. This manual is for operation instructions only, not for any maintenance usage. - Page 3 PT-HDBT-1020HU-TX REACH | 1907/2006/EU ROHS | 2011/65/EU PureLink hereby declares that this product PureTools PT-HDBT-1020HU-TX complies with Directives 1907/2006/EU und 2011/65/EU. EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive) PureLink GmbH hereby declares that this product PureTools PT-HDBT-1020HU-TX complies with Directives 2014/30/EU and 2014/35/EU.
- Page 4 User Manual PT-HDBT-1020HU-TX SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material ⚫...
-
Page 5: Product Introduction
PT-HDBT-1020HU-TX 1.Product Introduction 1.1 Introduction The PT-HDBT-1020HU-TX is a professional extender transmitter over HDBaseT3.0. The transmitter includes 1 HDMI&HOST input and 1 HDBaseT output which supports HDBaseT 3.0, together with a USB-A for device. It can transmit 4K@60Hz 4:4:4 video signal via CAT6 cable up to 100m. -
Page 6: Panel Description
User Manual PT-HDBT-1020HU-TX 2. Panel Description Name Description HDMI IN Type-A female HDMI input port to connect HDMI source device. ① HOST Type-B USB port to connect PC ② DEVICE Type-A USB port to connect peripherals ③ 1 x Micro-USB for firmware upgrade ④... -
Page 7: Specification
User Manual PT-HDBT-1020HU-TX 3. Specification Transmitter Video Input (1) HDMI IN, (1) HOST, (1) DEVICE Input Connector (1) HDMI Type-A, (1) USB-B, (1) USB-A Input Resolution Up to 4K@60Hz 4:4:4 Output (1) HDBT OUT Output Connector (1) RJ45 Output Resolution... -
Page 8: System Diagram
User Manual PT-HDBT-1020HU-TX 4. System Diagram The following diagram illustrates typical input and output connections that can be utilized with the KVM extender. Noted: Maximum 4 USB devices connected in the whole system. -
Page 9: After Sales Service
User Manual PT-HDBT-1020HU-TX 5. After-Sales Service If there appear some problems when running the product, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: This product will be free from defects in materials and workmanship for three years (The purchase invoice shall prevail). - Page 10 User Manual PT-HDBT-1020HU-TX...
-
Page 11: Asking For Assistance
User Manual PT-HDBT-1020HU-TX Asking for Assistance Technical Support: Phone: +49 5971 800299 - 0 Fax: +49 5971 800299 – 99 Technical Support Hours: 8:30 AM to 5:00 PM Monday thru Thursday 8:30 AM to 4:00 PM Friday Write to: PureLink GmbH Von-Liebig-Straße 10...
