- Page 1 User Manual PT-HDBT-702-TX User Manual HDBaseT Transmitter 4K (60Hz 4:2:0) with IR and RS232 Model PT-HDBT-702-TX Designed in Germany © 2017 PureLink GmbH All rights reserved. VersionV1.0...
-
Page 2: Fcc Statement
User Manual PT-HDBT-702-TX Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only. Different model layouts and specifications are subject to the physical product. This manual is for operation instructions only, not for any maintenance usage. - Page 3 PT-HDBT-702-TX REACH | 1907/2006/EU ROHS | 2011/65/EU PureLink hereby declares that this product PureTools PT-HDBT-702-TX complies with Directives 1907/2006/EU und 2011/65/EU. EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive) PureLink GmbH hereby declares that this product PureTools PT-HDBT-702-TX complies with Directives 2014/30/EU and 2014/35/EU.
-
Page 4: Safety Precautions
User Manual PT-HDBT-702-TX SAFETY PRECAUTIONS To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material ... -
Page 5: Package Content
User Manual PT-HDBT-702-TX Introduction to PT-HDBT-702-TX The PT-HDBT-702-TX is a mini-size HDBaseT Transmitter to extend HDMI signal to HDBaseT Receiver via CAT5e/CAT6a cable. HDBaseT technology is used to transmit high-resolution 1080p/ 4k signal from PT-HDBT-702-TX to the receiver via a CAT5e/CAT6a cable at a distance of up to 70/40m. -
Page 6: Panel Description

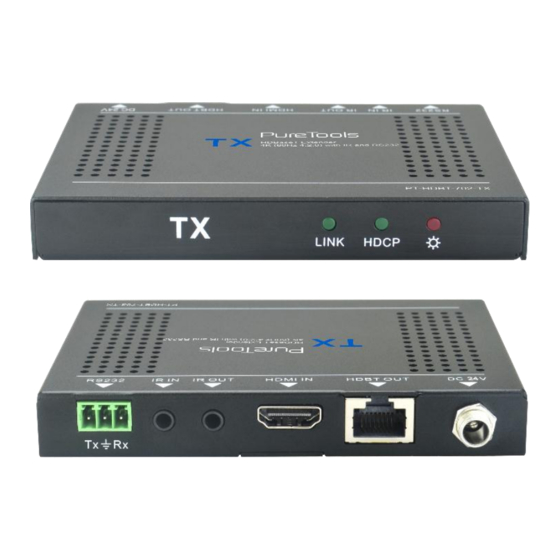

User Manual PT-HDBT-702-TX Panel Description Name Description HDBT Link status indicator: OFF: No Link LINK ① GREEN:Link Successful Blinking GREEN: Link abnormal HDCP compliant indicator OFF: No HDMI traffic (no picture) HDCP ② GREEN: Traffic with HDCP. -
Page 7: Specification
User Manual PT-HDBT-702-TX Specification Input & Output Input HDMI, IR & RS232 HDMI female, 3.5mm mini jack, 3p captive screw Input Connector connector Output HDBT, IR, RS232 Output Connector RJ-45, 3.5mm mini jack, 3p captive screw connector General Resolution Range 640x480@60Hz~4K×2K@30Hz... -
Page 8: System Diagram
User Manual PT-HDBT-702-TX System Diagram HDMI: 4K 40m RS232: HDBaseT: 1080P 70m PT-HDBT-702-TX PT-HDBT-702-RX IR Receiver IR Emitter Projector Remote Laptop Projector... -
Page 9: After Sales Service
User Manual PT-HDBT-702-TX After-Sales Service If there appear some problems when running the product, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: This product will be free from defects in materials and workmanship for two years (The purchase invoice shall prevail). - Page 10 User Manual PT-HDBT-702-TX...
- Page 11 User Manual PT-HDBT-702-TX...
-
Page 12: Asking For Assistance
User Manual PT-HDBT-702-TX Asking for Assistance Technical Support: Phone: +49 5971 800299 - 0 Fax: +49 5971 800299 – 99 Technical Support Hours: 8:30 AM to 5:00 PM Monday thru Thursday 8:30 AM to 4:00 PM Friday Write to: PureLink GmbH Von-Liebig-Straße 10...
