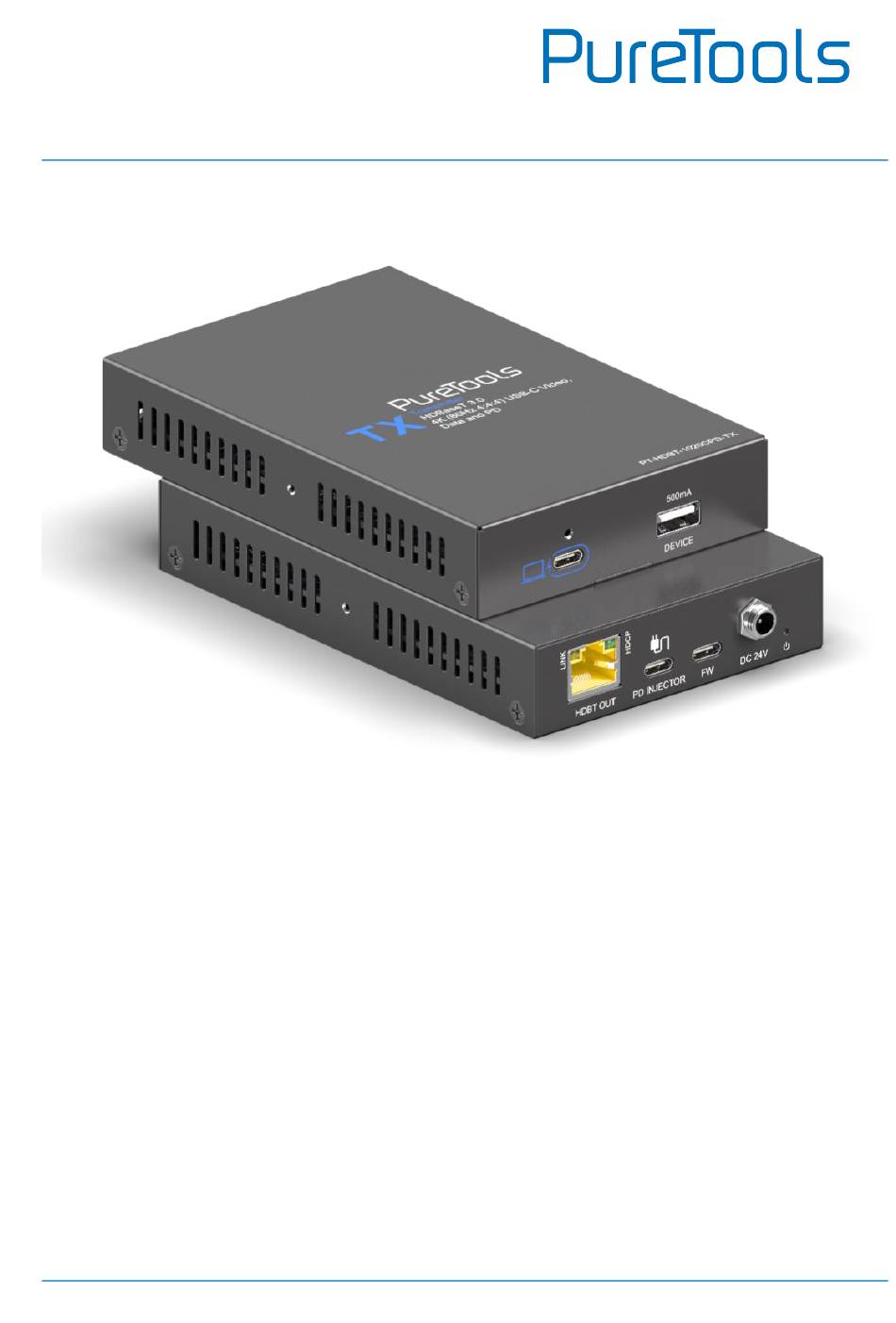

- Page 1 User Manual PT-HDBT-1020CPD-TX User Manual HDBaseT 3.0 4K (60Hz 4:4:4) USB-C Video, Data and PD Model PT-HDBT-1020CPD-TX Designed in Germany © 2024 PureLink GmbH All rights reserved. VersionV1.1...
-
Page 2: Fcc Statement
User Manual PT-HDBT-1020CPD-TX Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only. Different model layouts and specifications are subject to the physical product. This manual is for operation instructions only, not for any maintenance usage. - Page 3 Directives 1907/2006/EU und 2011/65/EU. EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive) PureLink GmbH hereby declares that this product PureTools PT-HDBT-1020CPD-TX complies with Directives 2014/30/EU and 2014/35/EU. The full text of the EU Declaration of Conformity is available at the following Internet address:...
- Page 4 User Manual PT-HDBT-1020CPD-TX SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material ...
-
Page 5: Product Introduction
1.Product Introduction 1.1 Introduction The PT-HDBT-1020CPD-TX is a USB-C KVM Extender transmitter. The transmitter features one USB-C input and one HDBaseT3.0 output. For the USB-C input, it provides ideal interface for connecting to any modern laptop or USB-C video and data source. -
Page 6: Panel Description
User Manual PT-HDBT-1020CPD-TX 2. Panel Description Name Description Input source, connects to any modern laptop or USB-C video USB-C IN and data source. DEVICE USB 2.0 Ports for connecting device. 1 x RJ45 connector. Connects to the receiver over CATx cables. -
Page 7: Specification
User Manual PT-HDBT-1020CPD-TX 3. Specification Transmitter Video Input (1) USB-C IN (1) DEVICE Input Connector (1) USB Type-C, (1) USB-A Input Resolution Up to 4K@60Hz 4:4:4 Output (1) HDBaseT OUT Output Connector (1) RJ45 Output Resolution Up to 4K@60Hz 4:4:4... -
Page 8: System Diagram
User Manual PT-HDBT-1020CPD-TX 4. System Diagram The following diagram illustrates typical input and output connections that can be utilized with the KVM extender. -
Page 9: Supported Resolution
User Manual PT-HDBT-1020CPD-TX 5. Supported Resolution The resolution of input is supports up to 4K@60Hz 4:4:4, the tested resolutions are as follow: 4096x2160@60Hz RGB 8bit 3840x2160@60Hz RGB 8bit 3840x2160@60Hz 4:4:4 8bit 3840x2160@60Hz RGB 10bit 3840x2160@60Hz 4:2:0 10bit 3840x2160@60Hz 4:2:0 8bit... -
Page 10: After Sales Service
User Manual PT-HDBT-1020CPD-TX 6. After-Sales Service If there appear some problems when running the product, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: This product will be free from defects in materials and workmanship for three years (The purchase invoice shall prevail). - Page 11 User Manual PT-HDBT-1020CPD-TX...
-
Page 12: Asking For Assistance
User Manual PT-HDBT-1020CPD-TX Asking for Assistance Technical Support: Phone: +49 5971 800299 - 0 Fax: +49 5971 800299 – 99 Technical Support Hours: 8:30 AM to 5:00 PM Monday thru Thursday 8:30 AM to 4:00 PM Friday Write to: PureLink GmbH Von-Liebig-Straße 10...
