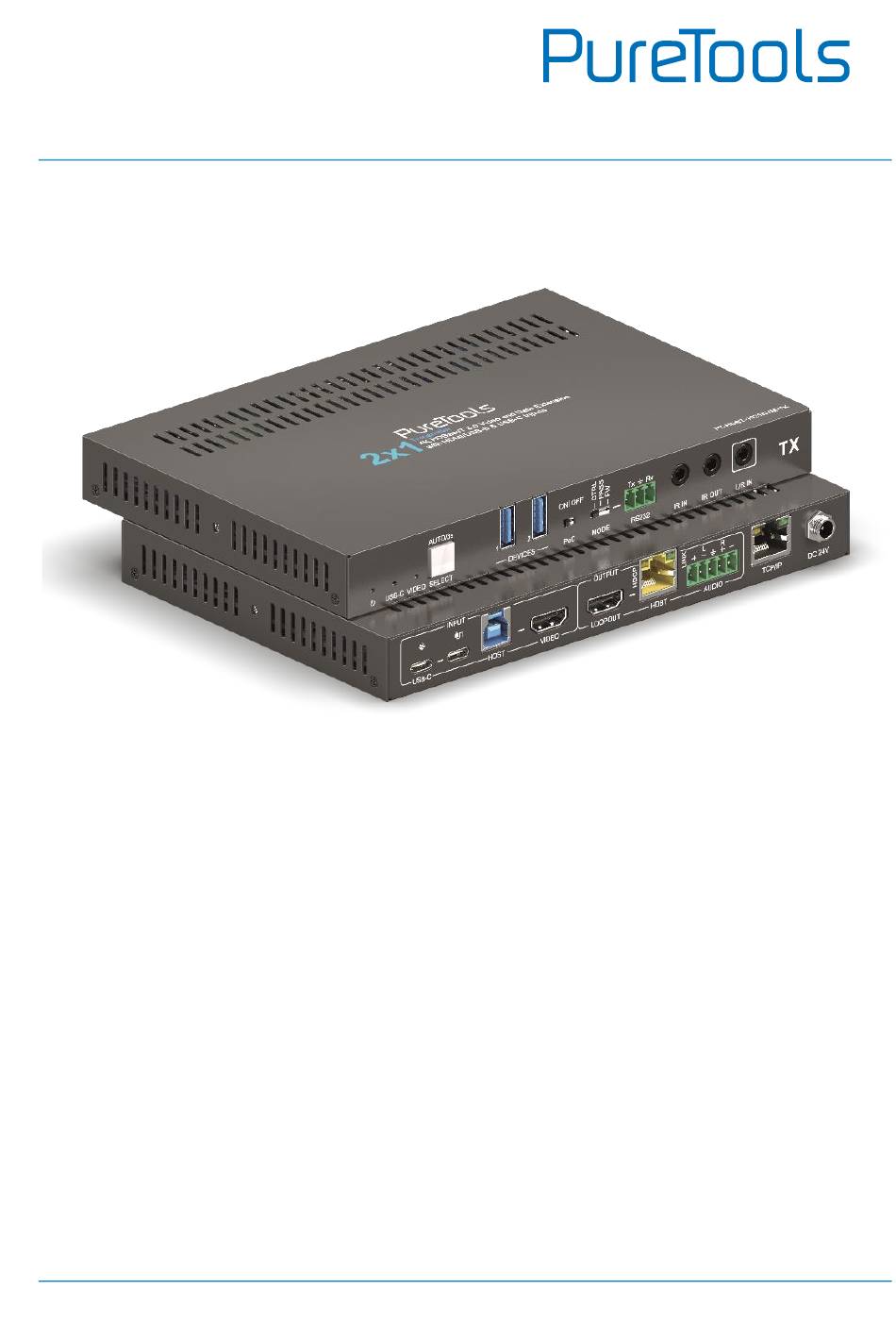

- Page 1 User Manual PT-HDBT-1021KVM-TX User Manual 2x1 18G KVM Transmitter over HDBaseT 3.0 Model PT-HDBT-1021KVM-TX Designed in Germany © 10.12.2024 PureLink GmbH All rights reserved. VersionV1.0...
-
Page 2: Fcc Statement
User Manual PT-HDBT-1021KVM-TX Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only. Different model layouts and specifications are subject to the physical product. This manual is for operation instructions only, not for any maintenance usage. - Page 3 Directives 1907/2006/EU und 2011/65/EU. EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive) PureLink GmbH hereby declares that this product PureTools PT-HDBT-1021KVM-TX complies with Directives 2014/30/EU and 2014/35/EU. The full text of the EU Declaration of Conformity is available at the following Internet address:...
-
Page 4: Safety Precautions
User Manual PT-HDBT-1021KVM-TX SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material ⚫... -
Page 5: Product Introduction
PT-HDBT-1021KVM-TX Product Introduction Thanks for choosing PT-HDBT-1021KVM-TX; a 2x1 18G KVM transmitter over HDBaseT V3. With an appropriate receiver (from the PureLink 1020 series or other compatible RX) connected to the this product, video signals can be transmitted up to 40m at 4K 60Hz and 70m at 4K 30Hz via a CAT6A cable. -
Page 6: Panel Description
User Manual PT-HDBT-1021KVM-TX Panel Description Front Panel Name Description POWER LED Illuminates green when power is applied. ① USB-C LED Illuminates when USB-C is selected to be the video ② input source. VIDEO LED Illuminates when HDMI (VIDEO port) is selected to be ③... - Page 7 User Manual PT-HDBT-1021KVM-TX Rear Panel Name Description USB Type-C with charging capability to connect the ① USB-C IN source device. Power USB Type-C connect to external PD PSU to charge USB- ② C IN. HOST USB3.2 Gen1 Type-B port for PC connection. The PC ③...
-
Page 8: Specification
User Manual PT-HDBT-1021KVM-TX Specification Video Input 1x HDMI IN, 1x USB-C Input Connector 1x Type-A female HDMI, 1x USB Type-C Input Resolution Both HDMI and USB-C support up to 4K@60Hz 4:4:4 Output 1x HDBT OUT, 1x LOOPOUT Output Connector 1x RJ45, 1x Type-A female HDMI... - Page 9 User Manual PT-HDBT-1021KVM-TX General Bandwidth 18Gbps HDMI Standard Input: HDCP 2.2, HDCP 1.4 compliant. HDCP Version Support HDCP management. Two-way PoC Supported two-way 24V HDMI V2.0 Cable Length 4K@60Hz 4:4:4 ≤ 5m, 4K@30Hz 4:4:4 ≤ 10m, 1080P ≤ 15m Transmission Standard...
-
Page 10: System Diagram
User Manual PT-HDBT-1021KVM-TX System Diagram... -
Page 11: Button Control
User Manual PT-HDBT-1021KVM-TX Button Control Manual Switching When the extender is in the manual switching mode, press the SELECT AUTO/3s button repeatedly to cycle through the two video inputs, and the corresponding source LED illuminates blue immediately. Automatic Switching Press and hold the SELECT AUTO/3s button at least 3 seconds to enable automatic switching. -
Page 12: Gui Control
User Manual PT-HDBT-1021KVM-TX GUI Control Login The extender also be controlled via TCP/IP. The default IP settings are: IP Address: 192.168.0.178 Subnet Mask: 255.255.255.0 Gateway: 192.168.0.1 Telnet Port: 4001 Type 192.168.0.178 in the internet browser, it will enter the below log-in webpage:... - Page 13 User Manual PT-HDBT-1021KVM-TX Control Tab Selection of Video Input Source Select a video input source from either USB-C or Video (HDMI port). USB-C: Select the video input source as USB-C. Video (HDMI port): Select the video input source as Video.
-
Page 14: Configuration Tab
User Manual PT-HDBT-1021KVM-TX Configuration Tab EDID Settings Choose the desired EDID format or define the appropriate EDID format. Pass Through: Tx ⚫ Retrieve the EDID of the screen connected to the VIDEO port on the TX, then provide it to the video source. This will ensure that the image on the screen connected to the RX is adjusted to match the screen connected to the TX. - Page 15 User Manual PT-HDBT-1021KVM-TX HDCP Settings Select an HDCP mode. Auto Downscale Enable: When the resolution of the display is lower than video input source, the resolution will automatically be downscaled to 1080p. This feature enables the screen to at least show a relative low-resolution image instead of a blank screen.
- Page 16 User Manual PT-HDBT-1021KVM-TX Display The page help to render the display connects to the Rx to turn on/off when the Tx is turned on/off. Devices Power Follow Host: Whether or not the devices connected to the DEVICES ports would get power depends on the ON/OFF state of the device connected to the HOST port.
- Page 17 User Manual PT-HDBT-1021KVM-TX CEC Tab If the input source devices and HDBaseT output devices support CEC, they can be controlled by the following CEC interface. 1) Input Source Device Control Select the input source from USB-C or Video that need to be controlled, then press the function button at the right side.
- Page 18 Command Ending: NULL, CR, LF or CR+LF can be chosen. Command: Type the command in the box to control the third-party device which is connected to the RS232 port of the PT-HDBT-1021KVM-TX. Network Tab Toggle either Static IP or DHCP (Dynamic Host Configuration Protocol).
- Page 19 User Manual PT-HDBT-1021KVM-TX Security Tab In this tab, you can change the login password, upgrade the firmware, lock the Front Panel and factory reset the device. Password: Modify the GUI login password; ⚫ Choose the firmware upgrade file and click confirm to upgrade the firmware;...
-
Page 20: Rs232 Control Software
User Manual PT-HDBT-1021KVM-TX RS232 Control RS232 Control Software Connect the RS232 port to control device (e.g. PC) with RS232 cable. The switcher can be controlled by sending RS232 commands. Here take the software docklight as an example. Installation ⚫ Please download the latest Software Version from the link below: https://docklight.de/download/Docklight.zip... - Page 21 User Manual PT-HDBT-1021KVM-TX The next pop-up window can also be closed with "Continue". An empty project is enough to send and receive commands easily (The default setting is always “Start with a blank project / blank script “) Click “Continue” to close this window.
- Page 22 User Manual PT-HDBT-1021KVM-TX Double click on “COM1” to change to the right COM port. In the following window, select the drop-down menu labeled "Send / Receive on Comm Channel", select the appropriate COM port and then click on "OK" at the bottom right corner.
- Page 23 User Manual PT-HDBT-1021KVM-TX In order to being able to send commands, open communication with the device by clicking on "Play". (1) Then the keyboard function must be activated, so that commands can be written in the "communication window". (2) Finally enter the command, for example "50701%". This is then confirmed by...
- Page 24 User Manual PT-HDBT-1021KVM-TX RS232 Command Communication protocol: RS232 Communication Protocol Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none Command Example and Command Description Feedback PT-HDBT-1021KVM-TX 2x1 18G KVM Extender over HDBaseT 3.0 FW Version: V1.0.0a Power On!
- Page 25 User Manual PT-HDBT-1021KVM-TX POWON. Power on system. Power On! POWOFF. System standby. Power Off! Select X as the video input source. HDMI[X]. HDMI Out Switch To 01! [X] can be 1-2. HDMI Out Switch Auto HDMIA. Enable Auto-Switch Mode. Mode! HDMI Out Switch Manual HDMIM.
- Page 26 User Manual PT-HDBT-1021KVM-TX 07:3840x2160@60Hz 4:2:0 Deep Color Stereo Audio 08:3840x2160@60Hz Deep Color Stereo Audio 09:3840x2160@60Hz Deep Color High Definition Audio 10:3840x2160@60Hz Deep Color HDR LPCM 6CH 11: User-defined EDID1 12: User-defined EDID2 13: User-defined EDID3 14: User-defined EDID4 The serial port upgrades EDID data.
- Page 27 User Manual PT-HDBT-1021KVM-TX HDBaseT must be disconnected before sending the instruction). LOCK. Lock front panel buttons. Front Panel Locked! UNLOCK. Unlock front panel buttons. Front Panel Unlock! Set the power mode: Set Device Power Mode To XX = 00-01 Follow Host! SetDevicePowerMode[XX].
- Page 28 User Manual PT-HDBT-1021KVM-TX O: means the command will be sent Feedback: CEC Output 01 to video output port, which are Send Success! LOOPOUT (HDMI port) and the HDBT. [port]: specify the exact port of input/output to pass the command. When [I/O] is set to I, check the...
- Page 29 User Manual PT-HDBT-1021KVM-TX If the input has HDCP 2.2, the output will also have HDCP 2.2. If the input has HDCP 1.4, the output will have HDCP 1.4. If the input does not have HDCP, the output will not either.
-
Page 30: Troubleshooting And Maintenance
User Manual PT-HDBT-1021KVM-TX Troubleshooting & Maintenance Problems Potential Causes Solutions Bad quality of the Try another high-quality connecting cable. cable. Output image with snowflake Make sure the connection Fail or loose connection. is good Check with oscilloscope No signal at the input / or multimeter if there is output end. -
Page 31: After Sales Service
User Manual PT-HDBT-1021KVM-TX After-Sales Service If there appear some problems when running the product, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: This product will be free from defects in materials and workmanship for two years (The purchase invoice shall prevail). -
Page 32: Asking For Assistance
User Manual PT-HDBT-1021KVM-TX Asking for Assistance Technical Support: Phone: +49 5971 800299 - 0 Fax: +49 5971 800299 – 99 Technical Support Hours: 8:30 AM to 5:00 PM Monday thru Thursday 8:30 AM to 4:00 PM Friday Write to: PureLink GmbH Von-Liebig-Straße 10...
