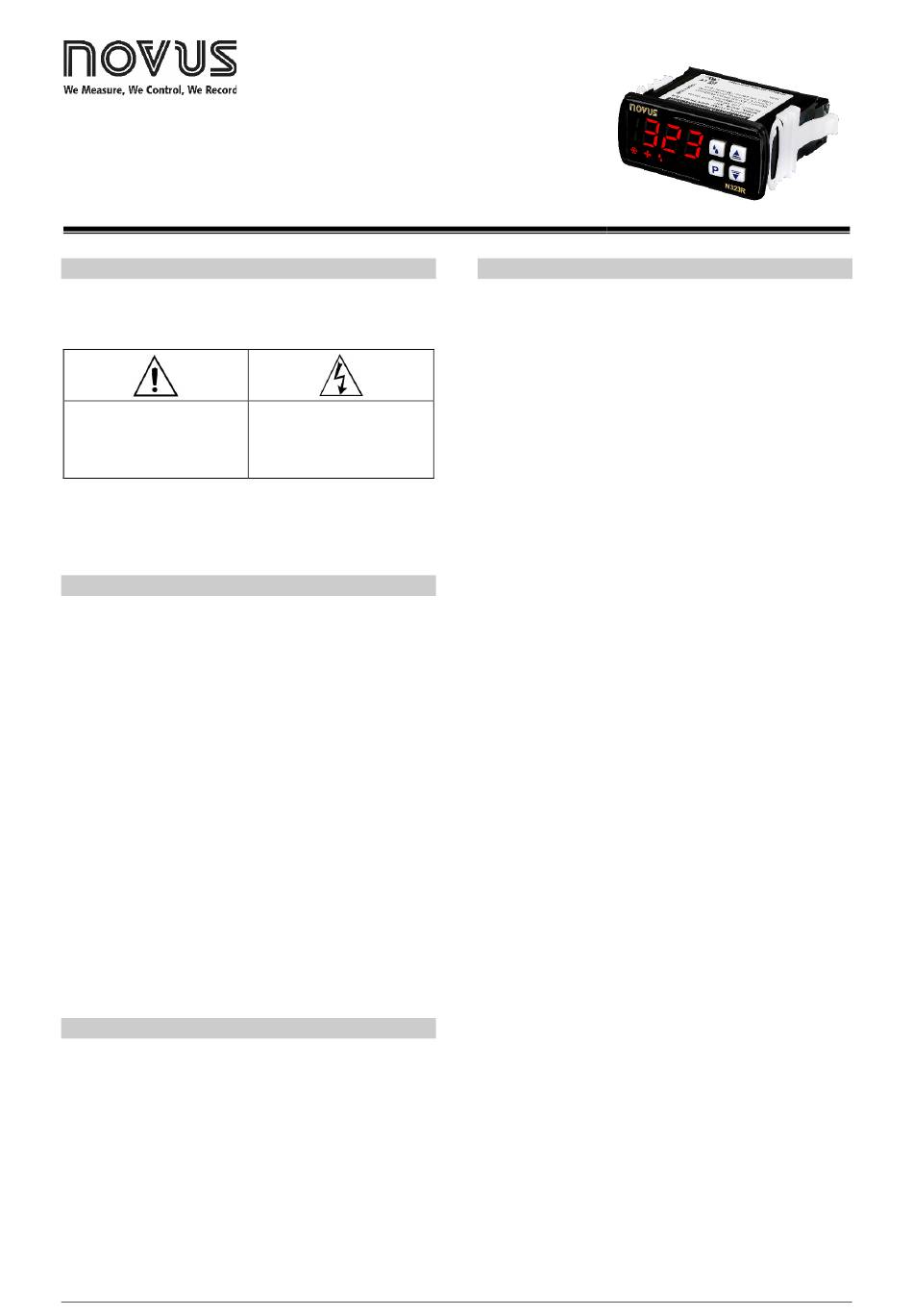

N323R
TEMPERATURE CONTROLLER – USER GUIDE – V1.8x M
1. SAFETY ALERTS
The following symbols are used on the equipment and throughout this
manual to draw the user's attention to important information related to
the safety and use of the equipment.
CAUTION:
Read the manual completely
before installing and operating the
equipment.
All safety recommendations appearing in this manual must be followed
to ensure personal safety and prevent damage to the instrument or
system. If the instrument is used in a manner other than that specified
in this manual, the device safety protections may not be effective.
2. SUMMARY
1. SAFETY ALERTS ........................................................................ 1
2. SUMMARY .................................................................................. 1
3. INTRODUCTION ......................................................................... 1
4. SPECIFICATIONS ....................................................................... 1
5. ELECTRICAL CONNECTIONS ................................................... 2
5.1 INSTALLATION RECOMMENDATIONS .............................. 2
6. OPERATION................................................................................ 2
6.1 LEVEL 1 – SETPOINT ADJUSTMENT LEVEL ................... 2
6.2 LEVEL 2 – OPERATION LEVEL ......................................... 2
6.3 LEVEL 3 – CALIBRATION LEVEL ...................................... 3
7. WORKING WITH THE CONTROLLER ....................................... 4
7.1. DEFROST PROCESS .......................................................... 4
8. CONFIGURATION PROTECTION .............................................. 4
9. MASTER PASSWORD ................................................................ 4
9.1 HOW TO USE YOUR MASTER PASSWORD ..................... 4
10. ERROR INDICATION .................................................................. 5
11. WARRANTY ................................................................................ 5
3. INTRODUCTION
N323R is a temperature controller suitable for refrigeration. It has
functions specially designed for temperature control and defrost
optimization applications.
The equipment has two input channels for temperature sensors (NTC
thermistor type) that measure the temperature of the monitored
environment and the evaporator module. In addition, it has three
independent outputs for controlling the compressor (refrigeration
output), the defrost module and the fan.
The features of each controller are identified on the identification
label, attached to the equipment, and are in accordance with the
purchase order.
NOVUS AUTOMATION
CAUTION OR HAZARD:
Risk of electric shock.
4. SPECIFICATIONS
PROBE INPUT:
2 Thermistor NTC
Type 10 kΩ @ 25 °C
Range: -50 to 120 °C (-58 to 248°F)
Accuracy: 0.6 °C (1.1 °F)
Note: The sensors come with the equipment.
Its operating range is limited to -30 to +105 °C (–222 to +221 °F). It
has cable of 3 m in length, 2 x 0.5 mm², and can be extended up to
200 meters.
Maximum error in the interchangeability of original NTC sensors:
0.75 °C (33.35 °F). This error can be eliminated through the Offset
parameter of the equipment.
Measurement resolution: ........................... 0,1° from -19.9 to 119.9°
......................................................................................... 1° elsewhere
Note: The equipment keeps its precision all over the range, despite
the lack of display resolution in a part of the range does not allow its
visualization.
OUTPUT1:
Relay SPDT; 1 HP 250 Vac / 1/3 HP 125 Vac (16 A Resistive)
Optionally: Pulse, 5 Vdc, 25 mA max.
OUTPUT2:
Relay SPST-NO, 3 A / 250 Vac
OUTPUT3:
SPST-NO, 3 A / 250 Vac
POWER SUPPLY:
Voltage: 100 to 240 Vac/dc ±10 %
Optionally: 24 V (12 to 30 Vdc)
Mains frequency: 50~60 Hz
Power consumption: 5 VA
DIMENSIONS:
Width x Height x Depth: 75 x 33 x 75 mm
Panel cut-out: 70 x 29 mm
Weight: 100 g
ENVIRONMENT:
Operating temperature: 0 to 40 °C (32 to 104 °F)
Storage temperature: -20 to 60 °C (-4 to 140 °F)
Relative humidity: 20 to 85 %RH
Protection: Front panel: IP65, Box: IP42.
RS485 digital communication, RTU MODBUS protocol (optional).
Serial interface not isolated from input circuitry.
Serial interface isolated from input circuitry, except in 24 V
Housing: Polycarbonate UL94 V-2.
Suitable wiring: Up to 4.0 mm².
powered model.
