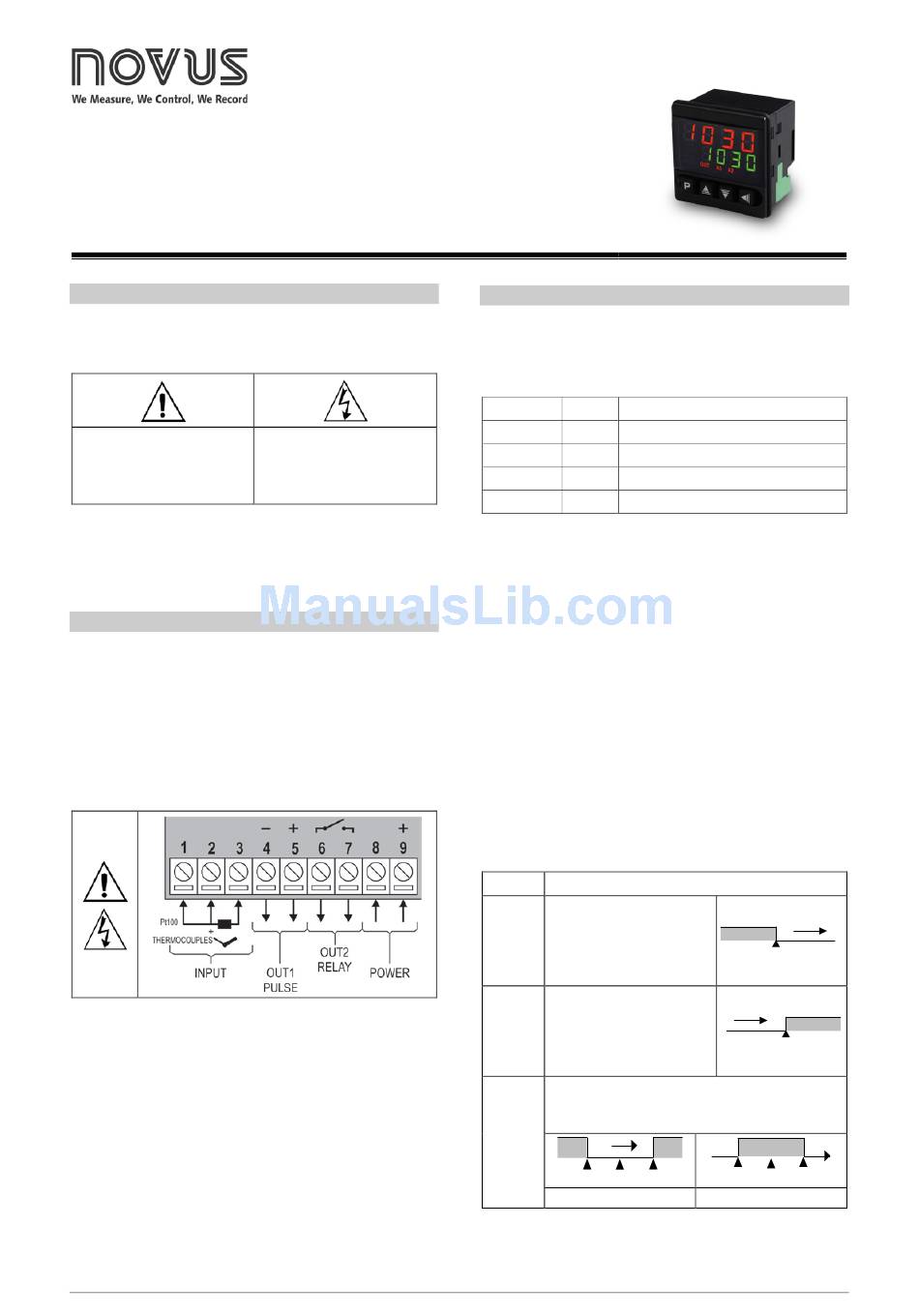

Novus N1030 Instruction Manual

N1030 Controller
TEMPERATURE CONTROLLER – INSTRUCTIONS MANUAL – V1.0x A

SAFETY ALERTS

The symbols below are used on the equipment and throughout this
document to draw the user's attention to important operational and
safety information.
CAUTION:
Read the manual thoroughly
before installing and operating
the equipment.
All safety related instructions that appear in the manual must be
observed to ensure personal safety and to prevent damage to either
the instrument or the system. If the instrument is used in a manner not
specified by the manufacturer, the protection provided by the
equipment may be impaired.
INSTALLATION / CONECTIONS
The controller must be fastened on a panel, following the sequence
of steps described below:
• Prepare a panel cut-out of 46 x 46 mm;
• Remove the mounting clamps from the controller;
• Insert the controller into the panel cut-out;
• Slide the mounting clamp from the rear to a firm grip at the panel.

ELECTRICAL CONNECTIONS

Fig. 01 below shows the electrical terminals of the controller:
Fig. 01 - Connections of the back panel

RECOMMENDATIONS FOR THE INSTALLATION

• All electrical connections are made to the screw terminals at the
rear of the controller.
• To minimize the pick-up of electrical noise, the low voltage DC
connections and the sensor input wiring should be routed away
from high-current power conductors. If this is impractical, use
shielded cables. In general, keep cable lengths to a minimum.
• All electronic instruments must be powered by a clean mains
supply, proper for instrumentation.
• It is strongly recommended to apply RC'S FILTERS (noise
suppressor) to contactor coils, solenoids, etc. In any application it
is essential to consider what can happen when any part of the
system fails. The controller features by themselves can not assure
total protection.
NOVUS AUTOMATION
CAUTION OR DANGER:
Electrical shock hazard

FEATURES

INPUT TYPE SELECTION

Table 01 shows the sensor types accepted and their respective
codes and ranges. Access the parameter TYPE in the INPUT level to
select the appropriate sensor.
TYPE CODE
Termopar J Range: -110 to 950 ºC (-166 to 1742 ºF)
Tc j
Termopar K Range: -150 to 1370 ºC (-238 to 2498 ºF)
Tc k
Termopar T Range: -160 to 400 ºC (-256 to 752 ºF)
Tc t
Pt100 Range: -200 to 850 ºC (-328 to 1562 ºF)
Pt
Table 01 – Input types
The input type should be the first parameter to be configured on the
controller. Any modifications on the input type will automatically
change other related parameters. The user must verify the
configuration every time that an input type modification occurs.

OUTPUTS

The controller has two outputs. The user can configure these outputs
to operate as Control Output ((trl) or Alarm Output (al).
OUT1 - Output Voltage pulse, 5 Vdc / 25 mA
OUT2 - Output Relay SPST-NO

CONTROL OUTPUT ((TRL)

The control strategy can be ON/OFF (when PB = 0.0) or PID. The
PID parameters can be automatically determined enabling the auto-
tuning function (ATvN).

ALARM OUTPUT (al)

The controller contains 2 alarms that can be directed (assigned) to any
output channel. The alarm functions are described in Table 02.
Output is not used as alarm.
off
Alarm of Absolute Minimum
Value. Triggers when the
value of measured PV is
lo
below the value defined for
alarm Setpoint (SPAL).
Alarm of Absolute Maximum
Value. Triggers when the
value of measured PV is
ki
above the value defined for
alarm Setpoint.
Alarm of Differential. In this function the parameters,
SPAL represent the deviation of PV in relation to the
SP of CONTROL.
dif
PV
SP – SPAL SP SP + SPAL
Positive SPAL
RANGE OF MEASUREMENT
PV
SPAL
PV
SPAL
PV
SP + SPAL SP SP – SPAL
Negative SPAL
1/4
