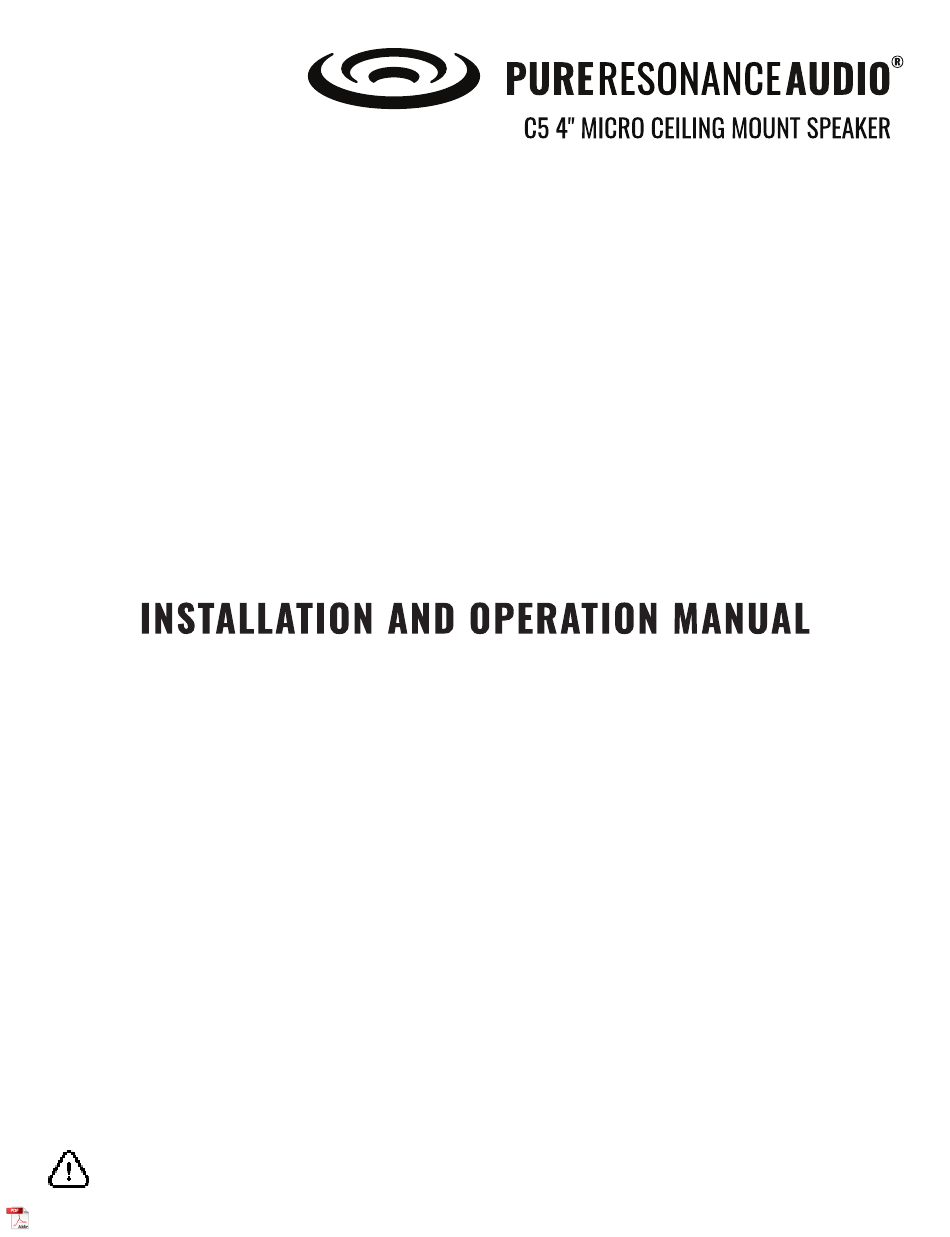

- Page 1 Caution: Please read this manual carefully before operating. Damage caused by misuse is not covered by the warranty.
- Page 2 INTRODUCTION DESCRIPTION The Pure Resonance Audio C5 is a 4” micro ceiling mount loudspeaker in a compact, lightweight, and stylish design. This 70V ceiling speaker delivers high-quality sound ideal for background or foreground music and paging in commercial environments. Featuring a built-in 70-volt transformer with an 8-ohm bypass, the C5 is perfect for a wide range of applications, including offices, retail stores, restaurants, hotels, foyers, and waiting rooms.
- Page 3 SAFETY PRECAUTIONS � Be sure to read the instructions in this section carefully before use. The included conventions of safety symbols and messages are regarded as very important precautions. � We recommend you keep this instruction manual handy for future reference. SAFETY SYMBOL AND MESSAGE CONVENTIONS Safety symbols and messages described below are used in this manual to prevent bodily injury and property damage which could result from mishandling.
- Page 4 INSTALLATION & OPERATION GUIDE SPEAKER PLACEMENT � If you desire music over a wide area, it is best to have a larger number of speakers playing at low volume, rather than a few speakers playing at high volume. Keep this in mind when designing your system. �...
- Page 5 Step 2: Rotate the ceiling speaker into the ring until it is tight. Step 3: Finish installation. DIMENSIONS 5.82” (147.83 mm) 6.7” (170.18 mm) 7.46” (189.48 mm) 7.46” (189.48 mm) OPTIONAL ACCESSORIES C5-PK Pendant Speaker Cover C5-TB Tile Bridge C5-DM Drywall Mounting Ring with Wire and Safety Cable...
- Page 6 CUT OUT TEMPLATE NOTE: This is an 8.5” x 11” standard letter size document. This speaker hole template is shown at 100% scale and should be printed out at actual size for mounting accuracy. CUT OUT 6.25” (158.75 mm) THIS AREA...
- Page 7 BASIC SPEAKER INSTALLATION - 70 VOLT SYSTEMS AND APPLICATIONS Figure 1. Figure 2. Correct Speaker Wiring Incorrect Speaker Wiring SPEAKER OUTPUT SPEAKER OUTPUT 4Ω 8Ω 16Ω 70V 100V 4Ω 8Ω 16Ω 70V 100V Be careful not to cross wires when installing your speakers. Wiring should always be negative to negative and positive to positive (Figure 2.
- Page 8 OF ALL OTHER EXPRESS AND IMPLIED WARRANTIES WHATSOEVER, INCLUDING BUT NOT LIMITED TO, THE WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PRACTICAL PURPOSE. This warranty gives you specific legal rights. You may have other rights which vary from state to state. PURE RESONANCE AUDIO ® (866) 676-7804 sales@pureresonanceaudio.com...
