- Page 1 INSTALLATION AND OPERATION MANUAL Caution: Please read this manual carefully before operating. Damage caused by misuse is not covered by the warranty.

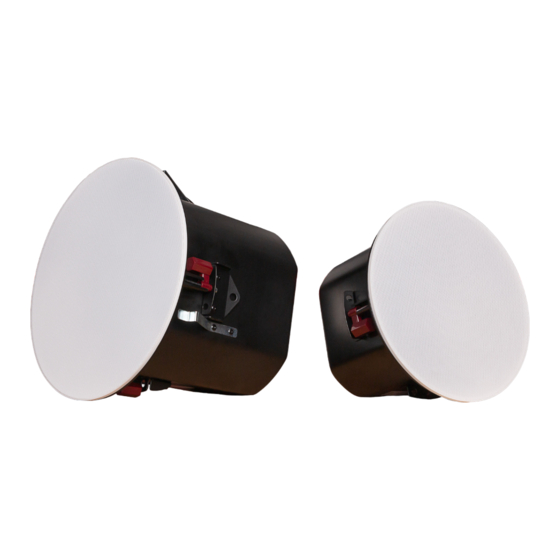

- Page 2 INTRODUCTION DESCRIPTION The Pure Resonance Audio C6 is a 6.5” 2-way high-performance ceiling mount loudspeaker in a compact design. This 70V ceiling speaker delivers full-range high-quality sound ideal for background music or paging in commercial environments. With a built-in 30-watt 70-volt transformer and an 8-ohm bypass, the C6 is perfect for a wide range of applications, including business offices, retail stores, restaurants, classrooms, and conference rooms.
- Page 3 SAFETY PRECAUTIONS � Be sure to read the instructions in this section carefully before use. The included conventions of safety symbols and messages are regarded as essential precautions. � We recommend you keep this instruction manual handy for future reference. SAFETY SYMBOL AND MESSAGE CONVENTIONS Safety symbols and messages described below are used in this manual to prevent bodily injury and property damage that could result from mishandling.
- Page 4 INSTALLATION & OPERATION GUIDE SPEAKER PLACEMENT � If you desire music over a wide area, it is best to have a larger number of speakers playing at low volume, rather than a few speakers playing at high volume. Keep this in mind when designing your system. �...
- Page 5 BASIC SPEAKER INSTALLATION - 70 VOLT SYSTEMS AND APPLICATIONS Figure 1. Figure 2. Correct Speaker Wiring Incorrect Speaker Wiring SPEAKER OUTPUT SPEAKER OUTPUT 70V 100V 70V 100V Be careful not to cross wires when installing your speakers. Wiring should always be negative to negative and positive to positive (Figure 2.
- Page 6 OF ALL OTHER EXPRESS AND IMPLIED WARRANTIES WHATSOEVER, INCLUDING BUT NOT LIMITED TO, THE WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PRACTICAL PURPOSE. This warranty gives you specific legal rights. You may have other rights which vary from state to state. PURE RESONANCE AUDIO ® (866) 676-7804 sales@pureresonanceaudio.com...
