- Page 1 S3 3" MICRO SURFACE MOUNT LOUDSPEAKER INSTALLATION AND OPERATION MANUAL Caution: Please read this manual carefully before operating. Damage caused by misuse is not covered by the warranty.

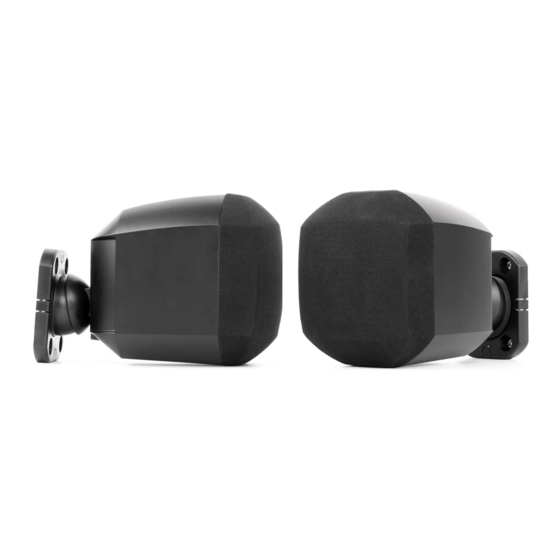

- Page 2 The Pure Resonance Audio S3 3” micro surface mount loudspeaker is perfect for commercial audio applications where quality sound and compact size matter. Built to last, the S3 surface mount loudspeaker features a strong ABS enclosure and infinitely adjustable ball-joint mount. This compact wall mount speaker provides impressive audio performance, making it ideal for use as a surface mount satellite speaker for everything from small restaurants to large scale distributed commercial audio applications.
-
Page 3: Safety Precautions
SAFETY PRECAUTIONS � Be sure to read the instructions in this section carefully before use. The included conventions of safety symbols and messages are regarded as very important precautions. � We recommend you keep this instruction manual handy for future reference. SAFETY SYMBOL AND MESSAGE CONVENTIONS Safety symbols and messages described below are used in this manual to prevent bodily injury and property damage which could result from mishandling. - Page 4 INSTALLATION & OPERATION GUIDE SPEAKER PLACEMENT � If you desire music over a wide area, it is best to have a larger number of speakers playing at low volume, rather than a few speakers playing at high volume. Keep this in mind when designing your system. �...
- Page 5 SPEAKER INSTALLATION IN THE BOX...
- Page 6 BASIC SPEAKER INSTALLATION - 70 VOLT SYSTEMS AND APPLICATIONS Figure 1. Figure 2. Correct Speaker Wiring Incorrect Speaker Wiring SPEAKER OUTPUT SPEAKER OUTPUT 70V 100V 70V 100V Be careful not to cross wires when installing your speakers. Wiring should always be negative to negative and positive to positive.
-
Page 7: Limited Warranty
SERVICE Ensure the problem is not related to operator error, or system devices that are external to this unit. Informa- tion provided in the troubleshooting portion of this manual may help with this process. Once it is certain that the problem is related to the product contact your warranty provider as described in the warranty section of this manual. - Page 8 PURE RESONANCE AUDIO (866) 676-7804 sales@pureresonanceaudio.com Specifications may change without notice. www.PureResonanceAudio.com...
