INSTALLATION AND OPERATION MANUAL
Caution: Please read this manual carefully before operating.
Damage caused by misuse is not covered by the warranty.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SD5 SuperDispersion and is the answer not in the manual?

Questions and answers

Summary of Contents for Pure Resonance Audio SD5 SuperDispersion

  • Page 1 INSTALLATION AND OPERATION MANUAL Caution: Please read this manual carefully before operating. Damage caused by misuse is not covered by the warranty.

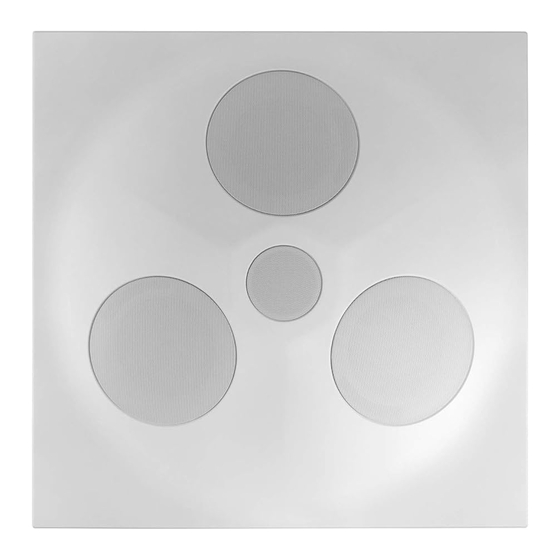

  • Page 2 INTRODUCTION DESCRIPTION The Pure Resonance Audio SD5 SuperDispersion omnidirectional drop tile ceiling speaker array offers 360° ® by 180° seamless, smooth audio coverage. At the center of the SD5 speaker system is a 3” custom engineered high-frequency driver developed to improve vocal intelligibility and even frequency response throughout your space.
  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS � Be sure to read the instructions in this section carefully before use. The included conventions of safety symbols and messages are regarded as very important precautions. � We recommend you keep this instruction manual handy for future reference. SAFETY SYMBOL AND MESSAGE CONVENTIONS Safety symbols and messages described below are used in this manual to prevent bodily injury and property damage which could result from mishandling.
  • Page 4 INSTALLATION & OPERATION GUIDE PREPARATION � Remove the speaker from the box and packaging. � Remove the ceiling tile from the grid where you wish to install the speaker. NOTE: If you are installing the speaker into a 2’ x 4’ ceiling tile space, you will need to cut the tile to fit the speaker and use a common ceiling t-rail.
  • Page 5 BASIC SPEAKER INSTALLATION - 70 VOLT SYSTEMS AND APPLICATIONS Figure 1. Figure 2. Correct Speaker Wiring Incorrect Speaker Wiring SPEAKER OUTPUT 70V 100V SPEAKER OUTPUT 70V 100V Be careful not to cross wires when installing your speakers. Wiring should always be negative to negative and positive to positive (Figure 2.
  • Page 6: Limited Warranty

    SERVICE Ensure the problem is not related to operator error or system devices that are external to this unit. Informa- tion provided in the troubleshooting portion of this manual may help with this process. Once it is certain that the problem is related to the product, contact your warranty provider as described in the warranty section of this manual.
  • Page 8 PURE RESONANCE AUDIO (866) 676-7804 sales@pureresonanceaudio.com Specifications may change without notice. www.PureResonanceAudio.com...
