Summary of Contents for Pure Resonance Audio S10
- Page 1 INSTALLATION AND OPERATION MANUAL Caution: Please read this manual carefully before operating. Damage caused by misuse is not covered by the warranty.

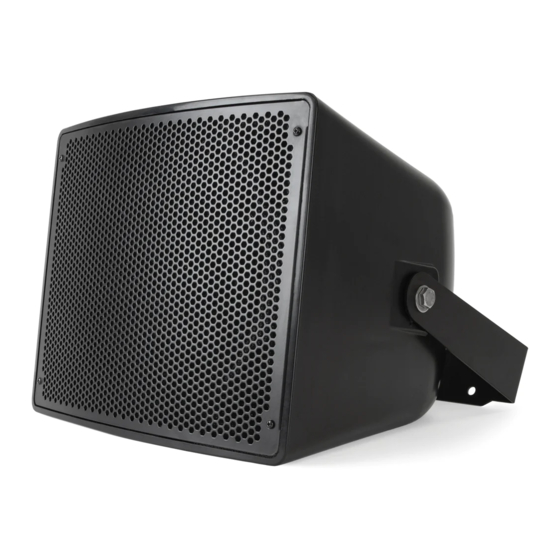

- Page 2 This 70V 2-way outdoor loudspeaker incorporates coaxial 10” LF and 1” HF drivers that deliver high output sound. The S10 is perfect for background and foreground music, paging, and general public address in stadiums, gymnasiums, ball fields, athletic facilities, arenas, fairgrounds, theme parks, warehouses, factories, and a wide variety of other outdoor commercial applications.
-
Page 3: Specifications
SPECIFICATIONS Rated Power Output 200 Watts MAX Power 300 Watts Frequency Response 70Hz - 18kHz Coverage Pattern 90° x 90° SPL (@ 1W/1M) 103±3dB Impedance 8 Ohms 12.5W, 25W, 50W, 100W, 200W @ 70V Transformer Taps 25W, 50W, 100W, 200W @ 100V Low-Frequency Driver 10”... -
Page 4: Safety Precautions
SAFETY PRECAUTIONS � Be sure to read the instructions in this section carefully before use. The included conventions of safety symbols and messages are regarded as very important precautions. � We recommend you keep this instruction manual handy for future reference. SAFETY SYMBOL AND MESSAGE CONVENTIONS Safety symbols and messages described below are used in this manual to prevent bodily injury and property damage that could result from mishandling. -
Page 5: Mounting The Bracket
INSTALLATION & OPERATION GUIDE MOUNTING THE BRACKET M8 Screw x6 M10 Screw x1 CONNECTING THE SPEAKER TO YOUR SYSTEM 1. Remove the screws on the back of the speaker and then remove the waterproof seal cover. 2. The barrier strip terminal block allows for speaker wire input as well as speaker wire output to easily daisy chain speakers in 70V applications. -
Page 6: Limited Warranty
OF ALL OTHER EXPRESS AND IMPLIED WARRANTIES WHATSOEVER, INCLUDING BUT NOT LIMITED TO, THE WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PRACTICAL PURPOSE. This warranty gives you specific legal rights. You may have other rights which vary from state to state. PURE RESONANCE AUDIO ® (866) 676-7804 sales@pureresonanceaudio.com...
