- Page 1 INSTALLATION AND OPERATION MANUAL Caution: Please read this manual carefully before operating. Damage caused by misuse is not covered by the warranty.

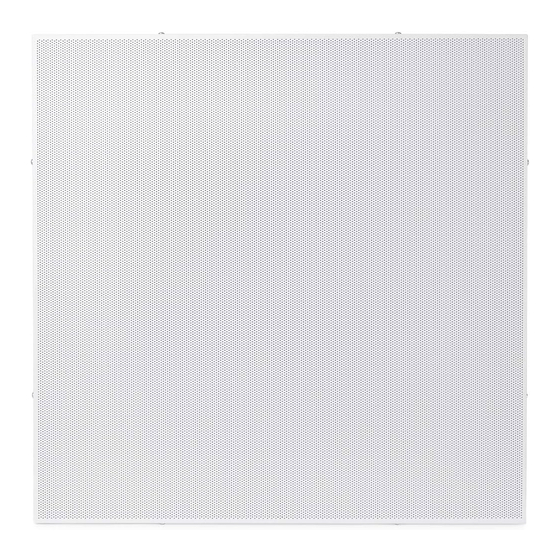

- Page 2 INTRODUCTION DESCRIPTION The Pure Resonance Audio SP8 SoundPlane 8" lay-in ceiling tile speaker quickly and easily drops into a 2'x2' suspended grid ceiling space without having to cut holes or modify ceiling tiles. The extremely low profile depth allows the speaker to fit into suspended ceiling spaces where a deeper standard speaker could not.
- Page 3 SAFETY PRECAUTIONS � Be sure to read the instructions in this section carefully before use. The included conventions of safety symbols and messages are regarded as very important precautions. � We recommend you keep this instruction manual handy for future reference. SAFETY SYMBOL AND MESSAGE CONVENTIONS Safety symbols and messages described below are used in this manual to prevent bodily injury and property damage which could result from mishandling.
- Page 4 INSTALLATION & OPERATION GUIDE PREPARATION The hardware equipment listed below is needed to install the speaker. Wire Strippers Screwdriver Tape Measure Ladder PACKLIST Ensure that you have received all parts according to the component checklist prior to installation. If any parts are missing or faulty, contact your place of purchase for a replacement.
- Page 5 INSTALLATION 2ft x 2ft Drop Ceiling Tile: Remove the tile and replace it with the ceiling speaker. Speaker 2ft x 2ft Tile Space Ceiling Grid 2ft x 4ft Drop Ceiling Tile: Remove the existing 2ft x 4ft ceiling tile, measure and cut it in half. Insert a support rail in the center of the open space (support rail not included).
- Page 6 BASIC SPEAKER INSTALLATION - 70 VOLT SYSTEMS AND APPLICATIONS Figure 1. Figure 2. Correct Speaker Wiring Incorrect Speaker Wiring SPEAKER OUTPUT 70V 100V SPEAKER OUTPUT 70V 100V Be careful not to cross wires when installing your speakers. Wiring should always be negative to negative and positive to positive (Figure 2.
- Page 7 SERVICE Ensure the problem is not related to operator error or system devices that are external to this unit. Informa- tion provided in the troubleshooting portion of this manual may help with this process. Once it is certain that the problem is related to the product, contact your warranty provider as described in the warranty section of this manual.
- Page 8 PURE RESONANCE AUDIO ® (866) 676-7804 sales@pureresonanceaudio.com www.PureResonanceAudio.com Specifications may change without notice.
