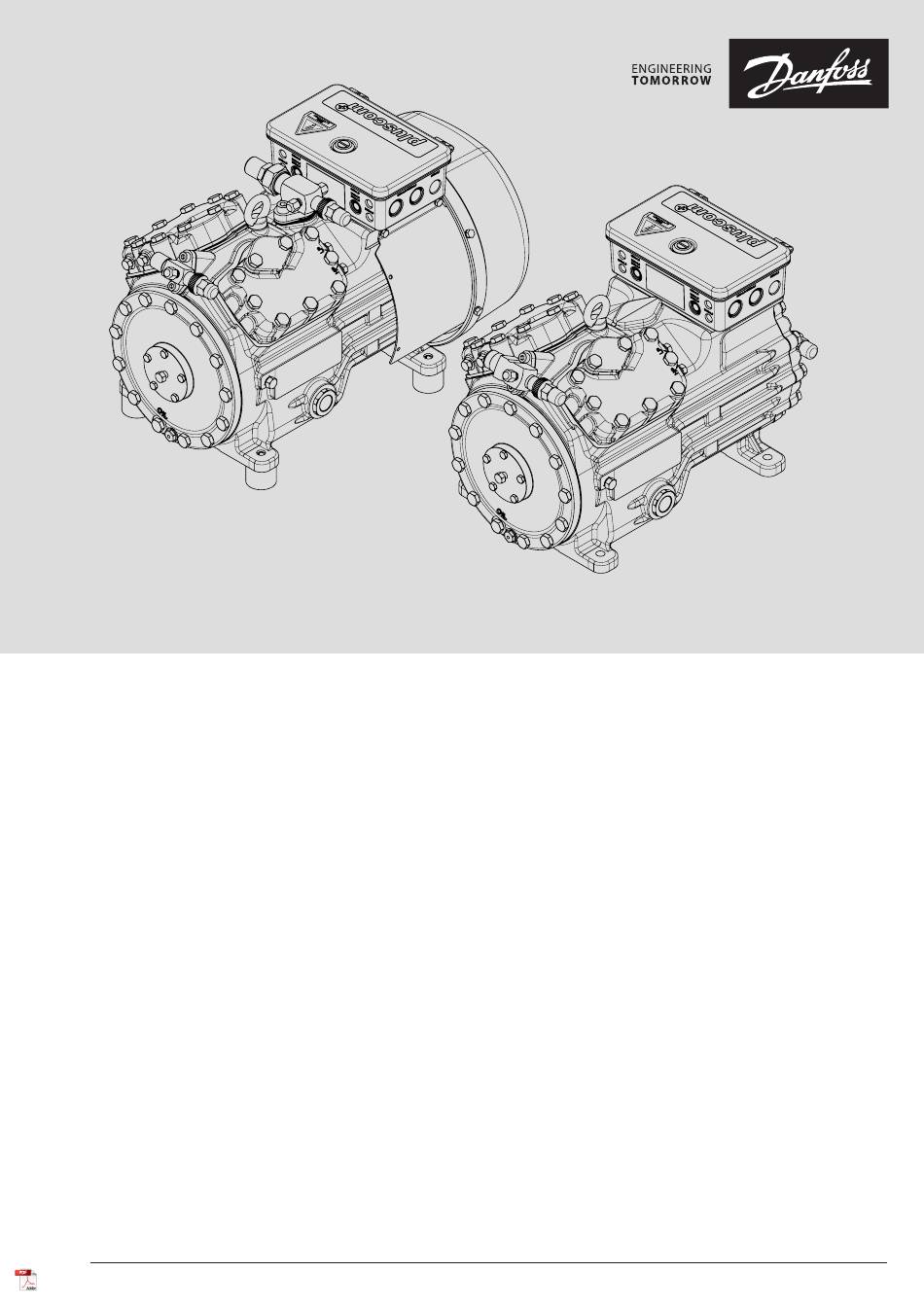

HG12P/e, HG(HA)22P/e, HG(HA)34P/e
BOCK
®
Service guide for electric motor
Translation of the original instructions
Gußtoleranzen:
-
Gewicht: (kg)
-
HA
Tol.-Ang. DIN ISO 2768-mK
über 0.5
bis
6
±0.1
Unbemaßte Radien: -
6
30
120
400
30
120
400
1000
±0.2
±0.3
±0.5
HG
Gußtoleranzen:
-
Gewicht: (kg)
-
Tol.-Ang. DIN ISO 2768-mK
über 0.5
6
30
120
bis
6
30
120
400
1000
±0.1
±0.2
±0.3
±0.5
Unbemaßte Radien: -
AX450540508378en-000301
Advertisement
Related Manuals for Danfoss BOCK HG12P/e
Summary of Contents for Danfoss BOCK HG12P/e
- Page 1 Gußtoleranzen: Gewicht: (kg) Tol.-Ang. DIN ISO 2768-mK über 0.5 1000 ±0.1 ±0.2 ±0.3 ±0.5 Unbemaßte Radien: - Gußtoleranzen: Gewicht: (kg) Tol.-Ang. DIN ISO 2768-mK über 0.5 1000 ±0.1 ±0.2 ±0.3 ±0.5 Unbemaßte Radien: - HG12P/e, HG(HA)22P/e, HG(HA)34P/e BOCK ® Service guide for electric motor Translation of the original instructions AX450540508378en-000301...
- Page 2 This symbol is used to indicate that parts with refrigeration-maschine oils (for oil types see compressor name plate) should be moistened prior to installing. • This symbol indicates the required tightening torque for the screw. 2 | AX450540508378en-000301 © Danfoss | Climate Solutions | 2024.07...
- Page 3 Before starting any work, ensure that there is no voltage, then earth and short-circuit. Cover or cordon off neighboring live parts. WARNING The heavy weight of the compressor can be potentially dangerous. Use all the seals included in the kit. © Danfoss | Climate Solutions | 2024.07 AX450540508378en-000301 | 3...
- Page 4 Ensure that the compressor is depressurised before starting work. 3.1 Draining the oil NOTE Do not dispose of oil in domestic waste. Dispose of the old oil in accordance with the environmental regulations and observe national regulations. 4 | AX450540508378en-000301 © Danfoss | Climate Solutions | 2024.07...
- Page 5 Disassembly 3.2 Removing the air guide hood (only for HA) © Danfoss | Climate Solutions | 2024.07 AX450540508378en-000301 | 5...
- Page 6 Damaged parts must be repaired or replaced immediately. ¾ Remove the terminal board and, if available, the PTC terminal board. ¾ Remove the fan (only for HA). Up to design key 056 From design key 057 6 | AX450540508378en-000301 © Danfoss | Climate Solutions | 2024.07...
- Page 7 ATTENTION! The residual oil flows out when the case cover is removed. Lay an absorbent material under the area and dispose of it in accordance with the environmental regulations. © Danfoss | Climate Solutions | 2024.07 AX450540508378en-000301 | 7...
- Page 8 Remove the locking screw and the stator screw underneath it. ¾ Do not damage any cables or components. First remove the motor cables from the compressor housing and then carefully pull out the stator. F = max. 16 kg 8 | AX450540508378en-000301 © Danfoss | Climate Solutions | 2024.07...
- Page 9 Screw in the stator screw. The hardening time of the thread coating is 6 hours. The stator screw must only be used once. ¾ Screw in the locking screw. 25 Nm 3 Nm © Danfoss | Climate Solutions | 2024.07 AX450540508378en-000301 | 9...
- Page 10 Slightly oil the new seals. ¾ Connect the electrical connections as per the illustration on page 11. Up to design key 056 From design key 057 SW 10 15 Nm SW 10 16 Nm 10 | AX450540508378en-000301 © Danfoss | Climate Solutions | 2024.07...
- Page 11 Terminal board underside black black ATTENTION ! black Make sure that you use the correct connection on the cable harnesses! Connection for PTC sensors black white or blue Cable harness (2) © Danfoss | Climate Solutions | 2024.07 AX450540508378en-000301 | 11...
- Page 12 Installation 4.3 Installing the case cover 14 x SW 17 75 Nm 12 | AX450540508378en-000301 © Danfoss | Climate Solutions | 2024.07...
- Page 13 DANGER! Carry out the additional work steps such as "filling the oil" etc. in accordance with the operating manual. See the operating manual, in particular the "Start-up" chapter. SW 5 15 Nm © Danfoss | Climate Solutions | 2024.07 AX450540508378en-000301 | 13...
- Page 14 Dear customer, f you have any questions about installation, operation and accessories, please contact our technical service or your refrigerating system wholesaler or our representative. 14 | AX450540508378en-000301 © Danfoss | Climate Solutions | 2024.07...
- Page 15 © Danfoss | Climate Solutions | 2024.07 AX450540508378en-000301 | 15...
- Page 16 16 | AX450540508378en-000301 © Danfoss | Climate Solutions | 2024.07...
