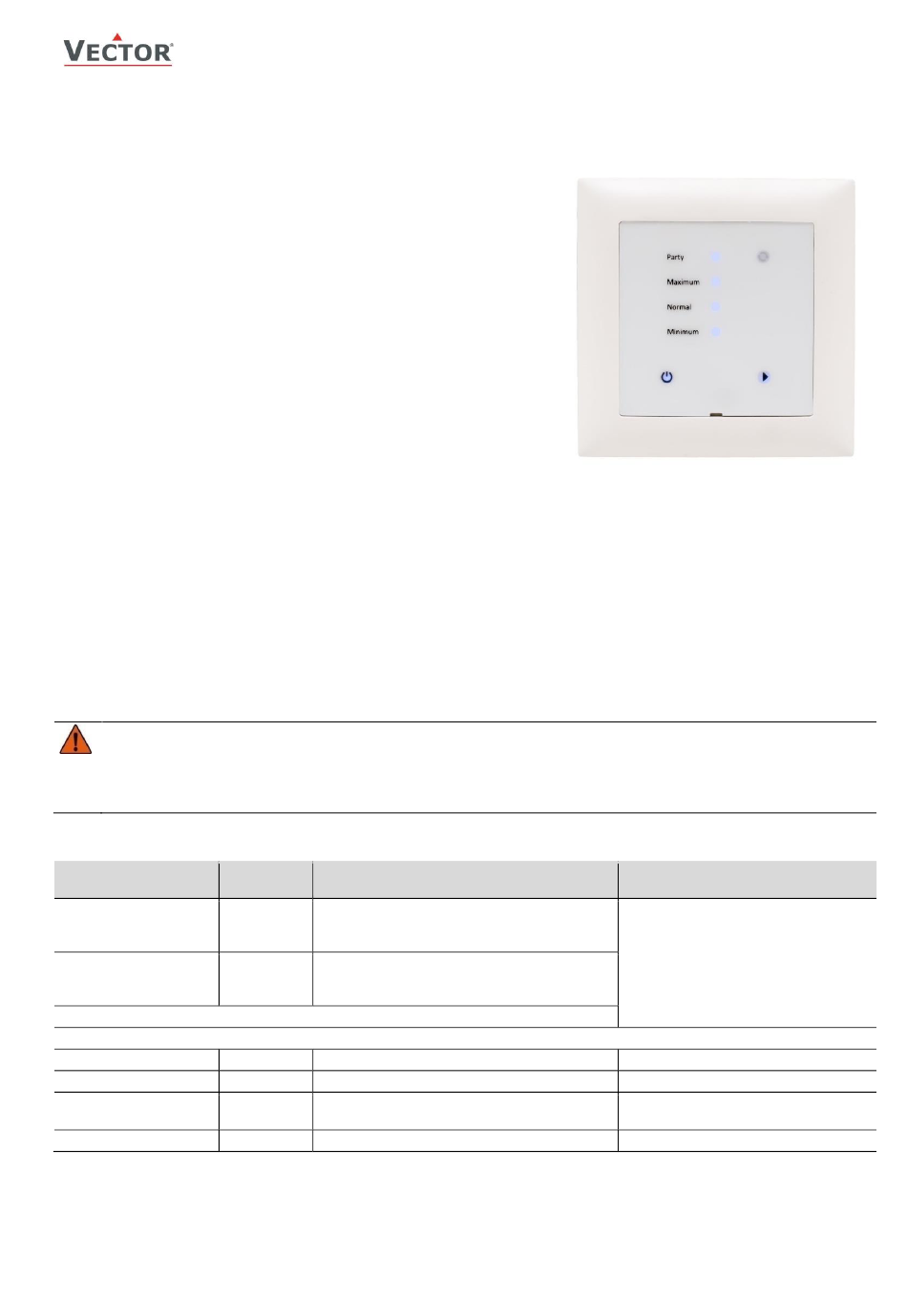

Vector MZ3-FS-V11 Manual

MZ3-FS-V11
Controller/positioner for comfort ventilation
Function
• Positioner and controller for comfort ventilation with touch panel
• Manual operation with up to 4 Levels, OFF, minimum air, 1st Level,
2nd Level, maximum air
• AUTO level mode: The controller activates the ventilation level based
on controls curve. The controls curve may be adjusted
• AUTO Continuous mode: The controller adjusts the ventilation level
gradually between adjustable minimum and maximum according to
sensor value
• One 0...10 VDC input for connection of a CO2 or air quality sensor
• One 0...10 VDC controls output to control the ventilation system
• Automatic reset of the maximum air level (standard: level 0 after
120 min.)
• Password protected controls settings
• Copy of settings with accessory (AEC-PM2)
• Design fits to the Feller SNAPFIX® program with the design lines
EDIZIOdue® and EDIZIO.liv®.
(Note: SNAPFIX® mounting plate and EDIZIO design frames are not included and must be ordered separately)
Applications
This device is designed to control ventilation systems for comfort applications. For example, for well insulated residential
areas which are required to be ventilated or for controlling dampers, valve drives, blinds or windows, etc.
General description
The MZ3-FS-V11 is a microprocessor-controlled precision positioner / proportional controller with touch panel. Through
user and engineering parameters the positioner may be configured to work for most of the standard ventilation
applications. The device is pre-configured according to this documentation. Settings such as switching levels of the control
curve and ventilation strengths for each Level may be adjusted. The configuration may be performed using the
programming device called OPA-S. This device may be used as well to visualize measuring values. Configuration can as
well be updated using a remote memory device called AEC-PM2.
Safety
DANGER! Safety note
This device serves as an actuator or proportional controller for ventilation systems. Where a control failure would
result in personal injury and/or property damage, it is the responsibility of the customer, designer and installer to
install additional equipment and devices that will prevent a control failure or warn if limits are exceeded.
The device contains electronic components and must not be disposed of with household waste.
Types and ordering
Product
Product name
No.
MZ3-FS-V11-B-T4-W 40-100301
MZ3-FS-V11-B1-T4-W 40-100302
Note: Mounting plate and frame are not included. See below for options.
Accessories
AMM-DS-W 40-510104
AMM-LS-W 40-510105
OPA-S 40-500006
AEC-PM2 40-500130
Doc: 70-00-1101A V2.5, 20250516
Subject to alternation
Description
- Blue LED
- White background
- Minimum, Normal, Maximum, Party
- Blue LED
- White background
- Minimum, Level I, Level II, Maximum
Feller EDIZIOdue® frame white
Feller EDIZIO.liv® frame white
Programming and display device
Memory-Device. Used for copying settings
© Vector Controls GmbH, Switzerland
www.vectorcontrols.com
MZ3-FS-V11
Features
Compact positioner / controller with
one 0-10 VDC input and output.
Operation as 4-Level switch with
touch panel and AUTO function.
Includes SNAPFIX® mounting plate
Includes SNAPFIX® mounting plate
LCD display for surface mounting or
handheld operation.
Stores settings of MZ3
Page 1-8
