Xiaomi Lite, YXSB01YM Manual

Product Overview

Read this manual carefully before use, and retain it for future reference.

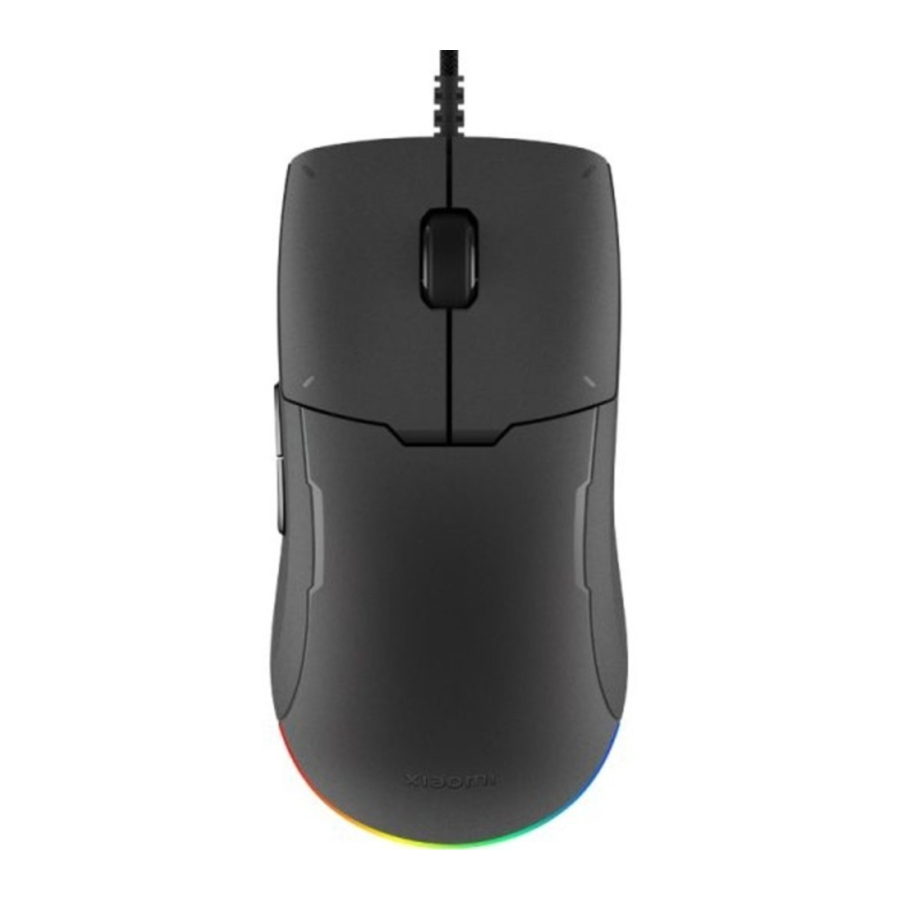

Xiaomi Gaming Mouse Lite is a lightweight wired gaming mouse with five DPI (dots per inch) levels and the RGB flowing light effect.
Product Overview

Note: Illustrations of product and accessories in the user manual are for reference purposes only. Actual product and functions may vary due to product enhancements.

Package Contents

Note: Replace the mouse skates if severely worn. Do not directly attach the new ones to the original ones.

How to Use

  1. Remove the cable tie, and plug the USB connector into a computer. Then the computer will automatically detect the USB device and install the driver for the mouse.
  2. After the installation is successful, the system prompts that the current device is available, and the mouse can be used normally.

Changing DPI

This mouse has five DPI levels. Press the DPI switch bu on on the bo om of the mouse to cycle through DPI levels, and the DPI indicator will change its color accordingly.
Note: The mouse defaults to level 2 when being turned on for the first time. The next time it is turned on, the level will be the last used one.

Level DPI Indicator Color
1 400 DPI Red
2 800 DPI Purple
3 1600 DPI Blue
4 3200 DPI Green
5 6200 DPI Yellow

Button Combinations

Combinations Lighting Effects
FN + Scrolling up the wheel Change among the flowing light mode, the colorful & breathing light mode, and the single color mode.
FN + Scrolling down the wheel Change the light flowing directions in the flowing light mode: From left to right, from right to left, and from the middle to both sides. Change the light color in the single color mode: Red, orange, yellow, green, cyan, blue, and purple.
FN + Left Button Change the light brightness levels: High, low, and disabled.
FN + Right Button Change the light strip's breathing frequencies: Fast, medium, and low.

Specifications

Name: Xiaomi Gaming Mouse Lite
Model: YXSB01YM
Connectivity: USB connection
Compatible with: Windows 10 or above macOS 10.13 or above
Rated Input: 5 V 150 mA
Materials: PC, ABS, metals, and others
Net Weight: Approx. 72 g (excluding the cable)
Item Dimensions: 125 × 63 × 39 mm
Operating Temperature: 0°C to 40°C

Manufactured for: Xiaomi Communications Co., Ltd.
Manufactured by: Beijing Yueme Technology Co., Ltd. (a Mi Ecosystem company)
Address: Room C608, Building No. B-2, Zhongguancun Dongsheng Science and Technology Park · Phase I, No. 66, Xixiaokou Road, Haidian District, Beijing, China
For further information, please go to www.mi.com
