Instructions
™
ToughTek
Control Box Accessory Kit
For controlling power to the 340e at the applicator. For professional use only.
Not approved for use in explosive atmospheres or hazardous (classified) locations.
Model 17G554
Important Safety Instructions
Read all warnings and instructions in this manual and
the respective ToughTek
equipment. Save these instructions.

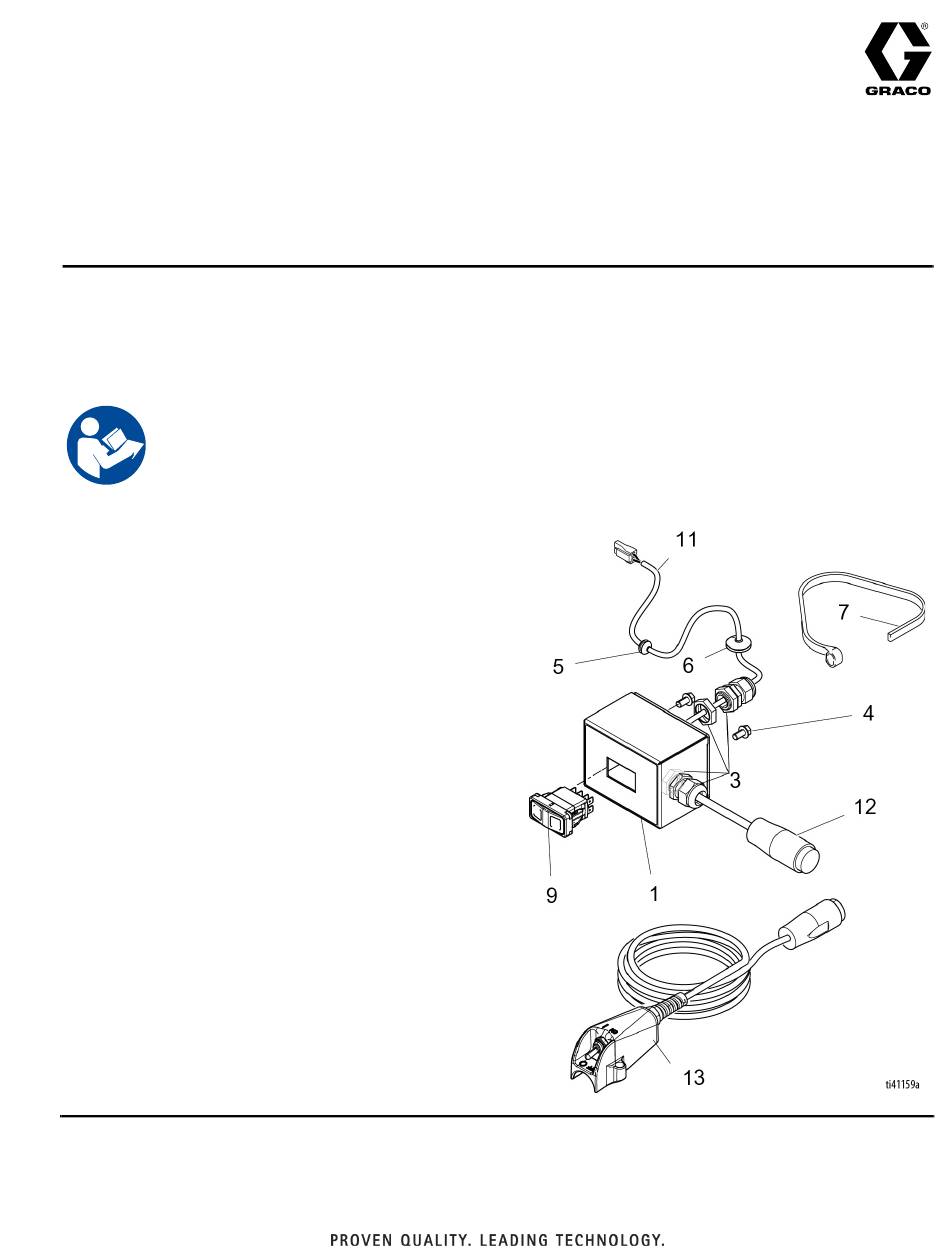

Ref. Part
Description
1
- - - - -
ENCLOSURE, remote switch
3
114421
BUSHING, strain relief
4
113161
SCREW, flange, hex hd
5
128597
GROMMET, 3/16 in. ID x 9/16 in.
OD
6
128596
GROMMET, 5/16 in. ID x 1 in. OD
7
125871
TIE, cable, 7.5 in.
9
17F719
SWITCH, rocker, 3-position
11
18B211
HARNESS
12
18B225
CONNECTOR, circular,4 pin, plug
13
17W604 KIT, module, remote
340e Remote Switch
™
manual before using this
Qty.
1
2
2
1
1
1
1
1
1
1
3A3112G
EN
Advertisement
Related Manuals for Graco ToughTek 340e
Summary of Contents for Graco ToughTek 340e
- Page 1 Instructions ™ ToughTek 340e Remote Switch 3A3112G Control Box Accessory Kit For controlling power to the 340e at the applicator. For professional use only. Not approved for use in explosive atmospheres or hazardous (classified) locations. Model 17G554 Important Safety Instructions Read all warnings and instructions in this manual and ™...
- Page 2 Instructions Instructions 9. Open the motor control box and remove the yellow WARNING jumper wire and connector (Z) in J6 by pinching the tab on the bottom. NOTE: It may be easier to first disconnect the connector ELECTRIC SHOCK HAZARD below to allow more room to grab it.
- Page 3 Instructions Routing Diagram 3A3112G...
- Page 4 With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
