User's Guide
AM261x LaunchPad User Guide
Description

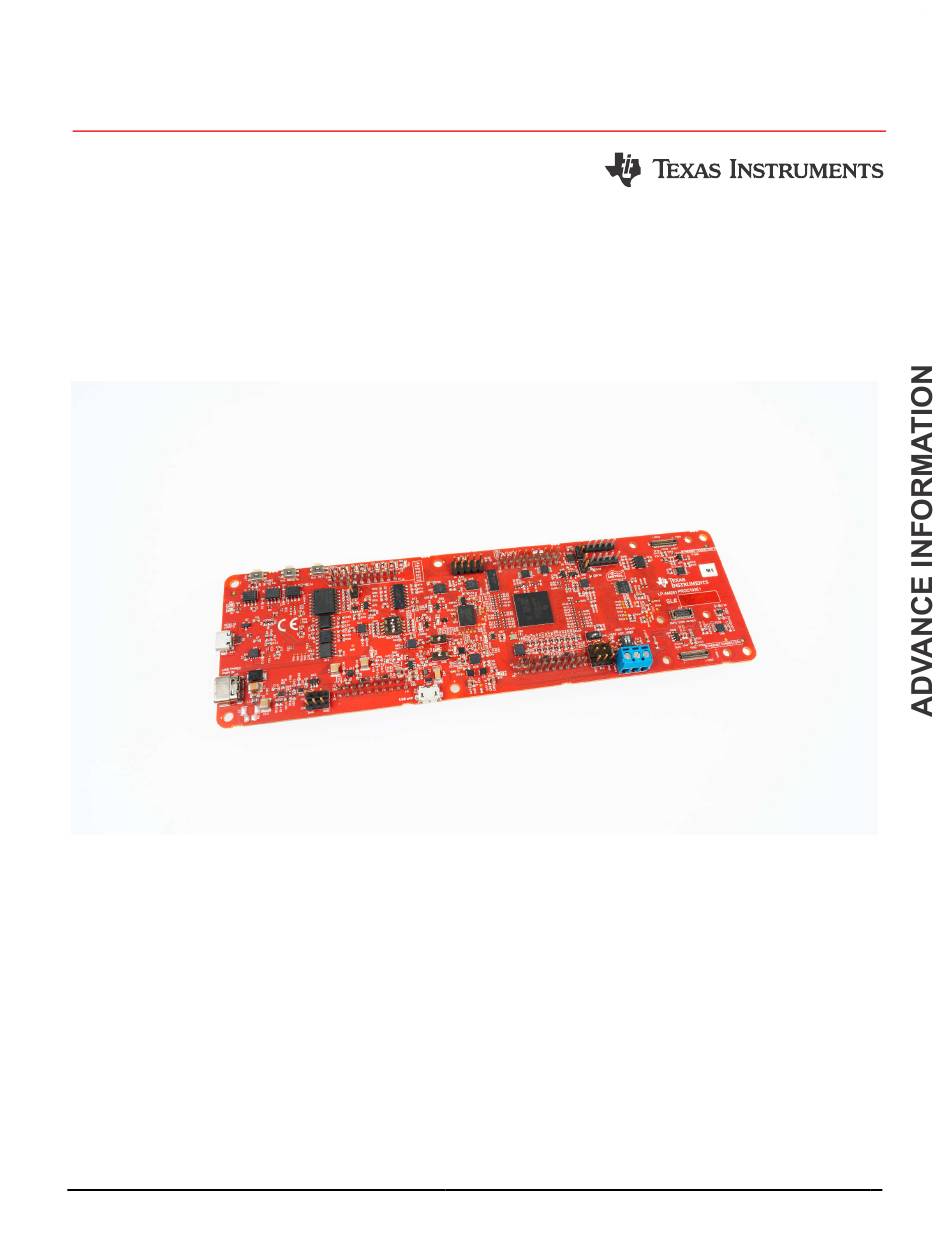

The AM261x LaunchPad
the Texas Instruments
™
Sitara
to start developing on the AM261x MCUs with onboard emulation for programming and debugging as well as
buttons and LEDs for a simple user interface. The LaunchPad also features two independent BoosterPack XL
expansion connectors, two onboard FLASHes and one FLASH expansion connector, two Ethernet PHY add-on
board connectors, onboard Controller Area Network (CAN) transceiver, and an onboard XDS110 debug probe.
SPRUJF1 – NOVEMBER 2024
Submit Document Feedback
™
development kit is a simple and inexpensive hardware evaluation module (EVM) for
™
AM261x series of microcontrollers (MCUs). This EVM provides an easy way
Copyright © 2024 Texas Instruments Incorporated
Description
AM261x LaunchPad User Guide
1
