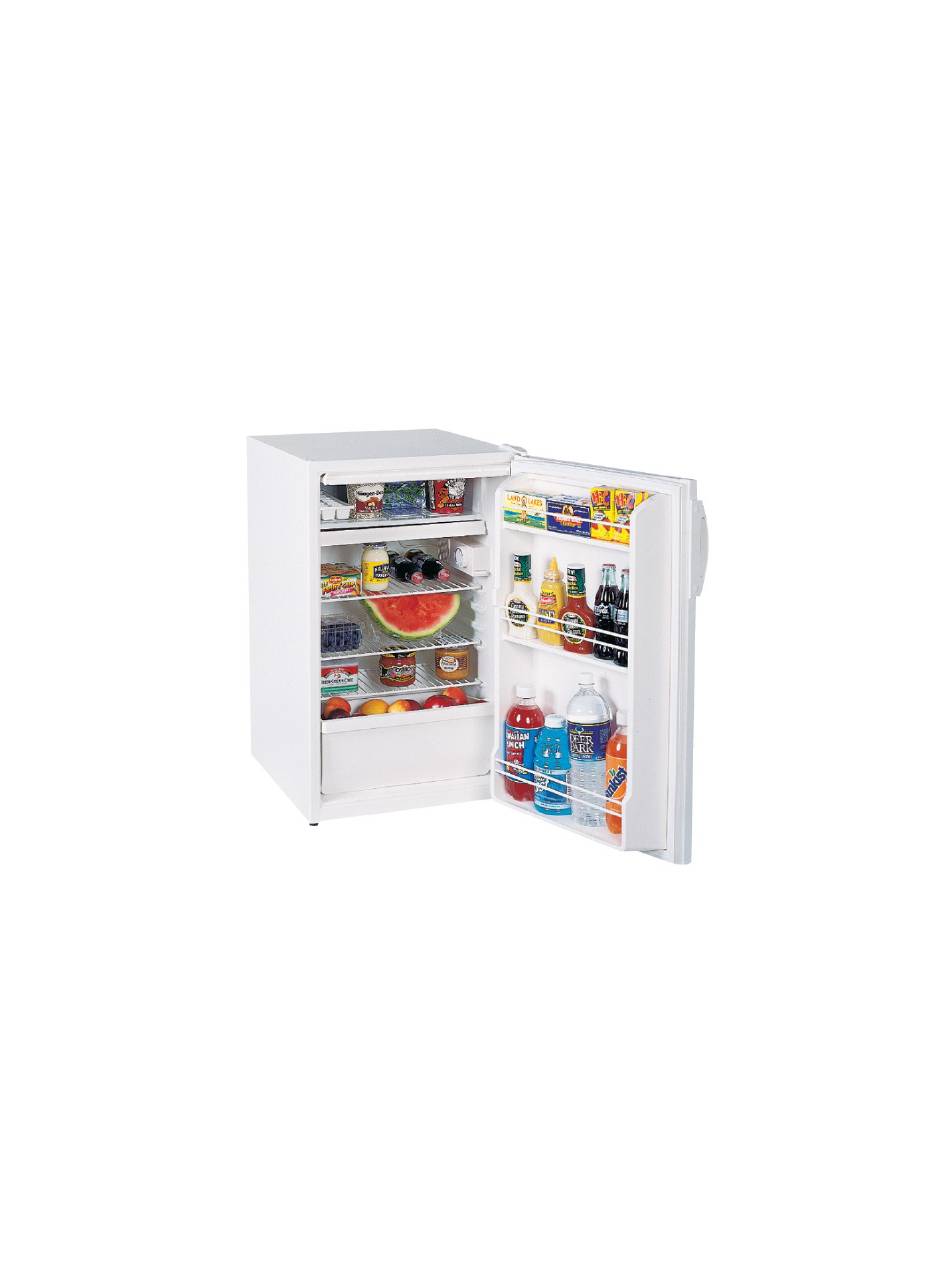

- Page 1 FELIX STORCH, INC. SUMMIT APPLIANCE DIVISION® INSTRUCTION MANUAL FOR THE AL-520 REFRIGERATOR-FREEZER...
- Page 2 Write the model and serial numbers here: Model#_____________________ Serial #___________________ Find these numbers on the back of the unit Table of Contents Before Putting into Use…3 IMPORTANT Disposing of worn out Appliance….4 Placing and Installation Choosing the right Place……………………..5 Connection to Power Supply…………………...5 Description of the Appliance…………………...6-7 Operation Control…………………………………..7 Temperature Selection…………………………………..7...
- Page 3 Before Putting*Before Putting Into UsE* Before connecting the appliance to the power supply, leave it standing for about 2 hours, this will reduce the possibility of malfunctions in the cooling system due to transport handling. Clean the appliance thoroughly; especially in the interior (See Cleaning and Maintenance).
- Page 4 IMPORTANT If you bought this appliance to replace an old one equipped with a lock that cannot be opened from inside (lock, bolt), make sure that the lock is broken. This will make it impossible for children to lock themselves inside the appliance and suffocate.
- Page 5 PLACING AND INSTALLATION It is important to make sure the appliance is leveled evenly to prevent falling. Two spacers attached to the appliance must be fitted onto the upper edge of the condenser, thus preventing the appliance from being installed too close to the wall. Spacers are manufactured for all-purpose functions depending on the distance of the condenser from the wall.
- Page 6 (may vary depending on your model) Sheleves (quantity depends on model) The sheleves can be optionally placed on the guides inside the appliance. They are protected against pulling out. If you want to remove one, slightly lift up the back part and pull it out.
- Page 7 The door consists of three shelves. The upper shelf can be used for storing eggs, cheese, butter, yogurt, and other small packages. The middle shelf and be used for storing small bottles/jars and the lower shelf is used for storing large bottles. Illumination of the Interior of the Refrigerator The light for illuminating the interior of the appliance turns on when the door is opened.
- Page 8 Storing Fresh Foods in the refrigerator Foods to be stored in the refrigerator should be properly packed as to prevent mixing various moisture degrees and odors (in polyethylene bags or sheet, aluminum foil, wax paper, covered containers or bottles). Never store any inflammable, volatile or explosive substances. Beverages with high alcohol percentage shall be stored in tightly sealed bottles in a vertical position.
- Page 9 Storing Fresh Foods in the freezer • Carefully select food you intend to freeze; the food should be of adequate quality and suitable for freezing. • Use correct packaging and wrap it right. - The packaging should be air tight and shouldn’t leak; this may cause substantial vitamin loss and dehydration of the foods.
- Page 10 Manual Defrosting In case the ice formation on the inner back wall is increased (1/8”), ice should be manually defrosted. Set the thermostat knob to STOP (0) position and leave the door open. Never use electric devices for defrosting and do not scrape the ice or frost layer with sharp objects.
- Page 11 Door swing reversal If you find the direction of opening the door on your appliance inconvenient, you can change it. Holes on the opposite side have already been prepared at the factory 1. Remove the top hinge cover and hinge (on models with a tabletop, remove the bottom hinge instead).
- Page 12 Trouble-Shooting Guide During the service of your appliance, you may come across some troubles that in most cases result from improper handling of the appliance that can easily be eliminated. Problem #1 Appliance Fails to Operate After Connecting to the Power Supply Possible Cause/Solution *Check to make sure the appliance is switched ON (thermostat is in the operating position)
- Page 13 Care sections. You may find the answer to your questions. If you don’t find the answer to your questions in this manual, find the unit model number (on the upper back of the refrigerator) and contact your Summit Appliance Dealer. Specifications are Subject to Change Without...
