REFRIGERATOR-FREEZERS
Refrigerators:
Refrigerator-Freezers:
Freezers:
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.
Write Serial Number (on lower left corner of
inside cabinet) here:
_______________________
Serial No.:
REFRIGERATORS
FREEZERS
MODELS:

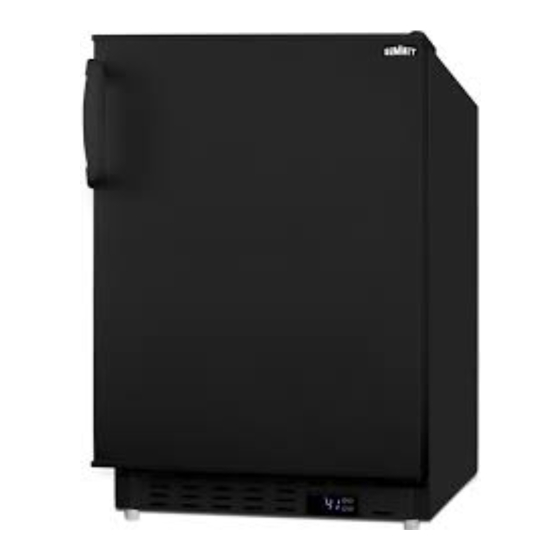

ALR46W, ALR47B, BIAR402, BIAR405B
ALRF48, ALR49B, BIRF403, BIRF406B
ALFZ36, ALFZ37B, BIFZ404, BIFZ407B
User Manual
Felix Storch, Inc.
An ISO 9001:2015 registered company
770 Garrison Avenue
Bronx, NY 10474
www.summitappliance.com
Advertisement
Table of Contents
Related Manuals for Summit ALR47B
Summary of Contents for Summit ALR47B
- Page 1 REFRIGERATORS REFRIGERATOR-FREEZERS FREEZERS MODELS: Refrigerators: ALR46W, ALR47B, BIAR402, BIAR405B Refrigerator-Freezers: ALRF48, ALR49B, BIRF403, BIRF406B Freezers: ALFZ36, ALFZ37B, BIFZ404, BIFZ407B User Manual BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS. Write Serial Number (on lower left corner of Felix Storch, Inc.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Appliance Safety Important Safeguards Installation Instructions Before Using your Appliance Installation of your Appliance Electrical Connection Extension Cord Reversing the Door Swing Installing the Handle Operating your Appliance 7-10 Control Panel (Refrigerator and Freezer Models) Alarms Defrosting Shelves Care and Maintenance Cleaning your Appliance... -
Page 3: Appliance Safety
APPLIANCE SAFETY Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the Safety Alert Symbol. The symbol alerts you to potential hazards that can kill or injure you and others. - Page 4 • In the event of any damage: Avoid open flames and anything that creates a spark, Disconnect from the power supply Air the room in which the appliance is located for several minutes and Contact the Service Department for advice. •...
-
Page 5: Installation Instructions
INSTALLATION INSTRUCTIONS Before Using your Appliance Remove the exterior and interior packing. • Before connecting the appliance to the power source, let it stand upright for approximately 2 hours. • This will reduce the possibility of a malfunction in the cooling system from handling during transportation. -
Page 6: Extension Cord
Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded. When a standard 2-prong wall outlet is encountered, it is your responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet. To prevent accidental injury, the cord should be secured behind the appliance and not left exposed or dangling. -
Page 7: Installing The Handle
Installing the Handle This appliance includes a handle that is not required to operate the unit. To install the handle, follow the instructions below: 1. Use a screwdriver to remove the screws on the side of door where the handle is to be installed. 2. - Page 8 • Press and hold the SET and the LIGHT keys for three seconds to turn the unit on/off. • To adjust the temperature, press and hold the SET key for 3 seconds. When the display shows St, you can raise the temperature by pressing the LIGHT key or lower it by pressing the MENU ADJUST key, shown below.
-
Page 9: Alarms
Door Open Alarm: Your unit will sound an alarm when the door is open for longer than 60 seconds. To disable this: 1. Follow the Setting Parameters instructions on page 8. 2. Find parameter do2. 3. The default for the unit is set at 1 (Enabled). 4. -
Page 10: Defrosting
NOTE: If the unit is unplugged, or power is lost or turned off, you must wait 3 to 5 minutes before restarting the unit. If you attempt to restart before this time delay, the unit will not start. Defrosting Refrigerators in this series defrost automatically in normal operating conditions. The evaporator behind the rear wall of the unit defrosts automatically. -
Page 11: Care And Maintenance
CARE AND MAINTENANCE Cleaning your Appliance • Turn off the power, unplug the appliance, and remove all items, including shelves. • Wash the inside surfaces with a solution of warm water and baking soda (about 2 tablespoons of baking soda to a quart of water). •... -
Page 12: Troubleshooting
TROUBLESHOOTING You can solve many common problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer. Troubleshooting Guide PROBLEM POSSIBLE CAUSE REMEDY • Appliance is not connected to a power •... -
Page 13: Parameter Table
PARAMETER TABLE Item Description Setting Range Default Unit User Menu Low set-point~High set-point ℃/℉ Temperature set-point 4℃ 00~99(Default password is 55 and Administrator menu password unchangeable) Administrator Menu 0.5℃~9.0℃ ℃/℉ Differential 4℃ 1℉~20℉ Compressor start delay between 0~60 last switch-off and the successive switch-on Compressor start delay after 0~90... - Page 14 0℃ ~ 50℃ ℃/℉ Defrost stop temperature 12℃ 32℉ ~122℉ 0~60 Dripping time 0: Disabled Delay time for displaying the 0~90 cabinet temperature after defrost 0~60 Defrost start delay 0: Disabled 0: Electric defrost Defrost mode 1: Hot gas defrost 0: Fan and compressor run or stop simultaneously;...
- Page 15 0: Light A12 Light/Alarm relay options 1: Alarm 0: Door switch is disabled; 1: Fan stops running when the door is open; 2: Light is turned on/off when the door is open/closed; 3: Fan stops running and light is turned Door switch control options on when the door is open.
-
Page 16: Limited Warranty
LIMITED WARRANTY ONE-YEAR LIMITED WARRANTY Within the 48 contiguous United States, for one year from the date of purchase, when this appliance is operated and maintained according to instructions attached to or furnished with the product, warrantor will pay for factory-specified parts and repair labor to correct defects in materials or workmanship. Service must be provided by a designated service company.
