Xiaomi S101 Manual

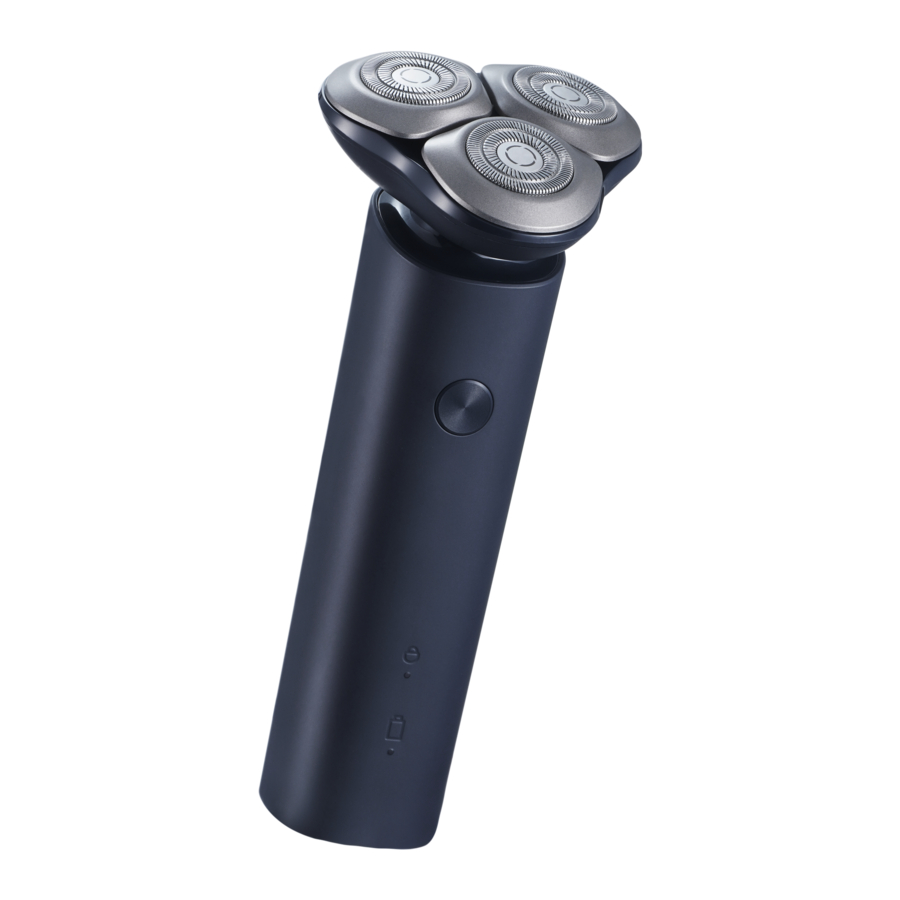

Product Overview

Note: Illustrations of product, accessories, and user interface in the user manual are for reference purposes only. Actual product and functions may vary due to product enhancements.

How to Use

• It is recommended to clean the shaving head before first use. It is normal for the skin to be slightly irritated after the first few shaves. It is recommended to regularly use the shaver (at least 3 times a week) for 3 weeks to allow the skin to adapt as quickly as possible.
• Press the on/off button to turn on/off the shaver.
• Apply gentle pressure while shaving your face slowly in circular motions.

  Note
  • Do not pull the shaving head holder as it is non-detachable.

Notes

• Improper use of this shaver can easily cause damage to the shaving head. Please check whether the shaving head is intact before use. Immediately stop using the shaving head if any damage is found.
• Shave dry for optimal result. When shaving the hard-to-shave areas such as the chin and neck, it is recommended to move the shaver against the direction of the beard growth.


Battery Level Indication

Plug the charging cable into the charging port and connect it to a power outlet to start charging. Description of the battery level indicator status is as below:

Note: The shaver supports plug-and-play. When the battery is low, you can use the shaver during charging.

Never plug in or use the shaver in the shower or when the charging port is wet.
When the shaver cannot be turned on due to a low battery, it will take about 90 minutes to fully charge it. The shaver can be used for about 60 minutes after a full charge. Please charge the shaver when its battery is low. Fully charge the shaver at least once every 6 months if it will not be used for an extended period of time.

Travel Lock

This shaver is equipped with a travel lock to prevent it from accidentally being turned on while it is inside the luggage.

• Enabling the travel lock: When the shaver is turned off, press and hold the on/off button for 2.5 seconds until the motor stops to enable the travel lock. Once it is enabled, the travel lock indicator will keep on for 3 seconds and then go off.
• Disabling the travel lock: Press and hold the on/off button for 2.5 seconds until the motor runs to disable the travel lock.

Note: When the travel lock is enabled, if you press the on/off button, the travel lock indicator will blink.

Care & Maintenance

To ensure optimal functionality, please clean the shaver after each use.

1. Make sure the shaver is turned off and is not being charged before cleaning it.
2. Rinse the shaving head under a faucet.

3. Pull the shaving head and remove it from the holder.

4. Rinse or use the cleaning brush to clean the shaving head holder.

5. Turn the shaving head upside-down and clean the inside under a faucet (do not use a towel or paper towel to clean the shaving head).

6. Thoroughly dry off the shaver, then install the shaving head back onto the holder.


Note: Use the protective cover to cover the charging port while cleaning the shaver. Make sure the charging port is dry when plugging in the cable to charge.

Note: The shaver can be cleaned under a faucet (to keep the charging port dry, make sure it is firmly covered).

To ensure the performance of the shaver, it is recommended to replace the shaving head every half a year. Please go to www.mi.com to purchase a replacement.

Troubleshooting

Specifications

Name: Xiaomi Electric Shaver S101
Model: S101
Operating Voltage/Power: 3.7 V ⎓/3 W
Input: 5 V ⎓ 1 A
IP Rating: IPX7
Charging Port: Type-C
Charging Time: Approx. 90 min
Power Consumption Off mode: ≤ 0.3 W
Time to Enter the Condition Off mode: ≤ 20 min

Power Adapter

Input: 100–240 V~, 50/60 Hz, 0.2 A
Output: 5.0 V ⎓ 1.0 A, 5.0 W

Use only with <A520-050100U-EU1> supply unit.

Safety Instructions

• Keep the appliance dry.
• Detach the hand-held part from the supply cord before cleaning it in water.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Use only with <A520-050100U-EU1> supply unit.
• This appliance contains batteries that are non-replaceable. For the purposes of recharging the battery, only use the detachable supply unit provided with this appliance. The plug must be removed from the socket-outlet before cleaning or maintaining the appliance.
• Appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Cleaning and user maintenance shall not be made by children without supervision.
• Do not charge this shaver in humid environments.
• Do not disassemble the body to replace the battery.
• Do not modify or repair this shaver yourself.
• The appliance is not suitable for use in a bath or shower. Do not expose the appliance or battery to excessive temperatures.
• Be aware of the risk of terminals of the battery-operated appliance or battery being short circuited by metal objects.

Suitable for cleaning under an open water tap

EU REP.
Xiaomi Technology Netherlands B.V.
Prinses Beatrixlaan 582, 2595BM, The Hague,
The Netherlands
contact@support.mi.com

UK REP.
Xiaomi Technology UK Limited
Davidson House, Forbury Square, Reading, Berkshire RG1 3EU
contact@support.mi.com
Manufactured for: Xiaomi Communications Co., Ltd.
Manufactured by: Shenzhen Soocas Technology Co., Ltd.
(a Mi Ecosystem company)
Address: Room 401, 402, 1101, 1102, 1103, 1104, Building 2
Chongwen Area, Nanshan iPark, No. 3370 Liuxian Avenue,
Fuguang Community, Taoyuan Subdistrict, Nanshan District, Shenzhen, China
For further information, please go to www.mi.com
