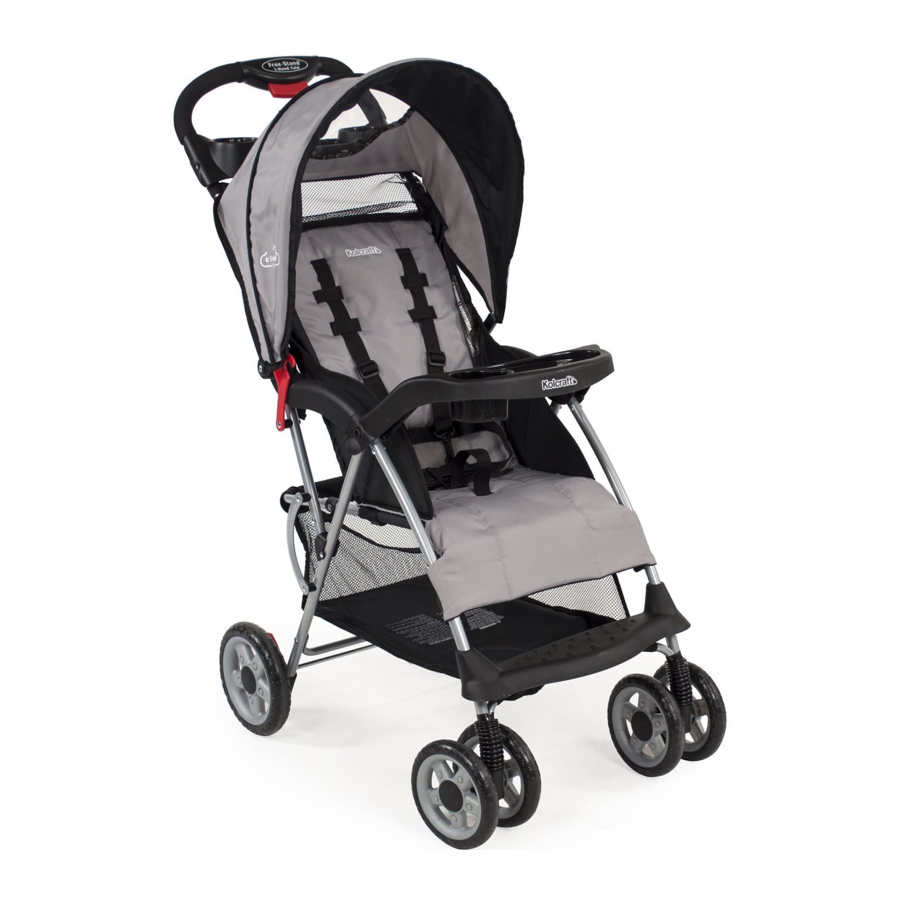

Kolcraft Cloud Plus, KL029 Manual

Also See for Cloud Plus:

Manual (12 pages)

Table of Contents

Contents

1 PARTS LIST
2 HOW TO PROPERLY USE YOUR NEW STROLLER
3 IMPORTANT SAFETY INFORMATION
4 CARE & MAINTENANCE
5 Documents / Resources
- 5.1 Download manual

Kolcraft Cloud Plus, KL029 Manual

PARTS LIST

To Open Stroller
To Open Stroller - Step 1

Attach handle to the frame. Slide the ends of the handle into the openings in the frame. 2 pins will snap into the bottom holes in the frame. Check to ensure that the handle is on securely by pulling up. The 2 pins will lock the handle in place.
Insert canopy with the mesh window side facing the handles.
Release the locking latch.
Unfold frame by pulling the handle and the seat in opposite directions. The trigger fold locks will shift up to lock stroller open.
Ensure frame side locks snap into place on both sides.

To Assemble Storage Basket

Insert the rear basket tube into the exposed basket frame behind the stroller seat until the spring buttons lock into place.
Attach the storage basket around the rear basket tube using the snaps.

To Assemble Front Wheels

Align front wheel assembly as shown. Tab must be facing away from stroller with arrow facing towards stroller.
Push wheel assembly onto stroller leg until it snaps into place.
Repeat for other wheel. Tug firmly on each wheel assembly to be sure wheels are securely in place.
NOTE: To remove, squeeze tab and pull wheel off.

To Assemble Rear Wheels

Turn stroller over as shown.
Position rear break assembly as shown, with brake levers pointing towards stroller handle.
Push rear break assembly onto rear leg tubes at the same time.
Make sure plastic tabs on rear break assembly lock into holes on rear legs as shown.
Slide a wheel onto the axle then slide a washer onto the axle.
Fit straight part of cotter pin through hole on axle as shown.
Line up each of the tabs in the hub cap with the slots in the wheel, snap hub cap into place.
Repeat for second side.

To Attach Front Tray

To prevent injury to your child, take care when inserting tray/bar into frame.

Position front tray over stroller frame.
Snap front tray over buttons on rails to secure.

To Attach Parent Tray

To prevent the stroller from becoming unstable or tipping, do not place more than 3 lbs (1.36 kg) in this tray. Do not place hot liquids in this tray. Hot liquids can burn your child.

To assemble, fit parent tray underneath handle.
Align parent tray holes with posts on handle and snap on.
To remove parent tray, pull each side up and out. For cleaning, parent tray is top rack dishwasher safe.

HOW TO PROPERLY USE YOUR NEW STROLLER

To Operate Brakes

Push levers on both rear wheels down to lock.
Pull levers up to unlock.

To Secure Child In Stroller Seat

Avoid serious injury from falling or sliding out. Always use restraint system. Do not use product without full 5-point Harness Restraint. Removing the shoulder straps will not adequately restrain child.

Lock foot brake to keep stroller from rolling.
Place child in stroller.
Hook shoulder straps to waist belt.
To fasten restraint system buckles - push together. Be sure both buckles are fastened to secure child safely.

To unsnap restraint system buckles - press tabs to release.
For proper fit, adjust shoulder straps and waist band as shown.

To Adjust Shoulder Strap Height
NOTE: For a secure fit, straps should be at or below the child's shoulder. Adjust straps to higher position as your child grows.

To readjust shoulder restraints, remove clips on restraint and thread through webbing on the seat to desired height.

To Recline Seat

To avoid finger entrapment or pinching, do not adjust the seat back while child is in the stroller.

To recline seat back, loosen belt.
To raise seat back, tighten belt.

To Adjust Canopy

For maximum canopy coverage, extend canopy tier.
When not in use, the extended canopy section tucks back under the main canopy.

To Fold Stroller

BEFORE FOLDING: Lock brakes.
Close canopy.
With one foot pushing gently down on the rear brake lever, pull upwards on folding triggers on both sides of frame to disengage from lock position.
For the most compact fold, pull on the underside of the child tray after disengaging frame from lock position.
Engage locking latch.
NOTE: For the most compact fold, you may need to adjust the front wheel position as shown.

IMPORTANT SAFETY INFORMATION

Avoid serious injury from falling or sliding out. Always use Restraint System.
Your child's safety depends on you. Proper stroller use cannot be assured unless you follow these instructions. DO NOT USE STROLLER UNTIL YOU READ AND UNDERSTAND THESE INSTRUCTIONS.

How to Keep Your Child Safe While Using this Stroller

Adult assembly required.
Never leave your child unattended while in stroller. Accidents can happen quickly while your back is turned. You must always keep your child in view while your child is in the stroller, even when sleeping. Do not use this product as a bed. Your child may become tangled in straps or pads and suffocate.
Always use restraint system to keep child from standing up or falling out of the stroller.
Always lock the stroller open before allowing your child in or near the stroller. This prevents injuries caused by stroller collapsing.
Only use this stroller with children who weigh less than 50 lbs. (22.67 kg) and are no more than 40 inches (1 meter) tall. Use by larger children may damage the stroller, or cause a hazardous unstable condition to exist.
Always set the wheel brakes when stroller is not moving, especially on an incline. This prevents the stroller from rolling away.

What to Avoid While Using this Stroller

Always balance the weight of the stroller evenly. To prevent the stroller from becoming unstable, do not place parcels or accessory items on the stroller canopy, seat, or over the handle. Do not allow children to play with or hang onto the stroller.
To prevent the stroller from becoming unstable, do not place more than 2 lbs. on the child tray.
Never use this stroller on stairways or escalators.
This is not an exercise stroller! Do not use this product while running, jogging, in-line skating or participating in other athletic activities.
Take care when folding and unfolding to prevent finger pinching.
Make sure children are clear of any moving parts if you adjust the stroller, otherwise they may be injured.
DO NOT allow children to climb into stroller unassisted. Stroller may tip over and injure child.
Only use replacement parts supplied by the manufacturer.
DO NOT put child in basket.
DO NOT lift by tray/bar or toys.
DO NOT use any infant car seats with this product. Serious injury could occur.
To prevent the stroller from becoming unstable or tipping do not put more than 10 lbs (4.54 kg) in the basket.
Product may become unstable if a storage bag other than the one recommended by the manufacturer is used.

CARE & MAINTENANCE

Clean metal parts with a damp cloth and wipe dry.
Clean woven fabric or vinyl parts with mild soap and water solution.
Dry wet stroller with a soft cloth to prevent rusting.
When storing stroller, never stack other items on top of it; this may damage the stroller.
Periodically check for worn parts, loose screws, torn materials or stitching.
Replace any damaged parts immediately.

Please direct any comments, questions or replacement part requests to:
Kolcraft^® Consumer Service Department
1100 W Monroe St. Chicago, IL 60607
1-800-453-7673 in USA & Canada, 1-312-361-6315 outside USA & Canada
Central Standard Time, 8 am-5 pm Monday - Thursday, 8 am - 3 pm Friday
Model #s: KL029 e-mail: customerservice@kolcraft.com
