Connecting the System

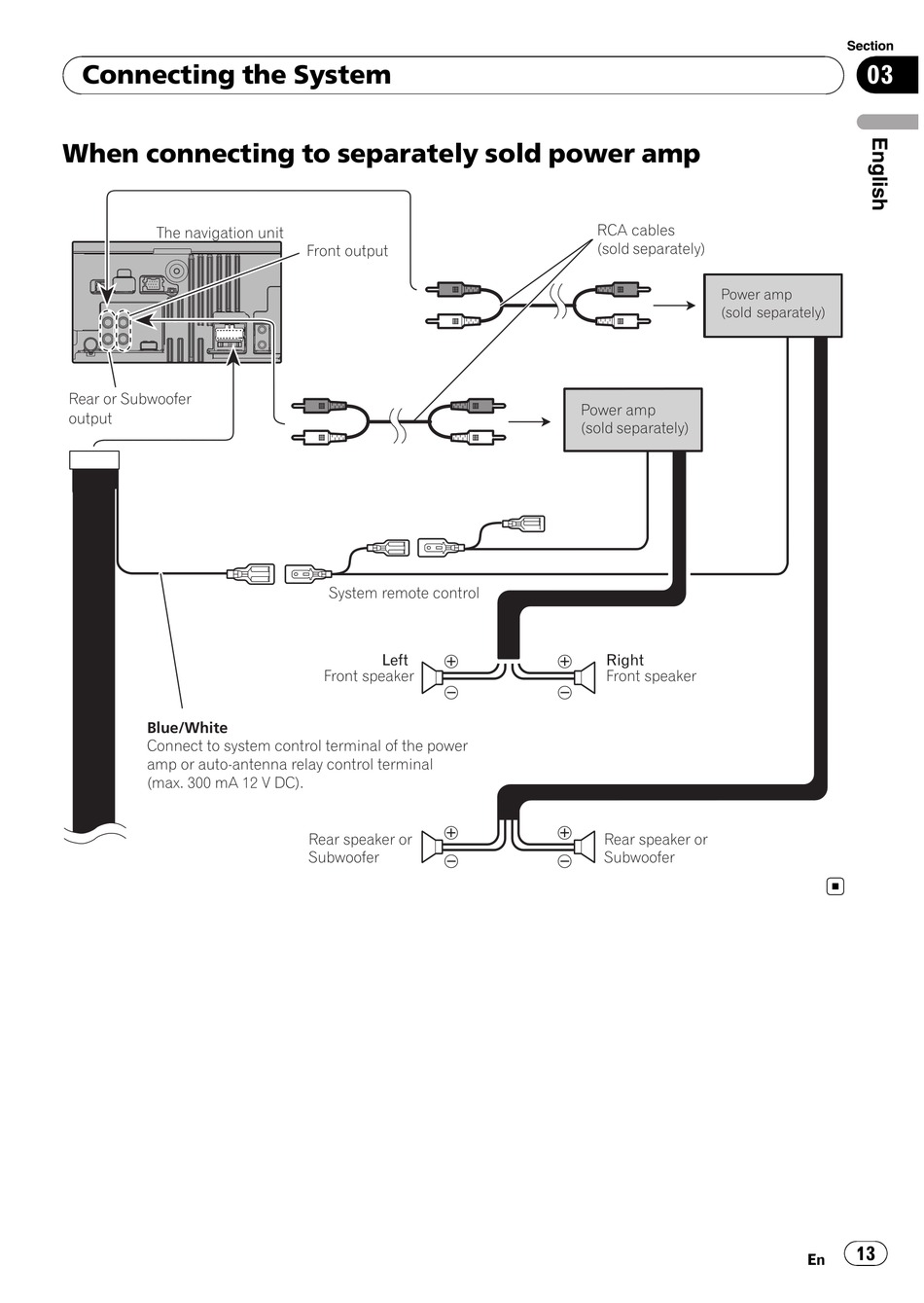

When connecting to separately sold power amp
The navigation unit
Rear or Subwoofer
output
Blue/White
Connect to system control terminal of the power
amp or auto-antenna relay control terminal
(max. 300 mA 12 V DC).
Front output
System remote control
Left
Front speaker
Rear speaker or
Subwoofer
RCA cables
(sold separately)
Power amp
(sold separately)
Power amp
(sold separately)
Right
Front speaker
Rear speaker or
Subwoofer
Section
03
13
En
