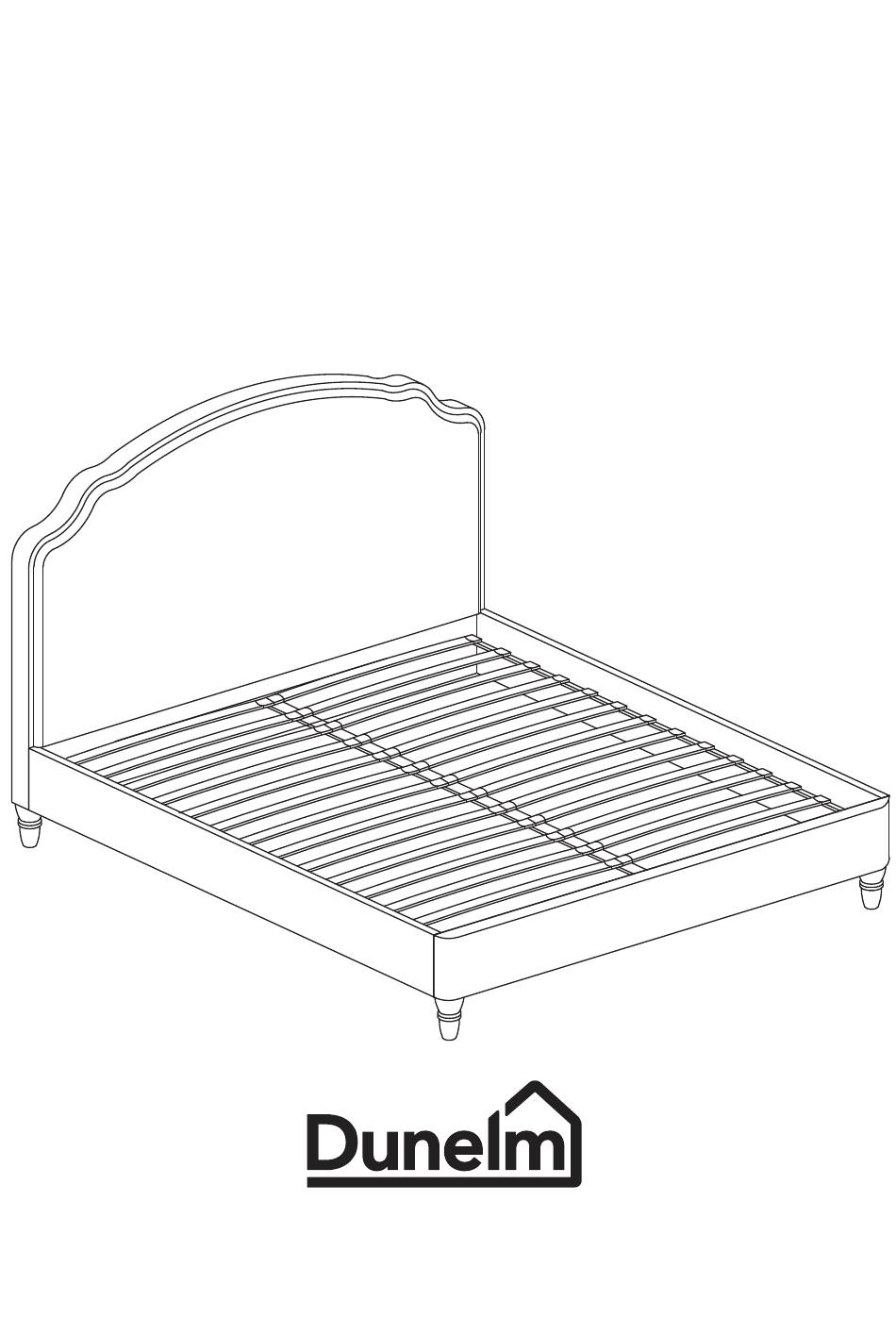

- Page 1 Ella Timeless Instr uctions www.dunelm.com...
- Page 2 Dear Customer Thank you for purchasing your new piece of furniture from Dunelm. We put a lot of effort in the design and construction of our products to ensure they set the standard for quality, durability and ease of assembly.
- Page 3 Component Parts Supplied Dimensions Dimensions Description Description Double:1490x1010x100 Double:1920x40x20 Centre support bar Headboard King :1640x1010x100 King :1920x40x20 Double:1490x200x70 250x25 Centre support leg Footboard King :1640x200x70 Double:1370x20x10 Double:1920x200x30 Cross bar Siderail King 1520x20x10 King :2020x200x30 Double:680x53x9 140x60 Slat King :755x53x 9 www.dunelm.com...
- Page 4 Parts and Fittings Fittings to scale (actual size） mm 10 30 40 Dimensions Bolt M8*30mm Flat washer 8*22mm Spring washer 8*12mm Bolt M6*50mm Allen key Allen key Spanner Spanner Double: Double plastic cap King: Double: Single plastic cap King: www.dunelm.com...
- Page 5 STEP 1 STEP 2 Allen Key M8*30 8pcs 8*22 8pcs 8*12 8pcs www.dunelm.com...
- Page 6 STEP 3 M8*30 4pcs M8 4pcs Allen Key Spanner STEP 4 Allen Key M8*30 4pcs www.dunelm.com...
- Page 7 STEP 5 M6*50 2pcs M6 2pcs Allen Key Spanner Double:Single plastic cap 30pcs Double:Double plastic cap 15pcs King :Single plastic cap 32pcs King :Double plastic cap 16pcs...
-
Page 8: Product Dimensions
Product Dimensions Double :1490 King :1640 1150 Double:2090 King :2190 Overall Dimensions Double bed: H115 x W149 x D209 cm King bed:H115 x W164 x D219 cm... -
Page 9: Care Advice
When in use the legs will create the support required Do not drag your assembled bed. Always remove the mattress and lift the bed with 2x people. After moving always check that the centre support legs are securely fixed and in a vertical position www.dunelm.com...
