Summary of Contents for Dunelm Mason Buttoned

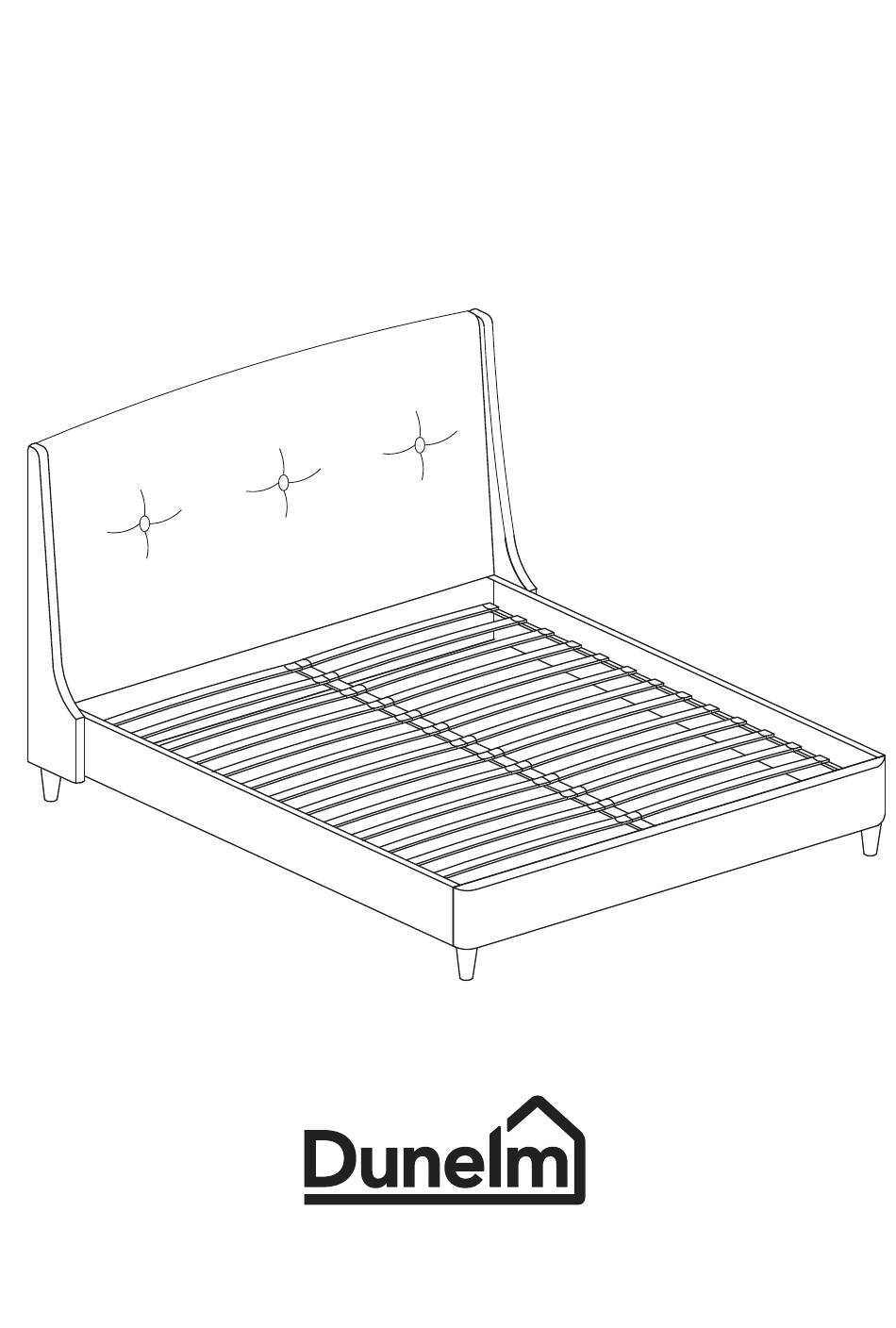

- Page 1 Buttoned Instr uctions www.dunelm.com...
- Page 2 Dear Customer Thank you for purchasing your new piece of furniture from Dunelm. We put a lot of effort in the design and construction of our products to ensure they set the standard for quality, durability and ease of assembly.
- Page 3 Dimensions Dimensions Description Description Double:1440x1010x120 Double:1920x40x20 Centre support bar Headboard King :1590x1010x120 King :1920x40x20 Double:1440x200x70 250x25 Centre support leg Footboard King :1590x200x70 Double:1370x20x10 Double:1920x200x30 Cross bar Siderail King 1520x20x10 King :2020x200x30 Double:680x53x9 140x60 Slat King :755x53x 9 1010x240x40 Wing www.dunelm.com...
- Page 4 10 20 30 40 50 60 70 80 90 100 Dimensions Bolt M8*30mm Bolt M8*50mm Flat washer 8*22mm Spring washer 8*12mm Bolt M6*50mm Allen key Allen key Spanner Spanner Double: Double plastic cap King: Double: Single plastic cap King: www.dunelm.com...
- Page 5 STEP 1 Allen Key M8*50 6pcs 8*22 6pcs 8*6 8pcs STEP 2 www.dunelm.com...
- Page 6 STEP 3 Allen Key M8*30 8pcs 8*22 8pcs 8*12 8pcs STEP 4 M8*30 4pcs M8 4pcs Allen Key Spanner www.dunelm.com...
- Page 7 STEP 5 M8*30 4pcs Allen Key STEP 6 Spanner Allen Key M6*50 2pcs M6 2pcs Double:Single plastic cap 30pcs Double:Double plastic cap 15pcs King :Single plastic cap 32pcs King :Double plastic cap 16pcs...
- Page 8 Product Dimensions Overall Dimensions Double bed: H117 x W151 x D211 cm King bed:H117 x W166 x D221 cm...
- Page 9 When in use the legs will create the support required Do not drag your assembled bed. Always remove the mattress and lift the bed with 2x people. After moving always check that the centre support legs are securely fixed and in a vertical position www.dunelm.com...
