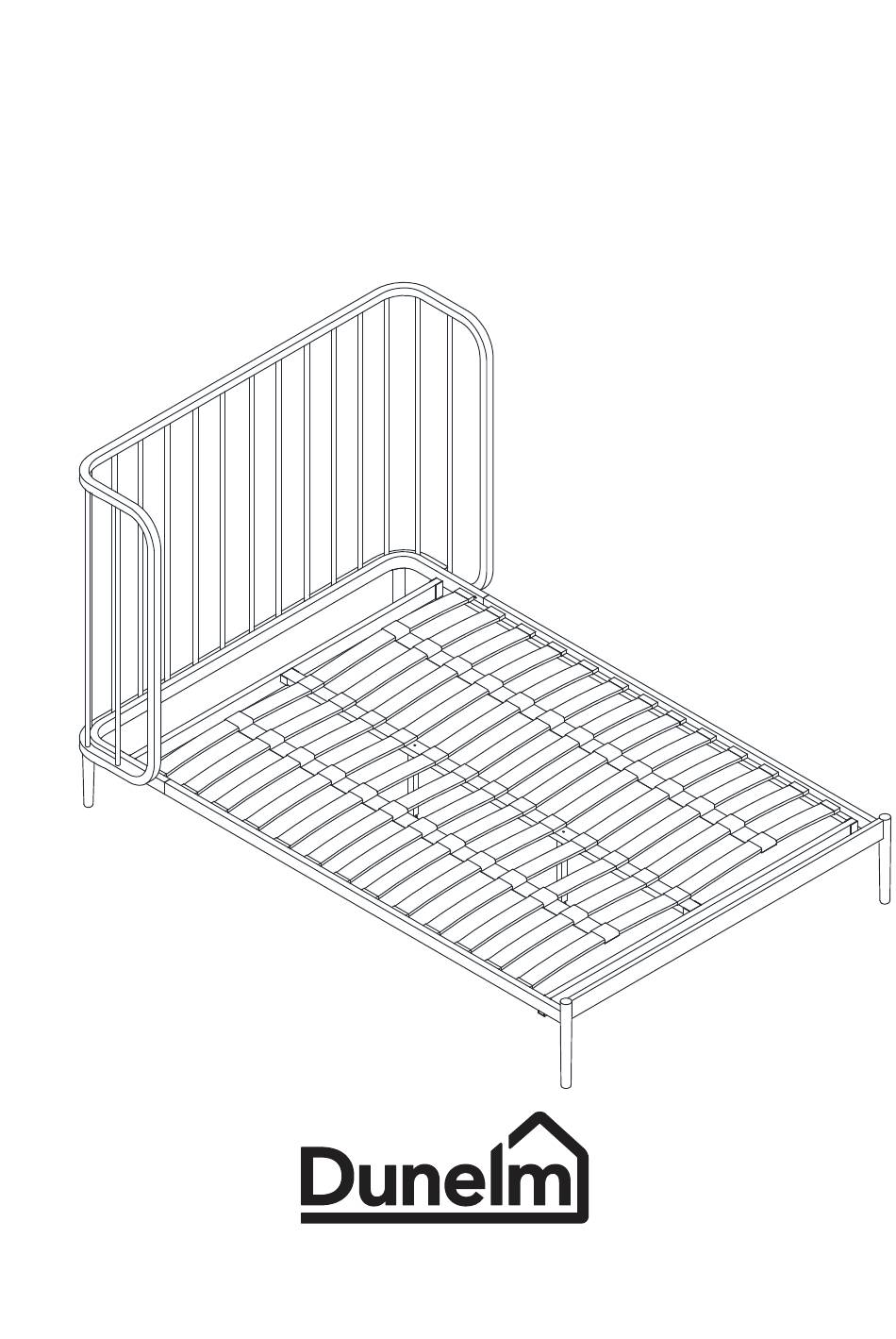

- Page 1 Elliot Bed Instructions www.dunelm.com...
- Page 2 Dear Customer Thank you for purchasing your new piece of furniture from Dunelm. We put a lot of effort in the design and construction of our products to ensure they set the standard for quality, durability and ease of assembly.
- Page 3 Description Description Double:1500x790x290 Double:1800x50x45 Headboard Side rail King:1650x790x290 King:1900x50x45 Double:340x100x50 Double:1435x330x105 Bed leg Footboard King:340x100x50 King:1585x330x105 Double:1800x50x45 Double:235x25x25 Support leg Side rail King:1900x50x45 King:235x25x25 Double:1370x50x25 Double:1700x50x25 Centre support bar Cross bar King:1520x50x25 King:1800x50x25 Double:680x62x9 Double:1700x30 Slat Belt King:755x62x9 King:1800x30 www.dunelm.com...
- Page 4 Fittings to scale (actual size） mm 10 20 30 40 50 60 70 80 90 100 Dimensions Bolt M6*20mm Bolt M8*20mm Bolt M8*45mm Flat washer 8*18mm Allen key Single plastic cap Ｆ Double plastic cap Ｇ Allen key Ｈ www.dunelm.com...
- Page 5 STEP 1 Ｈ Ｈ 8*18 4pcs 6*18 8pcs M8*20 4pcs Allen Key STEP 2 Ｈ Allen Key M8*20 1 4 pcs 8*18 16pcs M8*45 2 pcs www.dunelm.com...
- Page 6 STEP 3 Ｄ Allen Key M6*20 4pcs 8*18 4pcs STEP 4 Allen Key M6*20 2pcs 8*18 2pcs www.dunelm.com...
- Page 7 STEP 5 Allen Key M8*45 2pcs 8*18 8pcs STEP 6 Single plastic cap Double plastic cap www.dunelm.com...
-
Page 8: Product Dimensions
Product Dimensions Overall Dimensions Double bed: H102 x W150 x D201cm Queen bed: H 102 x W165 x D211cm... -
Page 9: Care Advice
When in use the legs will create the support required Do not drag your assembled bed. Always remove the mattress and lift the bed with 2x people. After moving always check that the centre support legs are securely fixed and in a vertical position www.dunelm.com...
