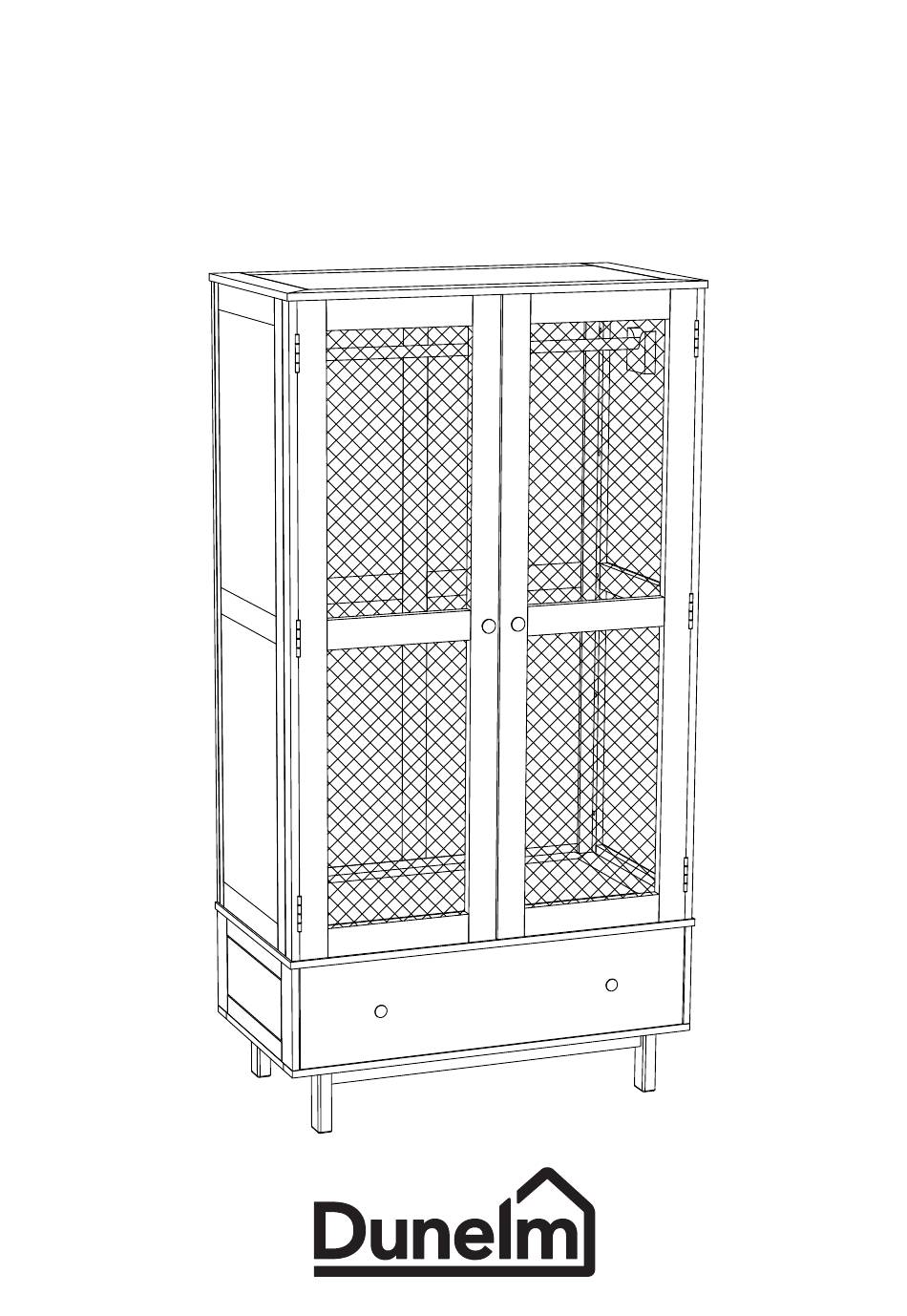

- Page 1 Indi Double Wardrobe ASSEMBLY INSTRUCTIONS www.dunelm.com...
- Page 3 142.5 x 96 x 2.6cm 142.5 x 46.2 x 3.6cm 97 x 52.5 x 5.1cm 90.8 x 45.2 x 4.1cm 70.2 x 50 x 5.6cm 97 x 50.5 x 26.4cm 46.6 x 14.5 x 3.2cm 92 x 2.6 x 2.6cm www.dunelm.com...
- Page 4 6 x 35mm 6 x 30mm 6 x 60mm 17mm Anti Tip Kit...
- Page 5 Exploded view www.dunelm.com...
-
Page 6: Assembly Instruction
(C) and tighten using the Allen key (D). DETAIL A SCALE 1 : 1 Step 2: Align the side panels with the back panel and use bolt (A) with washer (C) and tighten using the Allen key (D). DETAIL A SCALE 1 : 1 www.dunelm.com... - Page 7 SCALE 1 : 1 Step 4: Place the top (3) in the correct position as shown in the image and use bolt (A) with washer (C) and tighten using Allen key (D) to assemble. DETAIL A SCALE 1 : 1 www.dunelm.com...
- Page 8 DETAIL A SCALE 1 : 1 Step 6: Align the drawer box with the wardrobe carcass and use bolt (B) with washer (C) and tighten using Allen key (D) to assemble. DETAIL A SCALE 1 : 1 www.dunelm.com...
- Page 9 Step 7: Using at least 2 people, rotate the wardrobe so it is standing upright and then place the hanging bar on the brackets. Note: Ensure all bolts are fully tightened. Note: Ensure all bolts are fully tightened. Step 8: Use the provided tip kit to fix to the wall. www.dunelm.com...
- Page 10 Assembly instruction 97cm 52.5cm 144.1cm 185cm 26.4cm 40.9cm 14.5cm www.dunelm.com...
