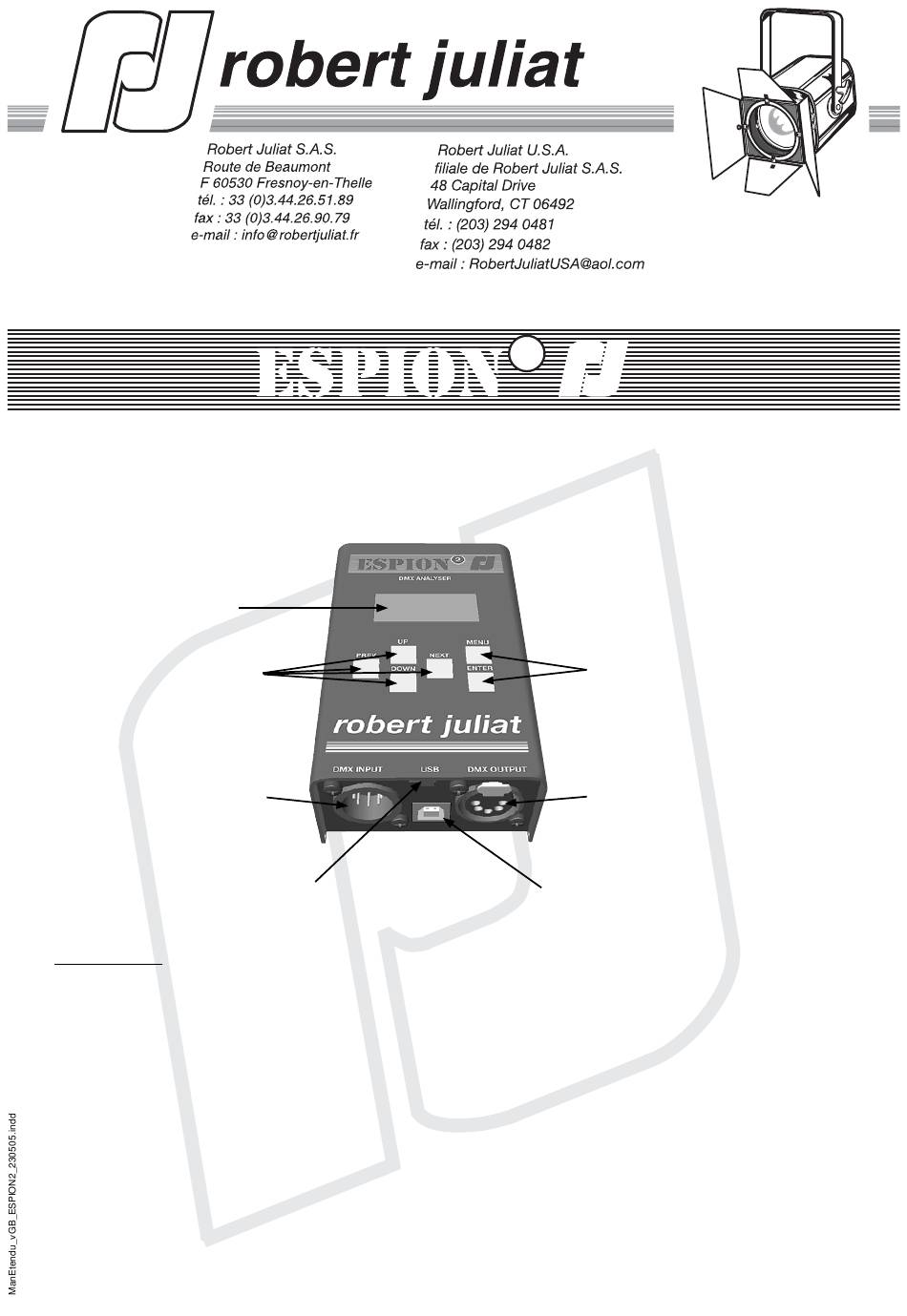

L.C.D. screen
Navigation keys
XLR "DMX IN"
On/Off switch
Introduction
ESPION 2 is made with a USB connexion, it allows it a direct link to a Windows XP Computer.
It also provide power to the ESPION 2 when connected, and so, do not use it own batteries.
The main On/Off switch select where the power come from (batteries or USB).
For the USB connexion, a little software is under working, for the moment it gives you the opportunity to
drive the ESPION 2 DMX frame (Cue sheet, DMX in/DMX out information, manual pots).
We need to have your feed back about it, that's why, for download the software package, we ask you to
give us your name, address, and ESPION 2 serial number.
Feel free to give us your request : info@robertjuliat.fr
DN30754700
Enhanced user's manual
www.robertjuliat.fr
2
Selection keys
XLR "DMX OUT"
U.S.B plug
Version 5 - 23/05/05
1/10
Advertisement
Related Manuals for Robert Juliat ESPION 2
Summary of Contents for Robert Juliat ESPION 2
- Page 1 U.S.B plug Introduction ESPION 2 is made with a USB connexion, it allows it a direct link to a Windows XP Computer. It also provide power to the ESPION 2 when connected, and so, do not use it own batteries.
- Page 2 This operation will show the DMX input values. If the DMX is not present, the input screen will show: "no DMX on input". If it detects a valid DMX, the ESPION 2 will show the DMX values in fi ve different modes: • 8 bar charts are shown on the bottom line •...
- Page 3 Function Menu Back to main menu Enter Select next view mode Next Next channel page (page is the number of channels shown) Prev Previous channel page (page is the number of channels shown) Next channel Down Previous channel 2 - Rig Check This operation sends out one DMX channel with an adjustable value.
- Page 4 Function Menu Back to main menu Enter Select the current option and go to the Edit menu Next Next option Prev Previous option Next option Down Previous option 3.1 - Edit DMX scene Here is the place where you can prepare a memory to record, or just prepare a light balance. Function Menu Back to previous menu...
- Page 5 4 - Test Fixture With this operation, it is easy to control a fi xture (multi channel unit like a moving head). The display's top line shows the current manufacturer and the bottom line shows the current fi xture type. Function Menu Back to main menu...
- Page 6 4.2 - Fixture Control In this menu you can select the fi xture operation. • Control (parameters) • Run Macro • Multiple Fixtures Function Menu Back to channel select menu (4.1) Enter Select the current option and goto the Edit menu Next Next option Prev...
- Page 7 4.5 Multiple fi xtures You can control at the same time identical fi xtures with a different DMX address. The top line gives the number of fi xtures to control. The bottom line gives the DMX Channel step between two fi xtures. (ex : Align=20 : the fi...
- Page 8 5.2 - Edit soft patch The display shows the selected output channels and the connected input channels. Function Menu Back to previous menu Enter Store the settings and go back to previous menu Next Select the next output channel Prev Select the previous output channel Change the connected input channel up Down...
- Page 9 This tool is made to help you to confi gure the old dimmers rack using dip switch to set the DMX address (1, 2, 4, 8, 16, .., 128, 256). You just have to indicate the address you want to reach, the ESPION 2 will give you the switches to put on. Function...
- Page 10 • "Language", (French / English). • "BacklOff", gives the time after the backlight will go off (10sec-10min). • "BacklLev", you can choose the backlight level (25% to full). • "ESPION 2 v#.##" shows the actually ESPION 2 software version. Function Menu...
