LTU-LR Quick Start Guide

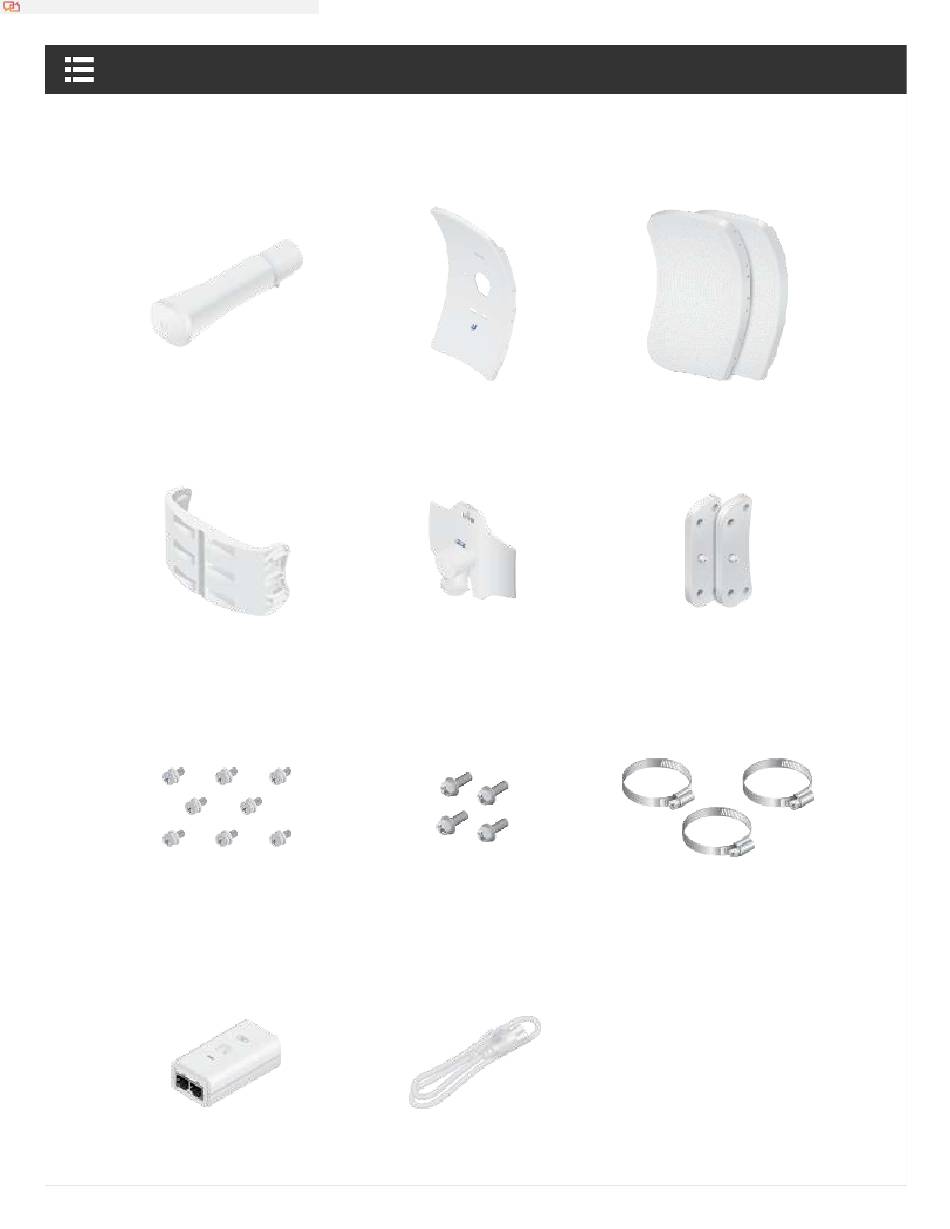

Package content
power horn
Side reflector panels
center reflector panel
(qty: 2)
Mounting bracket
Back case
Pivot Panels (Qty: 2)
M4 SEM screws (qty: 8)
M8 SEM screws (qty: 4)
Metal strips (qty: 3)
Gigabit PoE (24V, 0.5A) with
Power cord

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LTU-LR and is the answer not in the manual?

Questions and answers

Related Manuals for Ubiquiti LTU-LR

Summary of Contents for Ubiquiti LTU-LR

  • Page 1 Translated from Spanish to English - www.onlinedoctranslator.com LTU-LR Quick Start Guide Package content power horn Side reflector panels center reflector panel (qty: 2) Mounting bracket Back case Pivot Panels (Qty: 2) M4 SEM screws (qty: 8) M8 SEM screws (qty: 4) Metal strips (qty: 3) Gigabit PoE (24V, 0.5A) with...

  • Page 2: Installation Requirements

    Mounting bracket LTU-LR Quick Start Guide installation requirements PtMP LTU access point (such as the LTU-Rocket model). Phillips screwdriver 13mm wrench 8mm socket wrench or screwdriver Surge protection must be used on all outdoor installations. We recommend that you use two Ethernet surge protectors (model ETH-SP-G2), one near the device and the other at the building entry point.

  • Page 3: Device Installation

    LTU-LR Quick Start Guide LAN LEDs The LED indicator will be solid blue when the device is connected to an Ethernet network through the Ethernet port and will blink if there is activity. Power LEDs The LED will light blue when the device is connected to a power source.
  • Page 4 LTU-LR Quick Start Guide...
  • Page 5 LTU-LR Quick Start Guide...
  • Page 6 LTU-LR Quick Start Guide...
  • Page 7 LTU-LR Quick Start Guide...
  • Page 8 LTU-LR Quick Start Guide...
  • Page 9 LTU-LR Quick Start Guide...
  • Page 10 LTU-LR Quick Start Guide pole mount...
  • Page 11 LTU-LR Quick Start Guide...
  • Page 12 LTU-LR Quick Start Guide...
  • Page 13 LTU-LR Quick Start Guide...
  • Page 14 LTU-LR Quick Start Guide...

  • Page 15: Power Connection

    LTU-LR Quick Start Guide Power connection WARNING:The port switch must meet the power specifications listed in section"Specifications"...
  • Page 16 LTU-LR Quick Start Guide EITHER Optional Access to the configuration interface 1. Check that your host is connected via Ethernet to the device. 2. Configure the Ethernet adapter on your host system with a static IP address on the 192.168.1.x subnet.
  • Page 17 LTU-LR Quick Start Guide 4. Select your language and country. You must agree to the Terms of Use, EULA and Privacy Policy to use the product. Click Continue. The LTU configuration interface will open allowing you to customize your settings as needed. To set up the hotspot from your device, go to...

  • Page 18: Installer Compliance Responsibility

    LTU-LR Quick Start Guide 3. Click Find AP. 4. The device will search for nearby access points. Click Select on the appropriate access point. To scan again, click Scan. 5. Follow the instructions on the screen. Installer Compliance Responsibility Devices must be professionally installed and it is the responsibility of the professional installer to ensure that the device is operational in accordance with country specific regulatory requirements.

  • Page 19: Specifications

    LTU-LR Quick Start Guide Antenna Select your antenna from the list. If the option to calculate EIRP is enabled, the transmission output power is automatically adjusted to comply with the applicable country regulations. In a custom antenna setup, the antenna gain is entered manually.
  • Page 20 LTU-LR Dimensions 512.5 x 385.75 x 258.3mm (20.18 x 15.19 x 10.17") 1,360 kg (2,998 lb) Weight with mount 1,735 kg (3,825 lb) (1) 10/100/1000 Ethernet port network interface UV stabilized plastic exterior Material 8.5W maximum power consumption Power supply 24V, Gigabit PoE adapter, 0.5A...

  • Page 21: Electrical Safety Information

    indications of s L TU-LR fast io went 1. Read, follow and save these instructions. 2. Pay attention to all warnings. 3. Only use the devices or accessories indicated by the manufacturer. WARNING:Do not use this product in a place where it may be submerged in water. WARNING:Avoid using this product during a lightning storm.
  • Page 22 art responsible for went The changes or modifications either either either compliance could void the user's authority to operate the equipment. either This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions. 1.

  • Page 23: Declaration Of Conformity

    LTU-LR Quick Start Guide Brazil Note:This equipment is not intended for protection against harmful interference and may not cause interference in duly authorized systems. CE marking The CE marking of this product indicates that the product complies with all applicable directives.
  • Page 24 LTU-LR Quick Start Guide © 2021 Ubiquiti Inc. All rights reserved.
