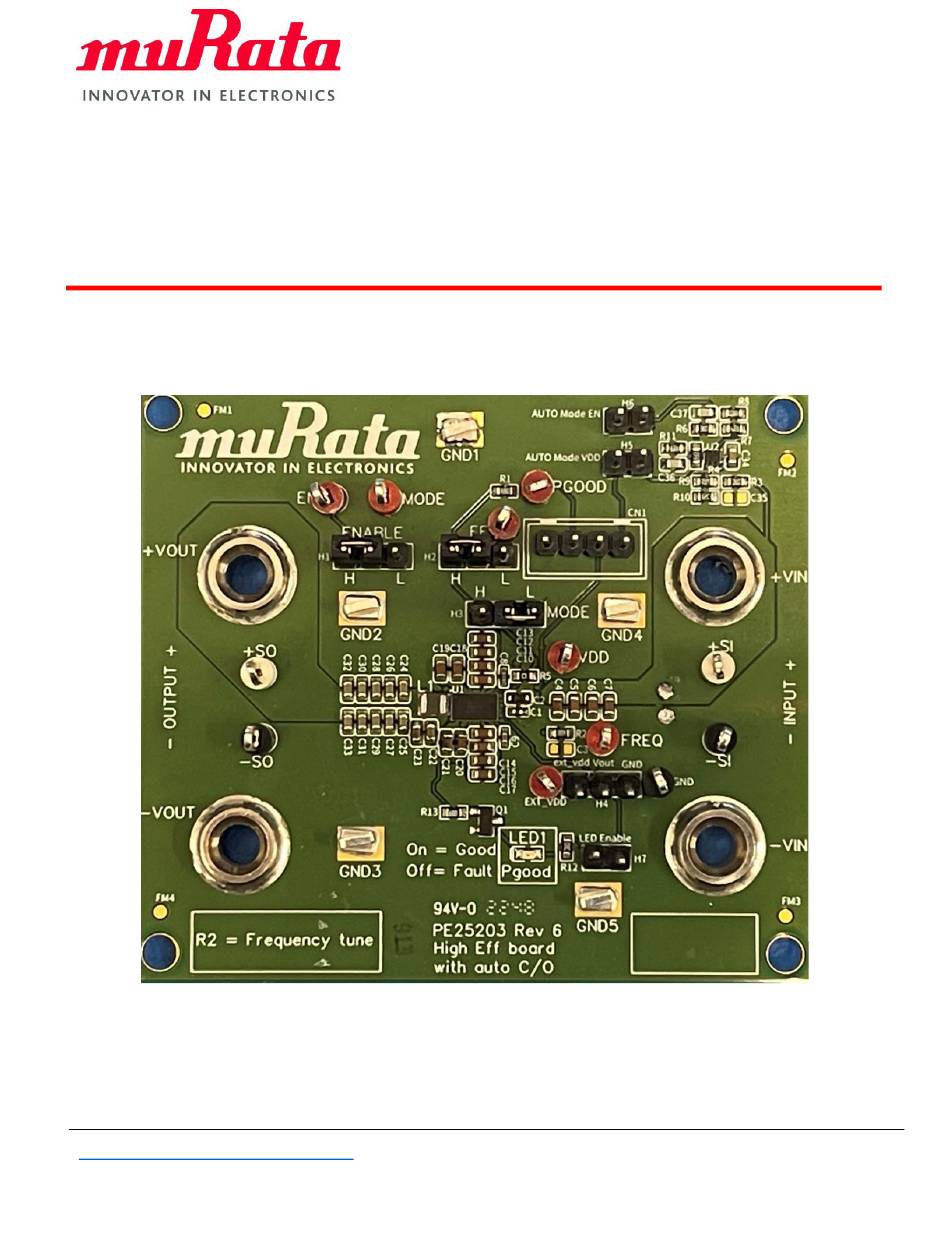

- Page 1 PE25203 Evaluation Kit (EVK) User’s Manual 4A High Efficiency 5.7–15V Front-End DC-DC Converter http://www.murata.com/products/power Copyright ©2021 Murata Manufacturing Co., Ltd. and pSemi Corporation, a Murata Company. All rights reserved. DOC-102909-2 (05/2021) Page 1 of 11...
- Page 2 The PE25203 is an ultra-high efficiency front-end charge pump that is configurable to divide down an input voltage by two or three and deliver up to 4A output at up to 99% peak efficiency. The PE25203 supports an input voltage range of 5.7V to 15V and is available in a WLCSP package.

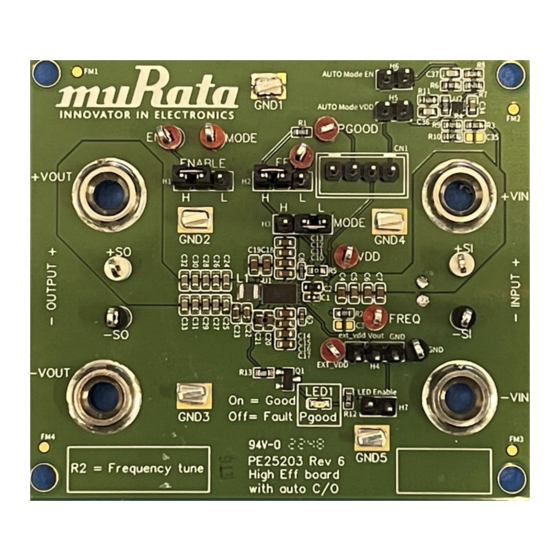

- Page 3 Quick Start Guide Quick Start Overview The evaluation board is designed to ease customer evaluation of the PE25203 DC-DC converter. This section guides you through configuring the hardware and the startup procedures. Evaluation Board Overview The evaluation board is designed to ease customer evaluation of Murata’s products.
- Page 4 High Efficiency Front-End DC-DC Converter PCB headers The PE25203 evaluation kit (EVK) has two types of PCB headers. 3-way PCB headers are used to configure the EVK. 2-way PCB headers are used to enhance the functionality of the EVK. Configuration PCB headers H2 and H3 PCB headers settings are loaded at IC power up.
- Page 5 Table 2. 2-way PCB header information. Sensing points Table 2 includes all the test points (TP) that can be found in the PE25203 evaluation kit (EVK). The aim of each TP is to facilitate users the capture of waveforms from critical signals, To make accurate measurements from input and output voltages, it is critical to use the SO and SI test points already included in the PE25203 evaluation kit (EVK).
- Page 6 Figure 3. EVK Connection Example. Connections for only voltage measurements. Figure 4. PE25203 EVK connection to measure voltage. http://www.murata.com/products/power Copyright ©2021 Murata Manufacturing Co., Ltd. and pSemi Corporation, a Murata Company. All rights reserved. DOC-102909-2 (05/2021) Page 6 of 11...
- Page 7 High Efficiency Front-End DC-DC Converter Connections for voltage and current measurements Figure 5. PE25203 EKV connections to measure voltage and current. http://www.murata.com/products/power Copyright ©2021 Murata Manufacturing Co., Ltd. and pSemi Corporation, a Murata Company. All rights reserved. DOC-102909-2 (05/2021) Page 7 of 11...
-
Page 8: Hardware Operation
If the EVK is started with a load, it may not start due to the soft start current limit. http://www.murata.com/products/power Copyright ©2021 Murata Manufacturing Co., Ltd. and pSemi Corporation, a Murata Company. All rights reserved. DOC-102909-2 (05/2021) Page 8 of 11... -
Page 9: Technical Resources
PC-compatible software file. Trademarks are subject to trademark claims. http://www.murata.com/products/power Copyright ©2021 Murata Manufacturing Co., Ltd. and pSemi Corporation, a Murata Company. All rights reserved. DOC-102909-2 (05/2021) Page 9 of 11... -
Page 10: Limitation Of Applications
5. Do not allow our product to be exposed to excess moisture under any circumstances. http://www.murata.com/products/power Copyright ©2021 Murata Manufacturing Co., Ltd. and pSemi Corporation, a Murata Company. All rights reserved. DOC-102909-2 (05/2021) Page 10 of 11... -
Page 11: Sales Contact
Disclaimers The information in this document is believed to be reliable. However, Murata and its affiliates do not assume any liability for the use of this information or use of this product. Use shall be entirely at the user’s own risk. No patent rights or licenses to any circuits described in this document are implied or granted to any third party.
