- Page 1 Pyroelectric Infrared Sensor Evaluation Board:IMX-070, IMX-060 Quick Start Guide murata.com Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 19 June 2017 Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 19 June 2017...

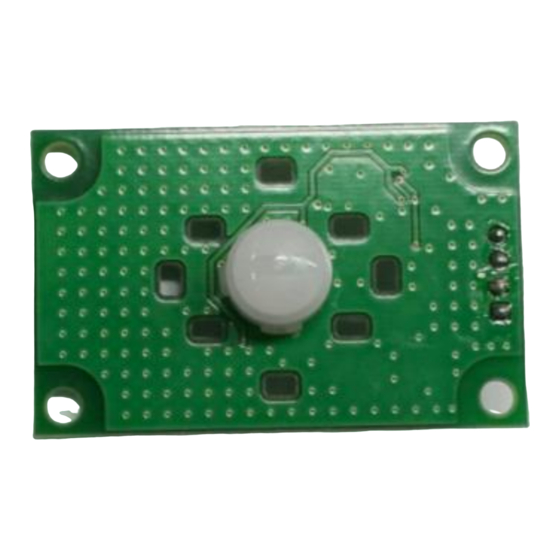

- Page 2 It's a Evaluation Board to know how Pyroelectric Infrared Sensor(IRA-S210ST01) working and performance. – Specifications • Rated Voltage : 3.3V • Output signal : analog, comparator • Dimension : 48×30mm Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 19 June 2017...
- Page 3 Amplifier and comparator circuits on evaluation board amplifies sensor’s output signal and generate digital High/Low signal. (Next page) Amplifier & Comparator Circuit (Please make sure lens is attached on board.) Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 19 June 2017...
- Page 4 COUT change with GPIO external COUT interruption and IRQ handler sets a flag which is periodically monitored in main loop.(Next page) Infra-Red AOUT Comparators COUT (window (H/L) comparator) Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 19 June 2017...
- Page 5 Software Operation : Sample Code Flow Chart Measurement Start Interruption Handling f_PIR == true F_PIR = true Display Done “IR change detected!!” F_PIR = false Wait 100ms Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 19 June 2017...
- Page 6 Pin Connection Pin connection to each CPU board is also instructed in sample code. Evaluation board Arduino UNO 3.3V COUT AOUT Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 19 June 2017...
