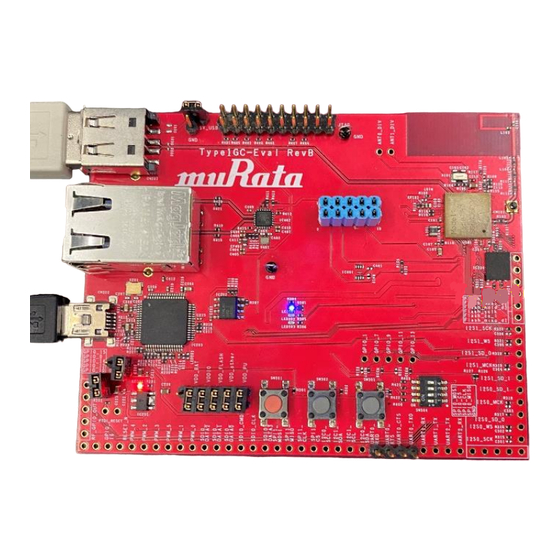

- Page 1 Document No. N1-5002 Type1GC/1PS Evaluation Board Quick Start Guide Type1GC/1PS Evaluation Board Quick Start Guide Document Number: N1-5002 Version: Release Date: 2021/2/26 Murata Manufacturing Co., Ltd. Page 1...
- Page 2 Type1GC/1PS Evaluation Board Quick Start Guide Revision History Revision Number Release Date Comments Revision 1.0 2018/4/16 Initial Revision 1.1 2018/5/16 EVB Revised Revision 2.0 2021/2/26 Update for .patch platform file Page 2...
-
Page 3: Table Of Contents
Type1GC/1PS Evaluation Board Quick Start Guide Contents About this Document ......................... 4 Purpose and Scope ........................4 1.1. Document Conventions ......................4 1.2. Evaluation Board ........................4 Setting up the WICED Studio and Building a Demo Application ............. 5 Running scan Application ......................9 Page 3... -
Page 4: About This Document
1. About this Document 1.1. Purpose and Scope This document provides instructions to set up Murata Type1GC EVB. Although Type1GC is supported by WICED-SDK, some modifications will be required when using our EVB. We provide the modification as a “platform file”. -
Page 5: Setting Up The Wiced Studio And Building A Demo Application
Type1GC/1PS Evaluation Board Quick Start Guide 3. Setting up the WICED Studio and Building a Demo Application The WICED SDK is available for download from the Cypress WICED website. To use the SDK, the following steps must be performed: Download WICED-SDK from the WICED website. https://www.cypress.com/products/wiced-software Install the WICED-SDK. - Page 6 Type1GC/1PS Evaluation Board Quick Start Guide Apply the patch file provided by Murata. Right click on 43xxx_Wi-Fi in Project Explorer, then select Team – Apply Patch… Click Browse button and select the patch file, then click Finish button. Page 6...
- Page 7 Type1GC/1PS Evaluation Board Quick Start Guide Build and download the application. Click “New Make Target” button. (If you cannot click this button, click “clean” in below list) “Create Make Target” window will appear. Input the following text to the “Target name” field. snip.scan-MurataType1GC download run Select “OK”...
- Page 8 Type1GC/1PS Evaluation Board Quick Start Guide Double-click on the Make Target “snip.scan-MurataType1GC download run” to build the application. Note: It will take some minutes for first building. Building progress will be displayed on the window of the “Studio Console”. “Build complete” indicates that the building and downloading of the application has been successful. Page 8...
-
Page 9: Running Scan Application
Type1GC/1PS Evaluation Board Quick Start Guide 4. Running scan Application To verify the application which is downloaded in section 3, you need to launch a terminal software such as Tera Term. Please select [Setup] > [Serial Port…] in the menu bar to setup serial port. Please use the following settings for the COM port connection.
