FEATURES

Accommodates 3½ and 4½ digit meters
Gain (span) and offset (zero) adjustments for
DMS-30 meters
Input divider network for high voltages
Operate meter and board from +5V supply or
9/12V battery
Solder gaps for decimal placement
Same size as DMS-30/40 Series meters
2.02" (51.31mm)L x 0.83" (21.08mm)W
SIMPLIFIED SCHEMATIC
NOTE:
Components are user-supplied and not part
of the standard product.
For full details go to
www.murata-ps.com/rohs
Multi-Purpose Application Board for DMS-30 & DMS-40 Series Meters

PRODUCT OVERVIEW

The DMS-EB Application Board covers many common panel meter applications while providing
simple signal and power I/O terminations (via a standard MOLEX connector) for DATEL's DMS-30 and
DMS-40 Series, LED/LCD Display, Digital Panel Voltmeters. The unique plug-and-play design of the
DMS-EB makes changing from application to application and meter to meter quick, easy and inexpensive.
The highly versatile DMS-EB has provisions for such common applications as attenuation of high
input voltages, gain (span) and offset (zero) adjustments, 9/12V battery operation, and direct decimal
point placement. The DMS-EB is compatible with all four versions of the DMS-30 and DMS-40 Series
(±200mV, ±2V, ±20V and ±200V) making it interchangeable from meter to meter and application to
application. Solder gaps conveniently placed on the board are easily bridged or cut configuring the board
to meet each application's specific requirements.
This low-cost addition to DATEL's expanding line of miniature meters is evidence of our continuing
commitment to offer the most versatile, easy-to-use, panel meter products.

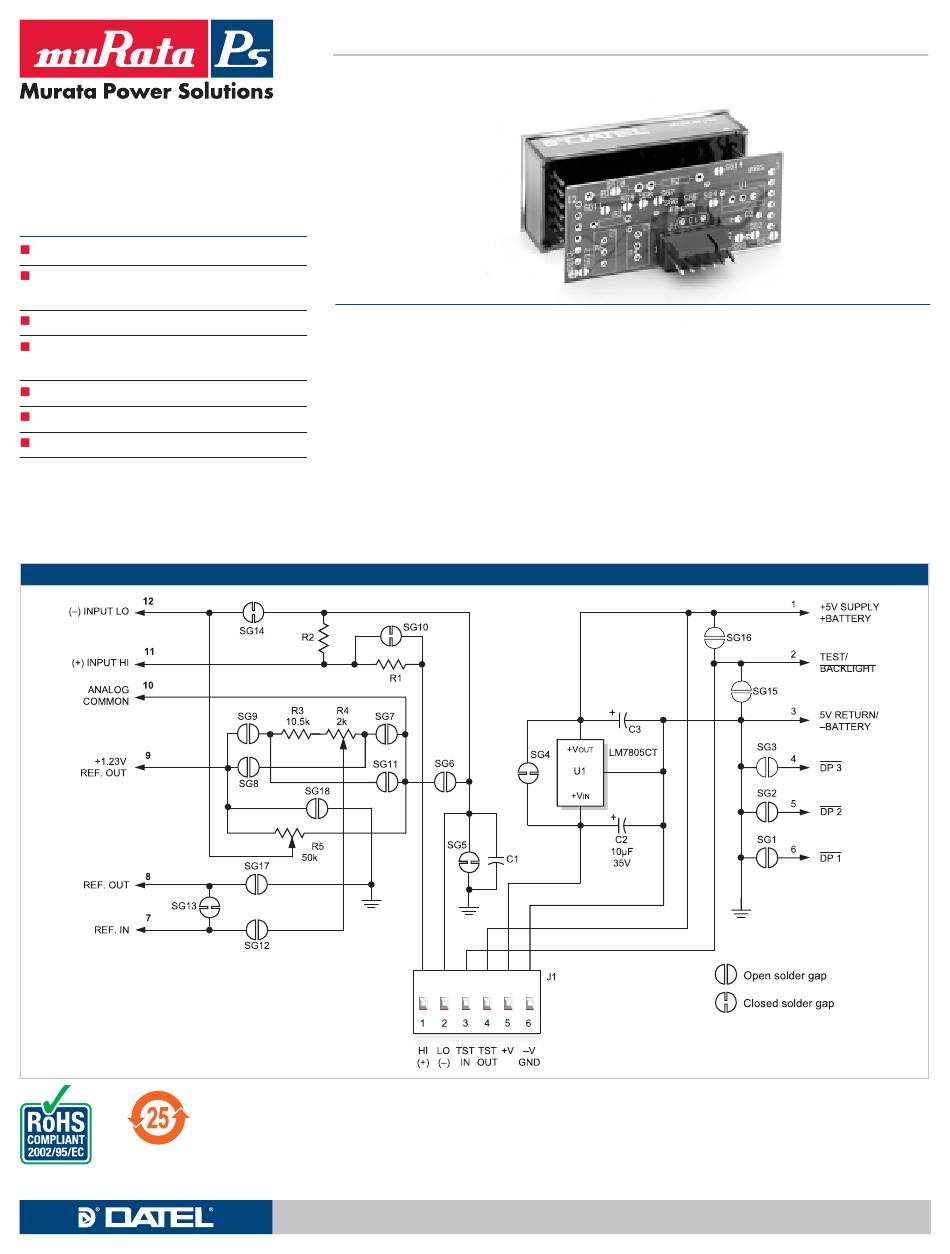

Figure 1. DMS-EB Schematic Diagram for DMS-30 Meters
www.murata-ps.com
Technical enquiries email: sales@murata-ps.com, tel:
MPM_DMS-EB.B01 Page 1 of 4
