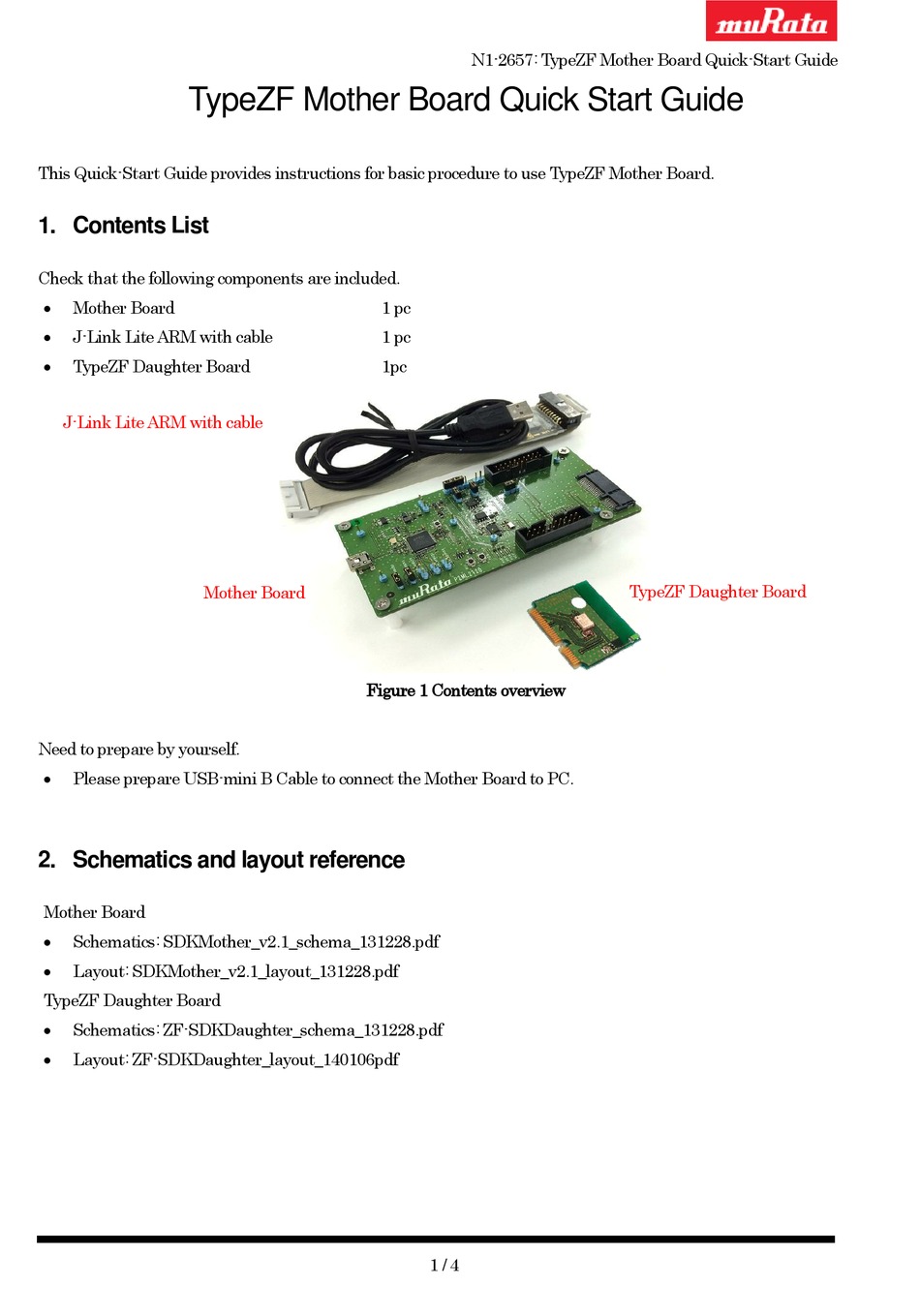

TypeZF Mother Board Quick Start Guide
This Quick-Start Guide provides instructions for basic procedure to use TypeZF Mother Board.
1. Contents List
Check that the following components are included.
Mother Board
J-Link Lite ARM with cable
TypeZF Daughter Board
J-Link Lite ARM with cable
Mother Board
Need to prepare by yourself.
Please prepare USB-mini B Cable to connect the Mother Board to PC.
2. Schematics and layout reference
Mother Board
Schematics: SDKMother_v2.1_schema_131228.pdf
Layout: SDKMother_v2.1_layout_131228.pdf
TypeZF Daughter Board
Schematics: ZF-SDKDaughter_schema_131228.pdf
Layout: ZF-SDKDaughter_layout_140106pdf
N1-2657: TypeZF Mother Board Quick-Start Guide
1 pc
1 pc
1pc

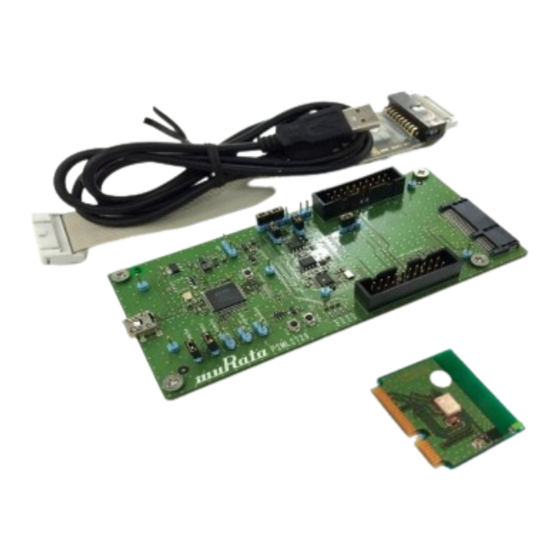

Figure 1 Contents overview
1 / 4
TypeZF Daughter Board
Advertisement
Table of Contents
Related Manuals for Murata N1-2657
Summary of Contents for Murata N1-2657
- Page 1 N1-2657: TypeZF Mother Board Quick-Start Guide TypeZF Mother Board Quick Start Guide This Quick-Start Guide provides instructions for basic procedure to use TypeZF Mother Board. 1. Contents List Check that the following components are included. Mother Board 1 pc ...
-
Page 2: Hardware Description
N1-2657: TypeZF Mother Board Quick-Start Guide 3. Hardware description 3.1. Hardware description Figure 2 Overview of the Mother Board Table 1 Jumpers of the Mother Board Default Name Function Description Photo Settings Regulated 3.0V output generated internally Output by Mother Board. - Page 3 N1-2657: TypeZF Mother Board Quick-Start Guide Table 2 Connectors and Pin headers of the Mother board Default Name Function Description Photo Settings JLINK JLINK connector PADS Debug pins USB connector Connect to the Daughter Daughter Board Table 3 Buttons and LEDs of the Mother board...
-
Page 4: Quick Start
N1-2657: TypeZF Mother Board Quick-Start Guide 3.2. Configurations of the Mother board Table 4 Mother Board configuration Description Related Pins To do UART connection EN_ADBUS0 Both pins are tied by jumpers. EN_ADBUS1 Select internal/external When using internal 3.0V supply: Power Supply - 3V3-EXT and MOD-VBAT are tied by jumpers.
