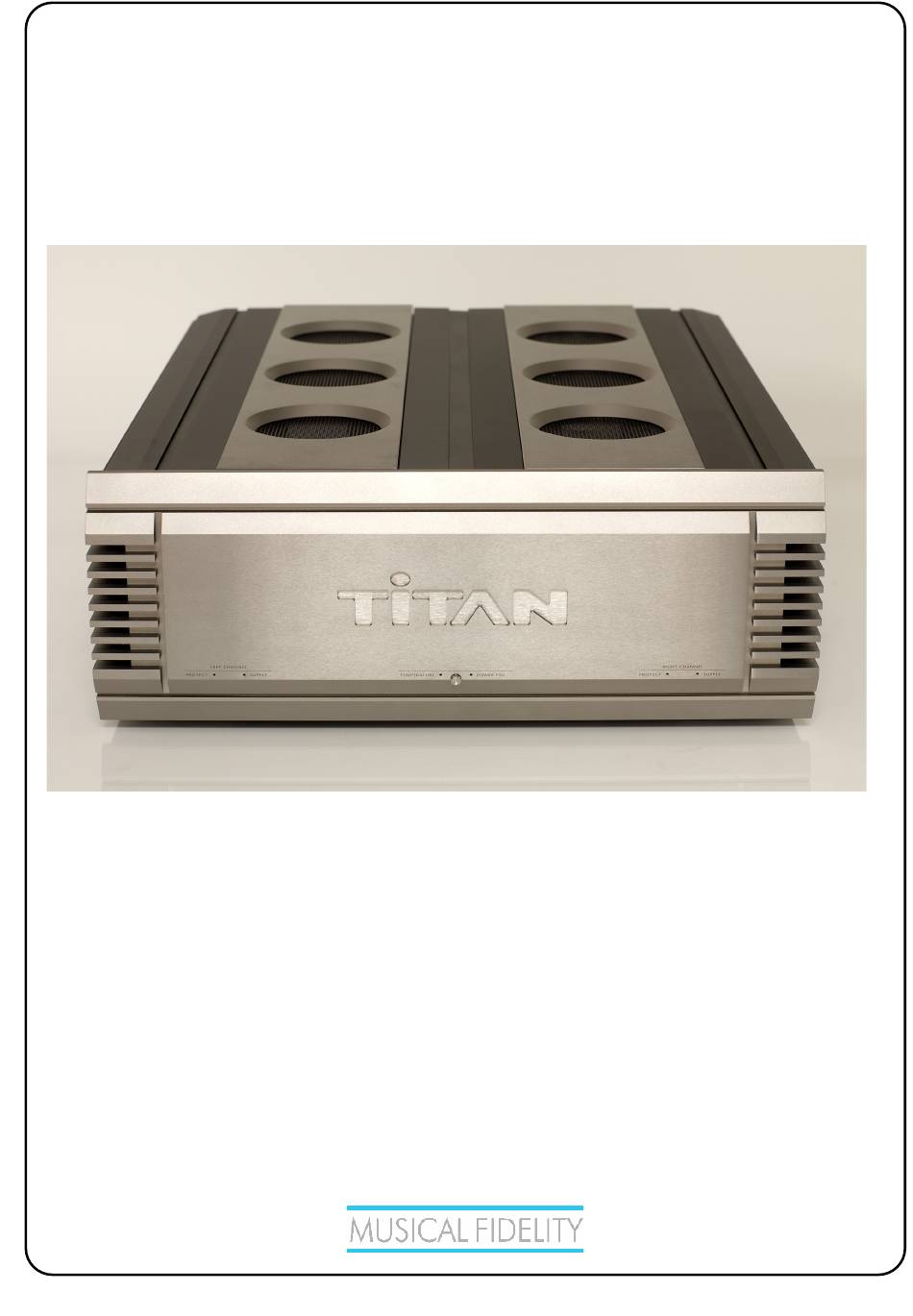

TiTAN
FULLY BALANCED 1KW DUAL MONO BRIDGED POWER AMPLIFIER
INSTRUCTIONS FOR USE
Thank you for purchasing the Musical Fidelity TiTAN power amplifier.
The TiTAN uses the latest in low distortion circuitry in a bridged configuration that delivers 1000 watts into 8 ohm and 2000W
into 4 ohm speakers.
It is designed to drive any loudspeaker system to its full potential without distortion or clipping interfering with enjoyment of
the music. Large musical transients are delivered without clipping. The overall listening experience is greatly improved due to
dramatically lower distortion and increased dynamic range.
The TiTAN accepts both balanced and single ended line level inputs. When driven from a balanced preamplifier the sound
quality is greatly enhanced by the doubling of the dynamic range and effective halving of the noise floor.
The TiTAN is a perfect answer to greatly improved dynamics in a beautifully engineered package.
Used properly and carefully, it should give many years of outstanding musical reproduction.
If there are further questions about any Musical Fidelity component, please consult the dealer from whom it was purchased,
who is there to give help and advice.
Advertisement
Table of Contents
Related Manuals for Musical Fidelity Titan
Summary of Contents for Musical Fidelity Titan
- Page 1 INSTRUCTIONS FOR USE Thank you for purchasing the Musical Fidelity TiTAN power amplifier. The TiTAN uses the latest in low distortion circuitry in a bridged configuration that delivers 1000 watts into 8 ohm and 2000W into 4 ohm speakers. It is designed to drive any loudspeaker system to its full potential without distortion or clipping interfering with enjoyment of the music.
-
Page 2: Table Of Contents
TiTAN CONTENTS PAGE Section Safety information Mains plug (U.K. only) Modification warning General advice Installation precautions User information Item disposal information EU disposal information Installation Introduction Installation Audio connection Cleaning 7, 8 Connections Illustrations - front and rear panels Amplifier operation... -
Page 3: Safety Information
If connecting to a BS1363 plug, a 13 amp fuse must be used. WARNING: ANY MODIFICATIONS TO THIS PRODUCT NOT EXPRESSLY APPROVED BY MUSICAL FIDELITY WHO IS THE PARTY RESPONSIBLE FOR STANDARDS COMPLIANCE COULD VOID THE USER'S AUTHORITY TO OPERATE THIS EQUIPMENT. -
Page 4: General Advice
Heed all warnings shown on the back of the product. Only connect the TiTAN to a mains outlet having the same voltage as marked at the back of the unit. Always ensure that when disconnecting and reconnecting audio equipment the mains supply is switched off. -
Page 5: Item Disposal Information
TiTAN ITEM DISPOSAL INFORMATION DISPOSAL AFVAL The crossed out wheeled bin label that appears on the Het label op de achterzijde van dit apparaat, een back panel of the product indicates that the product must not be afvalbak op wielen met een kruis doorgehaald, geeft aan dat dit disposed of as normal household waste. -
Page 6: Installation
LEFT PSU OUTPUT on the power supply to the LEFT PSU INPUT on the amplifier. AUDIO CONNECTIONS Inputs: The TiTAN has single ended (RCA) line level and Use the other large silver/grey “Neutrik” lead to connect the balanced (XLR) line level input. Choose the desired input to... -
Page 7: Amplifier Connections
TiTAN AMPLIFIER CONNECTIONS FRONT PANEL Left hand protect Left hand supply Temperature Amplifier Power PSU Right hand protect Right hand supply LED indicator on/off button LED indicator LED indicator LED indicator LED indicator LED indicator REAR PANEL Right hand Right hand... -
Page 8: Power Supply Connections
TiTAN POWER SUPPLY CONNECTIONS FRONT PANEL Left hand mains on indicator Left hand mains switch Right hand mains switch Right hand mains on indicator REAR PANEL Right hand mains fuse Right power Control Left power Left hand mains fuse supply output... -
Page 9: Amplifier Operation
TiTAN AMPLIFIER OPERATION POWER ON FAULT CONDITION Once all connections are made, switch on the unit, using Should the amplifier be driven into current limit, the red the ON/OFF switches on the power supply front panel. LED on the affected channel will flash briefly and sound Both switches should be operated for normal operation. -
Page 10: Amplifier Problem Solving
(RCA single-ended or XLR balanced) If none of these actions affect a cure, please contact your dealer, or an authorised Musical Fidelity service agent. Remember; never open the case of the TiTAN yourself, as this will invalidate the guarantee. -
Page 11: Amplifier Specifications
2 off Neutrik power connecting leads 1.2m 1 off 5-way XLR connecting lead 1.2m 1 off Manual Musical Fidelity reserves the right to make improvements which may result in specification or feature changes without notice. Page 11 of 12 Issue 1... -
Page 12: Manual Revision
TiTAN MANUAL REVISION RELEASE DATE CHANGES Issue 1 January 30 2009 Issue Page 12 of 12 Issue 1...
