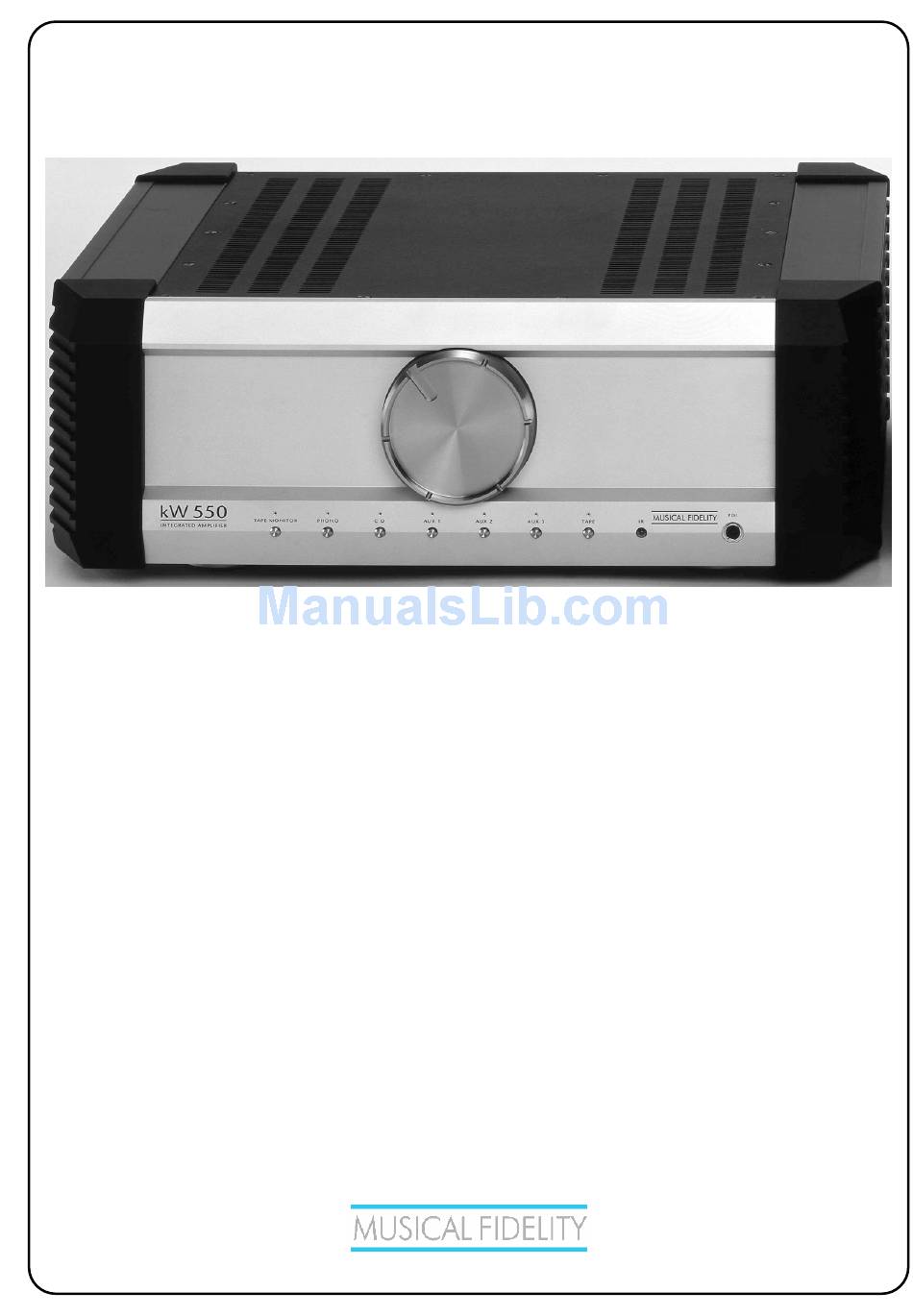

KW550
KW-SERIES TUBE INPUT INTEGRATED AMPLIFIER
INSTRUCTIONS FOR USE
Thank you for purchasing the Musical Fidelity KW550
This model uses our finely tuned pre- and power amplifier techniques to achieve both an excellent technical
specification and unparalleled sound quality, using a top quality 6SL7 tube line level preamplifier stage and
two monobloc power amps capable of driving over 550W.
The KW550 is a perfect answer to most integrated requirements in a single, beautifully engineered package.
Used properly and carefully, it should give many years of outstanding musical reproduction.
Dust regularly with a soft duster or soft brush, but be careful when using cleaning or polishing agents - they
may harm the surface finish.
If you have any questions about your audio system,
Please consult your dealer who is there to help and advise.
Advertisement
Table of Contents
Related Manuals for Musical Fidelity KW550
Summary of Contents for Musical Fidelity KW550
- Page 1 6SL7 tube line level preamplifier stage and two monobloc power amps capable of driving over 550W. The KW550 is a perfect answer to most integrated requirements in a single, beautifully engineered package. Used properly and carefully, it should give many years of outstanding musical reproduction.
-
Page 2: Table Of Contents
KW550 PAGE Section Safety information General advice Disposal information Installation Facilities and connections Remote control Amplifier connections Amplifier operation Amplifier problems? Amplifier specifications Manual history Issue 1: August 2006 Mains plug (U.K. only) Modification warning Installation precautions User information EU disposal information... -
Page 3: Safety Information
If connecting to a BS1363 plug, a 13 amp fuse must be used. WARNING: ANY MODIFICATIONS TO THIS PRODUCT NOT EXPRESSLY APPROVED BY MUSICAL FIDELITY WHO IS THE PARTY RESPONSIBLE FOR STANDARDS COMPLIANCE COULD VOID THE USER'S AUTHORITY TO OPERATE THIS EQUIPMENT. -
Page 4: General Advice
Heed all warnings shown on the back of the product. Only connect the KW550 to a mains outlet having the same voltage as marked at the back of the unit. Always ensure that when disconnecting and reconnecting your audio equipment the mains supply is switched off. -
Page 5: Item Disposal Information
KW550 DISPOSAL The crossed out wheeled bin label that appears on the back panel of the product indicates that the product must not be disposed of as normal household waste. To prevent possible harm to the environment please separate the product from other waste to ensure that it can be recycled in an environmentally safe manner. -
Page 6: Installation
Protect your KW550 from humidity - if the unit is moved from a cold place to a warm room, or in generally humid conditions, moisture can form on the inside of the unit. -
Page 7: Facilities And Connections
KW550 1. VOLUME knob 2. TAPE MONITOR Button 3. INPUT SELECTOR Buttons and indicators 7. LOUDSPEAKER OUTPUTS Right hand side 8. PRE OUTPUT RCA sockets 9. TAPE OUTPUT RCA sockets 10. PHONO, CD, AUX 1/PDI, AUX 2, AUX 3, TAPE INPUT RCA Sockets 11. - Page 8 KW550 1. POWER LED Indicator 2. POWER mains on/off switch 4. POWER OUTPUT Right hand power amplifier 5. POWER OUTPUT Preamplifier sections 6. POWER OUTPUT Left hand power amplifier Issue 1: August 2006 FACILITIES AND CONNECTION POWER SUPPLY FRONT PANEL 3.
-
Page 9: Remote Control
KW550 The universal remote control shown below enables functions from this and related units to be operated from a convenient distance. Equivalent buttons on the remote control have the same functions as those on the front panel of the unit. Other functions are only available by remote control. -
Page 10: Amplifier Connections
All input, output and power connections should be made with the mains power switched OFF. INPUT CONNECTIONS Phono: The KW550 has a pair of RCA type phono input sockets intended for use with moving magnet (MM) or moving coil (MC) pickups. Some turntable/pickup arm combinations are fitted with an extra wire for chassis earth. -
Page 11: Amplifier Operation
Once all connections are made, switch on the unit, using the POWER button to the bottom left of the front panel, the front panel of the KW550 and the feet will light indicating that the unit is on. The feet glow red to indicate speaker outputs are muted, for about fifteen seconds, so no sound will be heard from your speakers. -
Page 12: Amplifier Problems
Remote control range has greatly reduced If none of these actions affect a cure, please contact your dealer, or an authorised Musical Fidelity service agent. Remember; never open the case of the KW550 yourself, as this will invalidate the guarantee. -
Page 13: Amplifier Specifications
170mm, 6.7 inches inc. feet 440mm, 18.5 inches inc. terminals 32kg, 70lbs unboxed 35kg, 77lbs in shipping carton Musical Fidelity reserves the right to make improvements which may result in specification or feature changes without notice. Page 13 of 14... -
Page 14: Manual Revision
KW550 MANUAL REVISION RELEASE DATE CHANGES Issue 1 August 2006 issue Issue 1: August 2006 Page 14 of 14...
