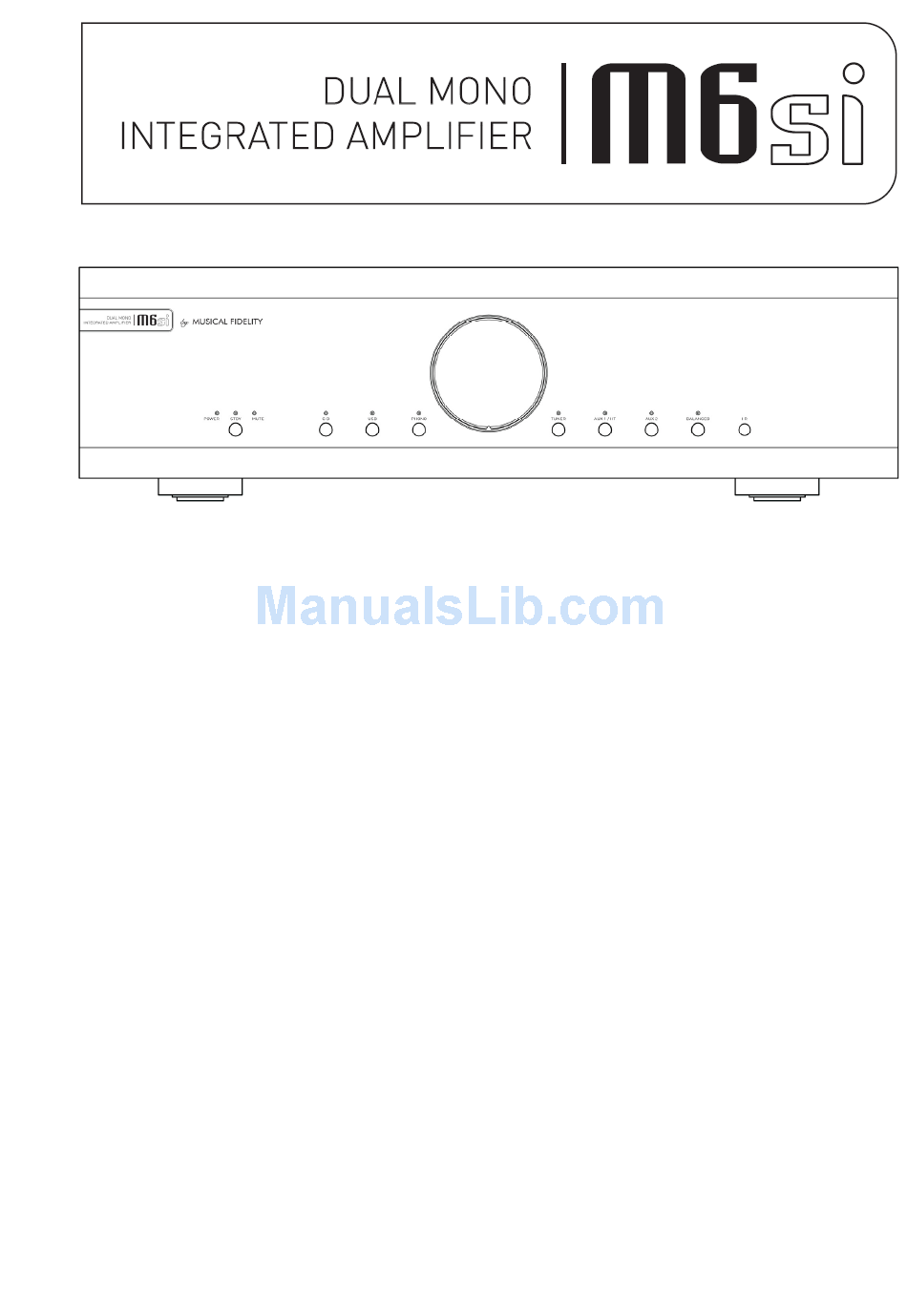

Dual mono integrated amplifier

Advertisement

Instructions for use

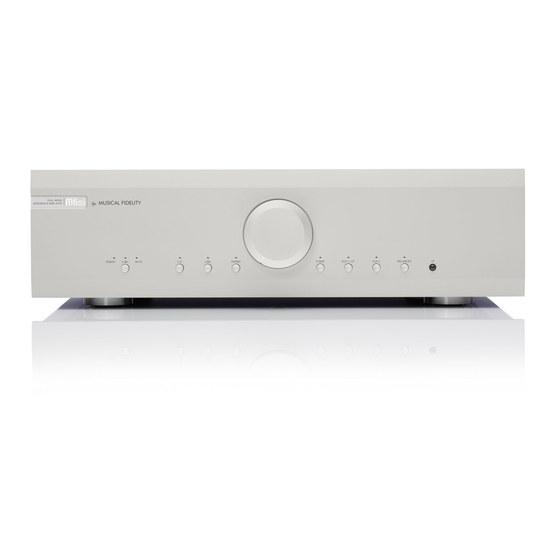

Thank you for purchasing the Musical Fidelity M6si integrated amplifier.
The M6si uses our tried and tested ultra low distortion power amplifier circuitry, which has enough current
reserve to drive even the most demanding speakers with ease. A very low noise and distortion, high-quality
preamplifier completes the integrated amplifier giving a perfect sound from a compact looking full size unit.
The M6si now features two new inputs for further versatility.
A low noise phono stage has been added to allow direct connection of a turntable for vinyl listening.
An asynchronous USB input has also been included which will connect to computer based home audio and
allow full quality playback of digital media, up to and including 24 bits, 96kHz sampling rate.
The M6si will aesthetically match with present and future M6/s series products. Such a combination will yield
one of the best high-fidelity systems available at any price.
Used properly and carefully, it should give many years of outstanding musical reproduction.
Dust regularly with a soft duster or soft brush, but be careful when using cleaning or polishing agents - they
may harm the surface finish.
If there are any questions about the audio system, please consult the dealer who is there to help and advise.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M6si and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Musical Fidelity M6si

  • Page 1 Thank you for purchasing the Musical Fidelity M6si integrated amplifier. The M6si uses our tried and tested ultra low distortion power amplifier circuitry, which has enough current reserve to drive even the most demanding speakers with ease. A very low noise and distortion, high-quality preamplifier completes the integrated amplifier giving a perfect sound from a compact looking full size unit.
  • Page 2 – AUX2 – BALANCED – Computer setting for USB – PC and MAC users – For best results with USB Problems? – Basic fault finding Specifications – Product specifications Manual history Item disposal information M6si Manual Page 2 of 12...
  • Page 3: Safety Information

    • If connecting to a BS1363 plug, a 13 amp fuse must be used. WARNING: MODIFICATIONS THIS PRODUCT EXPRESSLY APPROVED BY MUSICAL FIDELITY WHO IS THE PARTY RESPONSIBLE STANDARDS COMPLIANCE COULD VOID USER'S AUTHORITY TO OPERATE THIS EQUIPMENT. M6si Manual...
  • Page 4: General Advice

    Heed all warnings shown on the back of the product. • Only connect the M6si to a mains outlet having the same voltage as marked at the back of the unit. • Always ensure that when disconnecting and reconnecting your audio equipment the mains supply is switched off.
  • Page 5 Power Connections The M6si is supplied with a standard IEC mains cable which plugs into the IEC socket at the back of the unit (see page 7). When plugged in and mains supply is present the orange STDBY LED will light.
  • Page 6 18 MM/MC cartridge selector switch Pin functions: XLR Balanced input and output lead connections: Ground (cable shield) Normal polarity ("hot" or “+”) Inverted polarity ("cold" or “-“) (for reference, no XLR signal leads supplied) M6si Manual Page 6 of 12...
  • Page 7: Remote Control Handset

    CD inputs section (Grey buttons) CD – Sets CD player in normal CD player SPDIF – Selects CD player SPDIF input mode OPTICAL 1 – Selects CD player OPTICAL USB – Selects CD player USB input input M6si Manual Page 7 of 12...
  • Page 8 To use the BALANCED input, connect source balanced outputs to the BALANCED input XLR sockets (see page 6). Select BALANCED input by pressing the BALANCED button so BALANCED LED lights. Pressing the corresponding button on the remote handset has the same effect (see page 7). M6si Manual Page 8 of 12...
  • Page 9 - Control panel - Sounds and Multimedia - Audio Check that “M6si Integrated 24/96” appears under PREFERRED AUDIO DEVICE tab Use the mixer to select the source or adjust levels if required. Mac users- Check the computer has picked up the device and is currently using it by clicking: (MAC OS X)
  • Page 10 Change batteries for a new set. has greatly reduced If none of these actions affect a cure, please contact the dealer, or an authorised Musical Fidelity service agent. Remember; never open the case of the M6si, as this will invalidate the guarantee.
  • Page 11: Specifications

    IEC type mains lead 10-Amp type Remote control M6s series Batteries LR03 or AAA, manganese alkaline type 2 off Musical Fidelity reserves the right to make improvements which may result in specification or feature changes without notice. M6si Manual Page 11 of 12...
  • Page 12: Item Disposal Information

    RELEASE DATE CHANGES March 2014 M6si manual issue 1 issue DISPOSAL The crossed out wheeled bin label that appears on the back panel of the product indicates that the product must not be disposed of as normal household waste. To prevent possible harm to the environment please separate the product from other waste to ensure that it can be recycled in an environmentally safe manner.
