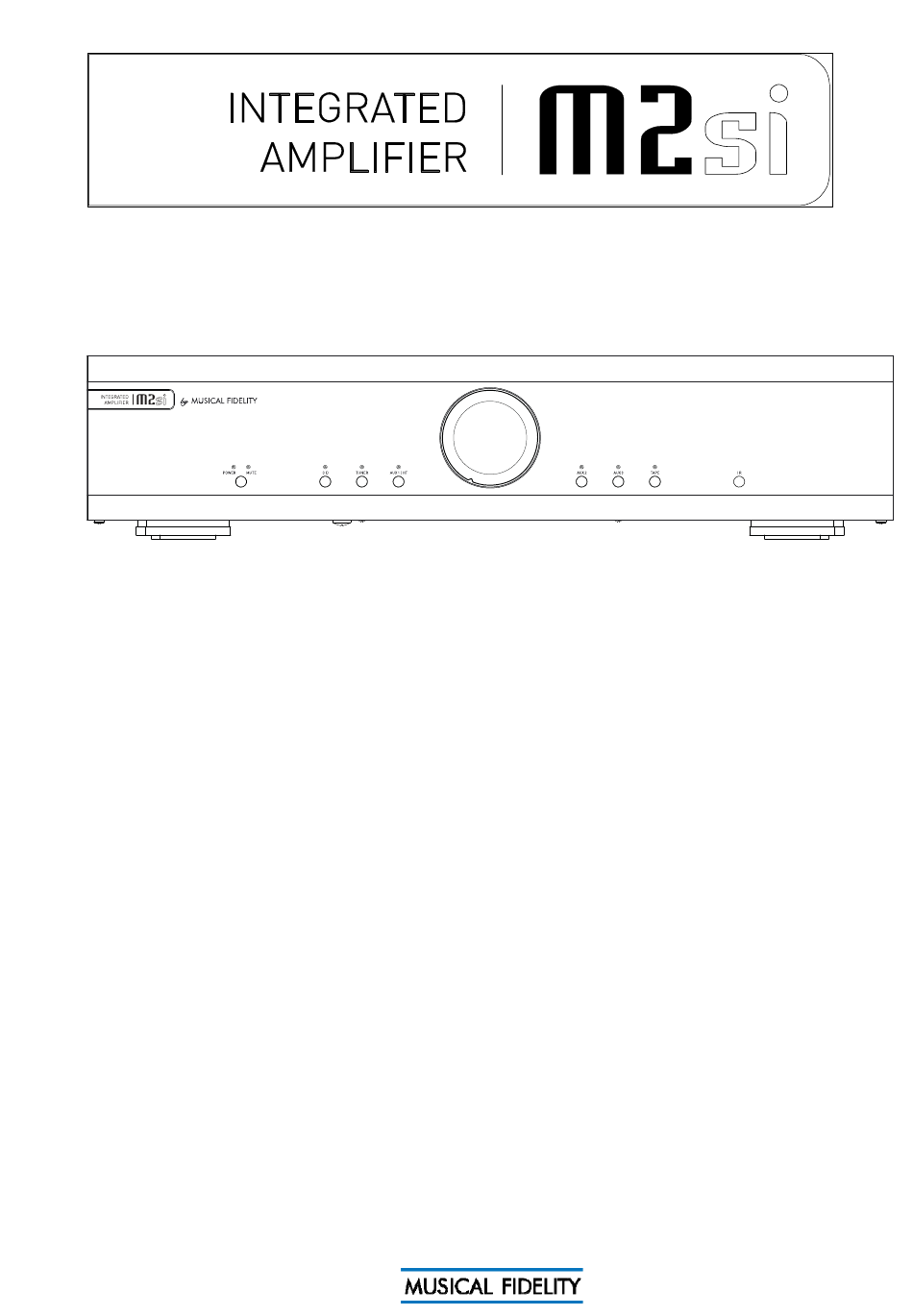

Instructions for use

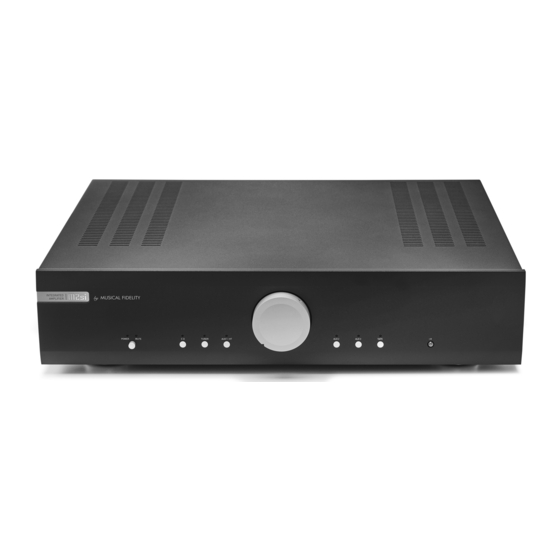

Thank you for purchasing the Musical Fidelity M2si integrated amplifier.
The M2si uses our tried and tested ultra-low distortion power amplifier circuitry, which has enough current
reserve to drive even the most demanding speakers with ease. A very low noise and distortion, high-quality
preamplifier completes the integrated amplifier giving a perfect sound from a compact looking full size unit.
The M2si will aesthetically match with present and future 'M' series products. Such a combination will yield one
of the best high-fidelity systems available at any price.
Used properly and carefully, it should give many years of outstanding musical reproduction.
Dust regularly with a soft duster or soft brush, but be careful when using cleaning or polishing agents - they
may harm the surface finish.
If there are any questions about the audio system, please consult the dealer who is there to help and advise.
Advertisement
Related Manuals for Musical Fidelity M2si
Summary of Contents for Musical Fidelity M2si
- Page 1 The M2si will aesthetically match with present and future ‘M’ series products. Such a combination will yield one of the best high-fidelity systems available at any price.
-
Page 2: Table Of Contents
CONTENTS Section Page Safety Information – Mains plug (UK only), modification warning General advice – Installation precautions Disposal information – EU disposal information – Introduction, cleaning, installation, power connections, audio Installation connections Facilities and connections – Illustrations, main unit front & rear panels Remote control handset –... -
Page 3: Safety Information
• If connecting to a BS1363 plug, a 13 amp fuse must be used. WARNING: MODIFICATIONS THIS PRODUCT EXPRESSLY APPROVED BY MUSICAL FIDELITY WHO IS THE PARTY RESPONSIBLE STANDARDS COMPLIANCE COULD VOID USER'S AUTHORITY TO OPERATE THIS EQUIPMENT. Page 3 of 13... -
Page 4: General Advice
Heed all warnings shown on the back of the product. • Only connect the M2si to a mains outlet having the same voltage as marked at the back of the unit. • Always ensure that when disconnecting and reconnecting your audio equipment the mains supply is switched off. - Page 5 ITEM DISPOSAL INFORMATION DISPOSAL The crossed out wheeled bin label that appears on the back panel of the product indicates that the product must not be disposed of as normal household waste. To prevent possible harm to the environment please separate the product from other waste to ensure that it can be recycled in an environmentally safe manner.
-
Page 6: Installation
Power Connections The M2si is supplied with a standard IEC mains cable which plugs into the IEC socket at the back of the unit (see page 7) - Page 7 FACILITIES & CONNECTIONS ON/OFF Button VOLUME control CD, TUNER, AUX1/HT, AUX2, AUX3, TAPE IR RECEIVER lens input selector buttons LOUDSPEAKER OUTPUTS right and left PRE, TAPE output RCA sockets HT/AUX selector for AUX1/HT input IEC MAINS INPUT CD, TUNER, AUX1/HT, AUX2, AUX3, TAPE input RCA sockets Page 7 of 13...
-
Page 8: Remote Control Handset
REMOTE CONTROL HANDSET The universal remote control shown below enables functions from this and related units to be operated from a convenient distance. Equivalent buttons on the remote control have the same functions as those on the front panel of the unit. Other functions are only available by remote control. -
Page 9: Operation
OPERATION Starting Once all connections are made, switch on the unit, using the POWER button front of the unit. The MUTE LED will light. Speaker outputs are muted for about 6 seconds, so no sound will be heard from the speakers. Once the 6 seconds is up the MUTE LED goes out, indicating unit is settled, and ready for use. - Page 10 OPERATION TAPE To use the TAPE input, connect external source to the TAPE input (see page 7). Select TAPE input by pressing the TAPE button so TAPE LED lights. Pressing the corresponding button on the remote handset has the same effect (see page 8). Page 10 of 13...
- Page 11 Change batteries for a new set. greatly reduced If none of these actions affect a cure, please contact the dealer, or an authorised Musical Fidelity service agent. Remember; never open the case of the M2si, as this will invalidate the guarantee.
- Page 12 IEC type mains lead (10-Amp type) Remote control Batteries, LR03 or AAA, manganese alkaline type - 2 off Musical Fidelity reserves the right to make improvements which may result in specification or feature changes without notice. Page 12 of 13...
- Page 13 MANUAL HISTORY RELEASE DATE CHANGES M2si Manual Issue 03 December 2016 Power updated. Page 13 of 13...
