Thies CLIMA First Class Advanced X Short Instructions For Use

Wind transmitter
Hide thumbs Also See for First Class Advanced X:

Advertisement

Quick Links

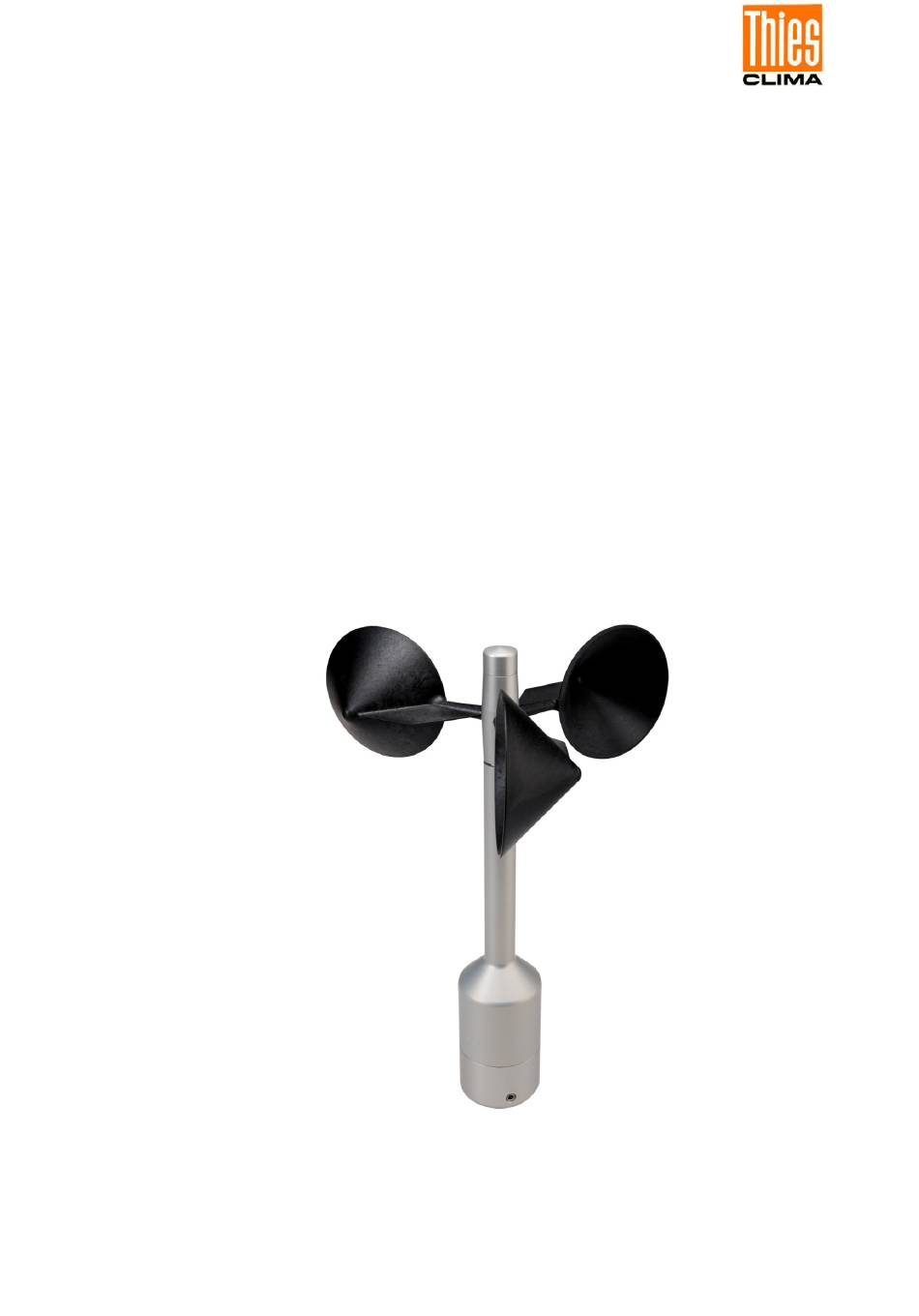

Wind Transmitter
>>First Class Advanced X<<
Short - Instruction for Use
4.3352.00.400 / 4x1
4.3352.10.400 / 4x1
- Classified according to IEC 61400-12-1 EDITION 2.0 (2017-03)
At start of software version V4.0
Dok. No. 021962/08/24
T H E W O R L D O F W E A T H E R D A T A

Advertisement

loading
Need help?

Need help?

Do you have a question about the First Class Advanced X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Thies CLIMA First Class Advanced X

  • Page 1 Wind Transmitter >>First Class Advanced X<< Short - Instruction for Use 4.3352.00.400 / 4x1 4.3352.10.400 / 4x1 - Classified according to IEC 61400-12-1 EDITION 2.0 (2017-03) At start of software version V4.0 Dok. No. 021962/08/24 T H E W O R L D O F W E A T H E R D A T A...
  • Page 2 Safety Instructions • Before operating with or at the device/product, read through the operating instructions. This manual contains instructions which should be followed on mounting, start-up, and operation. A non-observance might cause: - failure of important functions - endangerment of persons by electrical or mechanical effect - damage to objects •...
  • Page 3 Patent no.: DE 103 27 632 Patent no.: EP 1 489 427 Shipment 1 x Wind Transmitter First Class Advanced X 1 x Connection plug 1 x Short Instructions for use (the complete instructions for use is available for download) The instructions for use are available for download under the following link: https://www.thiesclima.com/db/dnl/4.3352.x0.400-401_Wind_Transmitter_FirstClass-Ad-...
  • Page 4 2 Installation Attention: Storing, mounting, and operation under weather conditions is permissible only in vertical position, as otherwise water can get into the instrument. Note When using fastening adapters (angle, traverses, etc.) please take a possi- ble effect to the measuring values by shading into consideration. Attention: The device may only be supplied with a power supply of the "Class 2, limited power”.
  • Page 5 2.1 Mechanical Mounting Note: The wiring must be prepared so far, that plug and cable have been pushed through instru- ment carrier, mast, traverse etc., and can be connected to the wind transmitter at the mo- ment of the „Mechanical Mounting”, described in the following (please refer also to chapter 7.2).
  • Page 6 The wind transmitter must be mounted on an instrument carrier, which is suited for the measurement. For dimensions of wind transmitter please refer to chapter 15. Tools: Hexagon socket wrench SW3 (Allen key). Procedure: 1. Lead a prepared cable with assem- bled plug through the bore hole of mast, tube, arm etc., and connect it to the wind transmitter.
  • Page 7 2.2 Electrical Mounting 2.2.1 Cable Solder a shielded cable with diameter 7-8mm and a core cross-section of 0.5...0.75mm² to the enclosed coupling socket. • The number of necessary wires is given in the connection diagram (chapter 7.3). 2.2.1.1 Cable Recommendation No.
  • Page 8 2.2.2.1 Connection recommendation for the cable shield Sensor Carrier Sensor Shielding / Ground Lightning Protection 1. Metallic measure- Isolated mounting at Apply the cable shield Mount metallic lightning ment mast, grounded the measuring mast between sensor and protection rod on the (e.g.
  • Page 9 2.2.3 Plug and Cable Mounting Coupling socket, Type: Binder, Serial 423, EMC with cable clamp Cable connection: with cable shield 1. Stringing parts on cable acc. to plan given Cable mounting 1 above. View X 2. Stripping cable sheath 20mm. Cutting uncovered shield 15mm.
  • Page 10 2.3 Connecting Diagram Connection diagram acc. to chapter 7.2.2.1 no.1, 3 and 4: Order– No. View on the sol- dered joint of the counter plug 4.3352.00.400 4.3352.00.401 4.3352.00.491 4.3352.10.400* 4.3352.10.401* 4.3352.10.491* *Order-No. 4.3352.10.xxx (without heating) Pin 7 u. 8 are not connected Contact Name Function...
  • Page 11 3 Maintenance If properly installed, the instrument requires no maintenance. Heavy pollution can lead to blockage of the slot between the rotating and the stable parts of the transmitter. Thus, it is advisable to remove the accumulated dirt from the instrument. Cleaning For the cleaning of the device should use a damp cloth without chemical cleaning agents are used.
  • Page 12 4 Technical Data Characteristics Description Measurement range 0.3 ... 75m/s Measurement uncertainty ±1% from the measured value or < ±0,2m/s @ 0,3 ... 50m/s Survival velocity 80m/s (min. 30 minutes) Admissible -40 ... +80°C environmental conditions 0 ... 100% relative humidity, including condensation Housing inside temperature Measurement range: -40 …...
  • Page 13 Characteristics Description Heater Surface temperature of the housing neck >0°C at 20m/s to -10°C air temperature, at 1 0m/s to -20°C Use of the Thies icing standard 012002 on the housing neck Heater controlled with temperature sensor. Electric supply for Voltage: 3.7 ...
  • Page 14 6 Dimensional Drawing 7 More Information / Documents as download Further information can be found in the short instructions for use. These document and also the instruction for use are available for download under the following links. Instruction for use https://www.thiesclima.com/db/dnl/4.3352.x0.400-401_Wind_Transmitter_FirstClass-Advanced- X_eng.pdf ©...
  • Page 15 © Adolf Thies GmbH & Co. KG · Hauptstraße 76 · 37083 Göttingen · Germany 021962/08/24 Phone +49 551 79001-0 · Fax +49 551 79001-65 · info@thiesclima.com · www.thiesclima.com Page 15 of 16...
  • Page 16 Please contact us for your system requirements. We advise you gladly. ADOLF THIES GMBH & CO. KG Meteorology and environmental metrology Hauptstraße 76 · 37083 Göttingen · Germany Phone +49 551 79001-0 · Fax +49 551 79001-65 info@thiesclima.com www.thiesclima.com © Adolf Thies GmbH & Co. KG · Hauptstraße 76 · 37083 Göttingen · Germany 021962/08/24 Phone +49 551 79001-0 ·...
