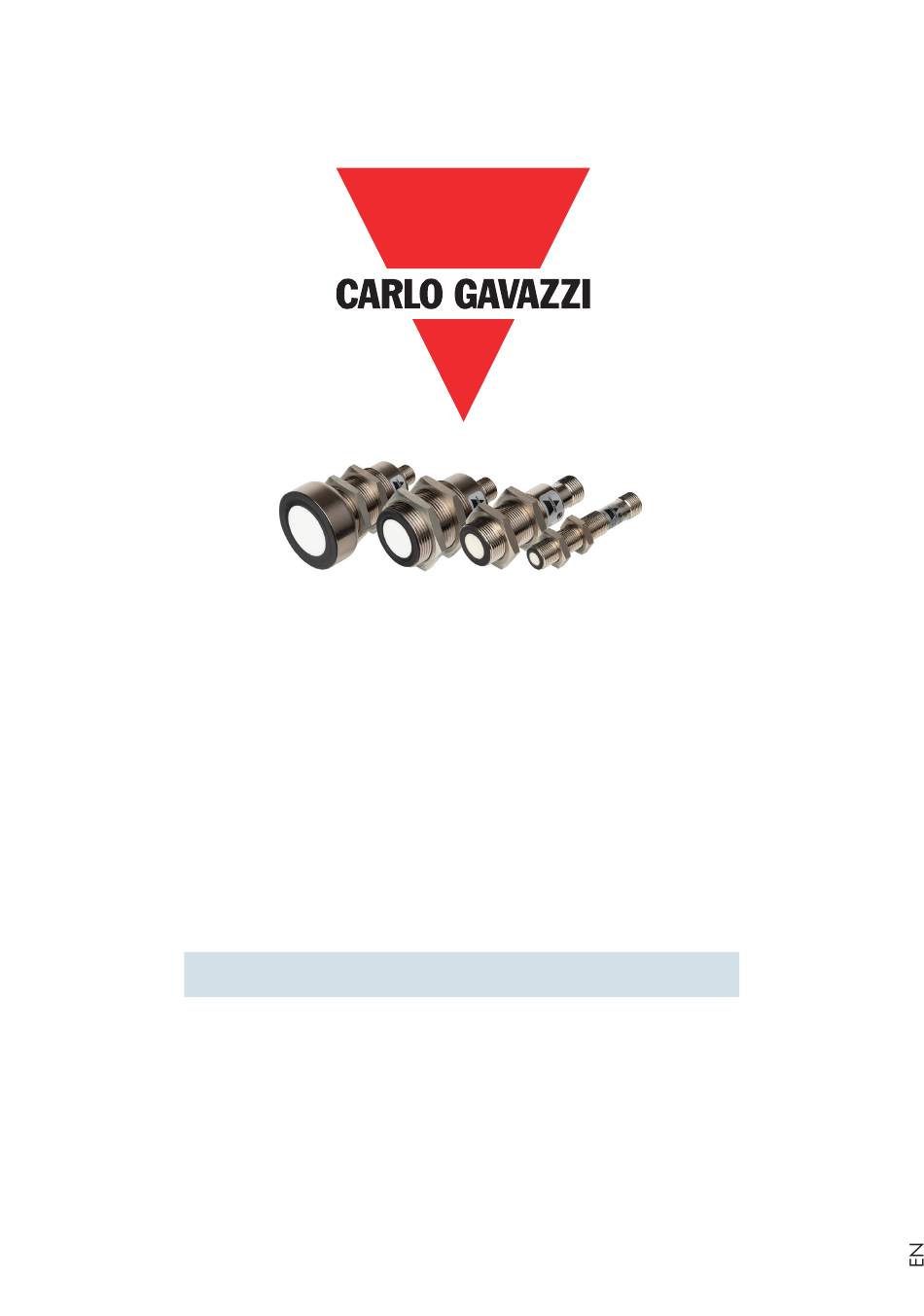

IO-Link
ultrasonic
sensor
UAxxASDxxBPM1IO
Instruction manual
Carlo Gavazzi Industri, Over Hadstenvej 40, 8370 Hadsten, Denmark

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UA ASD BPM1IO Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CARLO GAVAZZI UA ASD BPM1IO Series

  • Page 1 IO-Link ultrasonic sensor UAxxASDxxBPM1IO Instruction manual Carlo Gavazzi Industri, Over Hadstenvej 40, 8370 Hadsten, Denmark...
  • Page 2: Table Of Contents

    2.7.4.1. Reflex mode dynamic teach procedure (Autoteach) ........18 Rev.00 - 03.2025 | MAN UAxxASDxxBPM1 IO-Link ENG | © 2025 | CARLO GAVAZZI Industri...
  • Page 3 10. Detection diagram ..........24 Rev.00 - 03.2025 | MAN UAxxASDxxBPM1 IO-Link ENG | © 2025 | CARLO GAVAZZI Industri...
  • Page 4: Introduction

    Low Voltage (2014/35/EU) and Electromagnetic Compatibility (2014/30/ EU) EC directives. All rights to this document are reserved by Carlo Gavazzi Industri, copies may be made for internal use only. Please do not hesitate to make any suggestions for improving this document.
  • Page 5: Acronyms

    Normally Closed contact Pull load to ground Pull load to V+ Push-Pull Pull load to ground or V+ UART Universal Asynchronous Receiver-Transmitter Switching Output Binary data Channel Rev.00 - 03.2025 | MAN UAxxASDxxBPM1 IO-Link ENG | © 2025 | CARLO GAVAZZI Industri...
  • Page 6: Product

    2. Product 2.1. Main features IO-Link Carlo Gavazzi 4-wire DC ultrasonic sensors, built to the highest quality standards, are available in robust nickel-plated brass housing. They can operate in standard I/O mode (SIO), which is the default operation mode. When connected to an SCTL55 or an IO-Link master, they automatically switch to IO-Link mode and can be operated and easily configured remotely.
  • Page 7: Operating Modes

    Once connected to the IO-Link port, the master has remote access to all the parameters of the sensor and to advanced functionalities, allowing the settings and configuration to be changed during operation, and enabling diagnostic functions, such as temperature readings and process data. Rev.00 - 03.2025 | MAN UAxxASDxxBPM1 IO-Link ENG | © 2025 | CARLO GAVAZZI Industri...
  • Page 8: Process Data

    This way several states can be observed in the sensor at the same time. Process data can be configured. See 2.5.3. Process data configuration. Byte 0 Byte 1 2 Bytes Analog value 4 … 15 (12 BIT) Rev.00 - 03.2025 | MAN UAxxASDxxBPM1 IO-Link ENG | © 2025 | CARLO GAVAZZI Industri...
  • Page 9: Output Parameters

    • UA12ASD04BPM1IO: 40 - 400 mm • UA18ASD08BPM1IO: 80 - 800 mm • UA18ASD15BPM1IO: 150 - 1500 mm • UA30ASD30BPM1IO: 300 - 3000 mm • UA30ASD60BPM1IO: 600 - 6000 mm Rev.00 - 03.2025 | MAN UAxxASDxxBPM1 IO-Link ENG | © 2025 | CARLO GAVAZZI Industri...
  • Page 10: Blind Zone

    SP1 and setpoint SP2, with increasing or decreasing distance measured, taking into consideration the hysteresis settings stored in the sensor. Hyst Hyst Sensor Sensing distance window Example of presence detection - with non-inverted logic Rev.00 - 03.2025 | MAN UAxxASDxxBPM1 IO-Link ENG | © 2025 | CARLO GAVAZZI Industri...
  • Page 11: Hysteresis Settings

    This function allows the user to invert the operation of the switching output between Normally Open and Normally Closed. This can be taught (see 2.6.4.) or changed via IO-Link. Rev.00 - 03.2025 | MAN UAxxASDxxBPM1 IO-Link ENG | © 2025 | CARLO GAVAZZI Industri...
  • Page 12: Timer

    2.4.2.2. Timer Value The parameter defines the duration of the delay. The delay can be set to any integer value between 1 and 10 000 ms. Rev.00 - 03.2025 | MAN UAxxASDxxBPM1 IO-Link ENG | © 2025 | CARLO GAVAZZI Industri...
  • Page 13: Output Stage Mode

    However, if the sensor is exposed to fast temperature changes, it will need time to acclimate to the new temperature conditions, and will only then show exact distance measurement. Rev.00 - 03.2025 | MAN UAxxASDxxBPM1 IO-Link ENG | © 2025 | CARLO GAVAZZI Industri...
  • Page 14: Sio Teach Procedure (External Teach)

    If a setpoint is outside the sensing range, the sensor will save the maximum range in the setpoint until a new teach process has been successfully completed. Rev.00 - 03.2025 | MAN UAxxASDxxBPM1 IO-Link ENG | © 2025 | CARLO GAVAZZI Industri...
  • Page 15: Set Up Guides For Sctl55 Smart Configurator

    The average distance of the target during the teach time is saved in '1s (1) (Setpoint 1)' During this procedure the sensor LEDs will flash to indicate IO-link connection. Rev.00 - 03.2025 | MAN UAxxASDxxBPM1 IO-Link ENG | © 2025 | CARLO GAVAZZI Industri...
  • Page 16: Window Mode Single Value Teach Procedure

    The average distance to the target during the teach time is saved in '2s (2) (Setpoint 2)' During the process, the sensor LEDs will flash to indicate IO-link connection. Rev.00 - 03.2025 | MAN UAxxASDxxBPM1 IO-Link ENG | © 2025 | CARLO GAVAZZI Industri...
  • Page 17: Two Point Mode Single Value Teach Procedure

    18. The average distance to the target during the teach time is saved in '2s (2) (Setpoint 2)' During the process, the sensor LEDs will flash to indicate IO-link connection. Rev.00 - 03.2025 | MAN UAxxASDxxBPM1 IO-Link ENG | © 2025 | CARLO GAVAZZI Industri...
  • Page 18: Reflex Mode Single Value Teach Procedure

    Please note: Reflex mode will only work if the single value teach is done on SP1. If SP2 is taught by accident, then SP1 is automatically placed at the edge of the blind zone, the sensor will not detect anything. Rev.00 - 03.2025 | MAN UAxxASDxxBPM1 IO-Link ENG | © 2025 | CARLO GAVAZZI Industri...
  • Page 19: Diagnostic Parameters

    BU 3 Color Signal Description Brown 10 … 30 VDC Sensor Supply White Digital External Teach Blue Ground Black Digital IO-Link /Output 1 /SIO mode Rev.00 - 03.2025 | MAN UAxxASDxxBPM1 IO-Link ENG | © 2025 | CARLO GAVAZZI Industri...
  • Page 20: Commissioning

    IO-Link master and the sensor. Every supplier of an IO-Link device has to supply this file and make it available for download on their web site. An IODD file is available on IODD Finder as well as on the Carlo Gavazzi Website: http://gavazziautomation.com 6.2.
  • Page 21: Appendix

    StringT 30 Byte Firmware Revision 23 (0x17) StringT 6 Byte Application Specific Tag 24 (0x18) Any string up to 32 characters StringT max 32 Byte Rev.00 - 03.2025 | MAN UAxxASDxxBPM1 IO-Link ENG | © 2025 | CARLO GAVAZZI Industri...
  • Page 22: Bdc Parameters

    Index Dec Parameter Name Access Default value Data range Data Type Length (Hex) 0 = Off Temperature compensation 74 (0x4A) UIntegerT 8 bit 1 = On Rev.00 - 03.2025 | MAN UAxxASDxxBPM1 IO-Link ENG | © 2025 | CARLO GAVAZZI Industri...
  • Page 23: Diagnostic Parameters

    0 = Device is operating properly 1 = Maintenance required Device Status 36 (0x24) 2 = Out-of-specification UIntegerT 8 Bit 3 = Functional-Check 4 = Failure Rev.00 - 03.2025 | MAN UAxxASDxxBPM1 IO-Link ENG | © 2025 | CARLO GAVAZZI Industri...
  • Page 24: Dimensions

    10. Detection diagram Movement of object Sensor Object Rev.00 - 03.2025 | MAN UAxxASDxxBPM1 IO-Link ENG | © 2025 | CARLO GAVAZZI Industri...
  • Page 25 Sensing range (mm) Sensing range (mm) Plate 200 x 200 mm Plate 200 x 200 mm Round bar Ø 20 mm Round bar Ø 20 mm Rev.00 - 03.2025 | MAN UAxxASDxxBPM1 IO-Link ENG | © 2025 | CARLO GAVAZZI Industri...
  • Page 26 CARLO GAVAZZI www.gavazziautomation.com Certified in accordance with ISO 9001 MAN UAxxASDxxBPM IO-Link ENG rev.00 - 03.2025...
