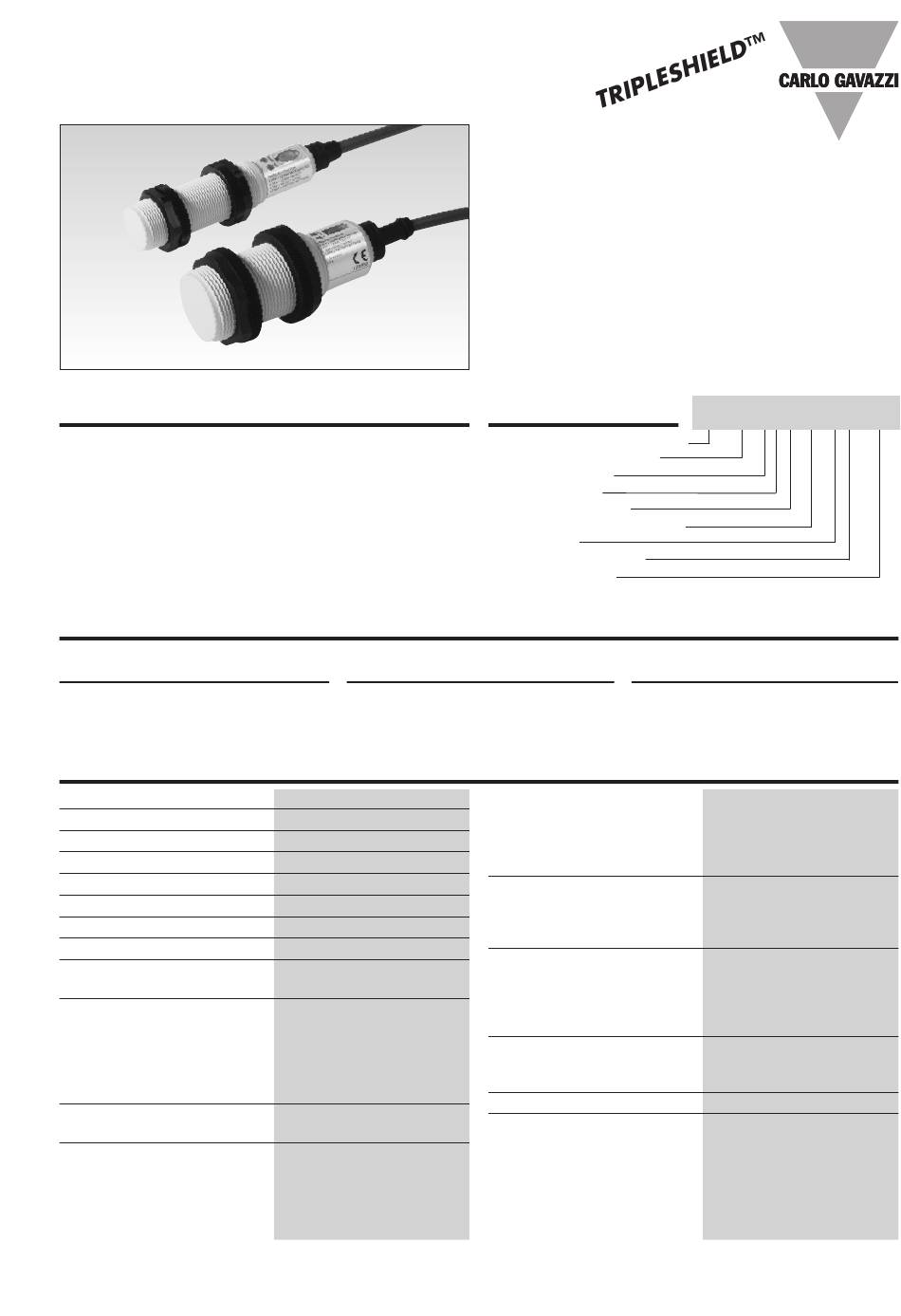

CARLO GAVAZZI TRIPLESHIELD CA Manual

Capacitive Level Detector for Plastic & Rubber
Thermoplastic Polyester Housing
Types CA, M18, M30, DC, Teach-in
Product Description
Capacitive level detector
with specialized and opti-
mized features for level
detection in plastic and rub-
ber applications.
The adjustment is easy to
change by means of the
single-step teach-in func-
tion. The sensing face (flush
Type Selection
Housing diameter
M 18
M 30
Specifications
Sensitivity
Repeat accuracy (R)
Hysteresis (H)
Rated operational volt. (U
Ripple
Rated operational current (I
No-load supply current (I
Voltage drop (U
)
d
Protection
TRIPLESHIELD
TM
protection-EMC
IEC 1000-4-2/EN 61000-4-2
IEC 1000-4-3/EN 61000-4-3
IEC 1000-4-4/EN 61000-4-4
IEC 1000-4-6/EN 61000-4-6
Frequency of operating
cycles (f)
Indication
For output ON
For safe/unsafe
Specifications are subject to change without notice (02.12.2016)
mounted) can withstand
temperatures up to 120°C.
3-wire DC output
selectable make (NO) or
break (NC) switching and
NPN Alarm. Grey polyester
housing with 2 m PVC cable
or M12 plug.
Ordering no.
Cable
CA18CLL12BP
CA30CLL30BP
Adjustable (Teach-in)
≤ 5%
5 - 10%
) 10 to 40 VDC (ripple incl.)
B
≤ 10%
) ≤ 250 mA (continuous)
e
) ≤ 12 mA
o
≤ 2.5 VDC @ max. load
Short-circuit, reverse
polarity, transients
30 kV
> 15 V/m
3 kV
> 10 V
rms
5 Hz
LED, yellow
LED, green
• Primary designed for plastic and rubber
applicatioins
• For liquid and dry bulk material detection
• Featuring TRIPLESHIELD™ Sensor Protection
• Teach-in of sensing distance via push-button or
COM-input
• Automatic detection of NPN or PNP load
• Selectable make or break switching by means of
Teach-in function
• Protection: Short-circuit, transients and reverse polarity
• Humidity compensation
• Alarm output for unsafe operation or heavy dirt build-
up on sensing surface
• 5 years of warranty
Ordering Key
Capacitive prox im ity switch
Housing diameter (mm)
with Housing material
Housing length
Detection principle
Rated operating dist. (mm)
Output type
Output configuration
Connection type
Environment
Degree of protection
Operating temperature
Max. temperature on sensing face 120°C (248°F)
Storage temperature
Housing material
Body
Cable end
Nuts
Connection
Cable
Plug (M1)
Cable for plug (M1)
Weight
Cable version - M18 / M30
Plug version - M18 / M 30
Approvals
CE-marking
CA18CLL12BPM1
Ordering no.
Plug
CA18CLL12BPM1
CA30CLL30BPM1
IP 68
-20° to +85°C ( -4° to +185°F)
-40° to +85°C (-40° to +185°F)
Grey, thermoplastic polyester
Polyester, softened
Black, PA12 Grilamid
Grey, 2 m, 4 x 0.25 mm
Oil proof, PVC
M12 x 1
CON.1A-series
110 g/160 g
30 g/70 g
UL, CSA
Yes
2
1
