REPLACEMENT INSTRUCTIONS

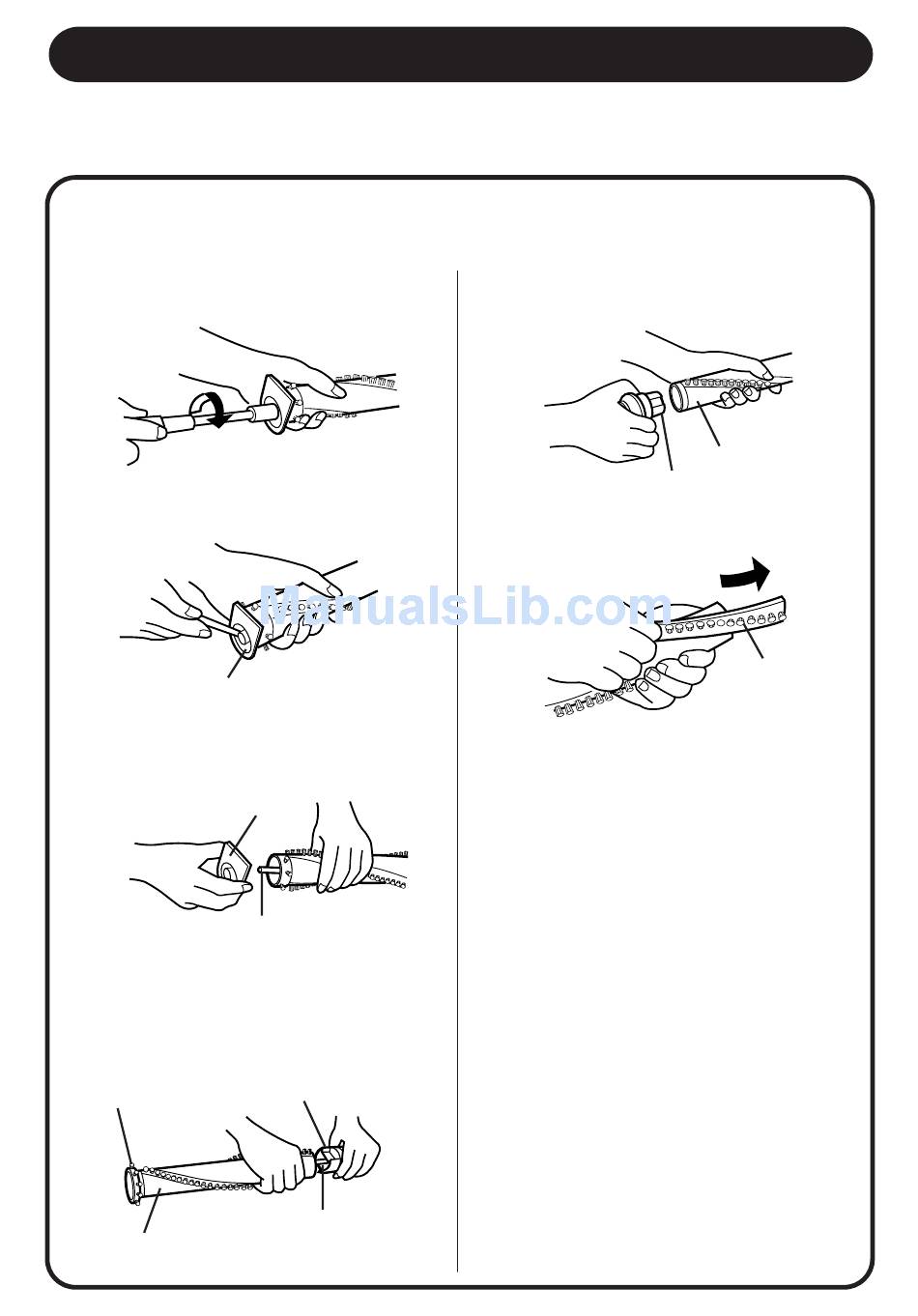

HOW TO REPLACE AGITATOR BRUSHES AND BRUSH
ROTOR B
When replacing the brush, replace all four brushes at the same time for more efficient
cleaning.
1
Remove the nut from the agitator shaft
by turning clockwise. (Fig. 53)
2
Remove the washer from the agitator
shaft. (Fig. 54)
Washer
3
Then pull out the agitator support B
from the agitator shaft as shown.
(Fig. 55)
Agitator support B
4
Pull out or pry the agitator pipe with the
brush and the brush rotor B from the
agitator shaft. (Fig. 56) (Take care not to
bend or deform the agitator shaft.)
Brush rotor B
Agitator pipe
18
(CT1500 type)
Agitator shaft
Main pulley
Agitator shaft
5
Then pull out the brush rotor B from the
agitator pipe. (Fig. 57)
Fig.53
Now the brushes can be removed eas-
6
ily. (Fig. 58)
Fig.54
7
After inserting the new brushes, reinstall
the agitator pipe and the brush rotor B.
Make sure they are completely and firmly
inserted.
8
Reinstall the other parts using the re-
verse procedure.
Always reinstall the washer and the nut
to the agitator shaft.
Fig.55
Fig.56
Agitator pipe
Brush rotor B
Fig.57
Brush
Fig.58
