REPLACEMENT INSTRUCTIONS

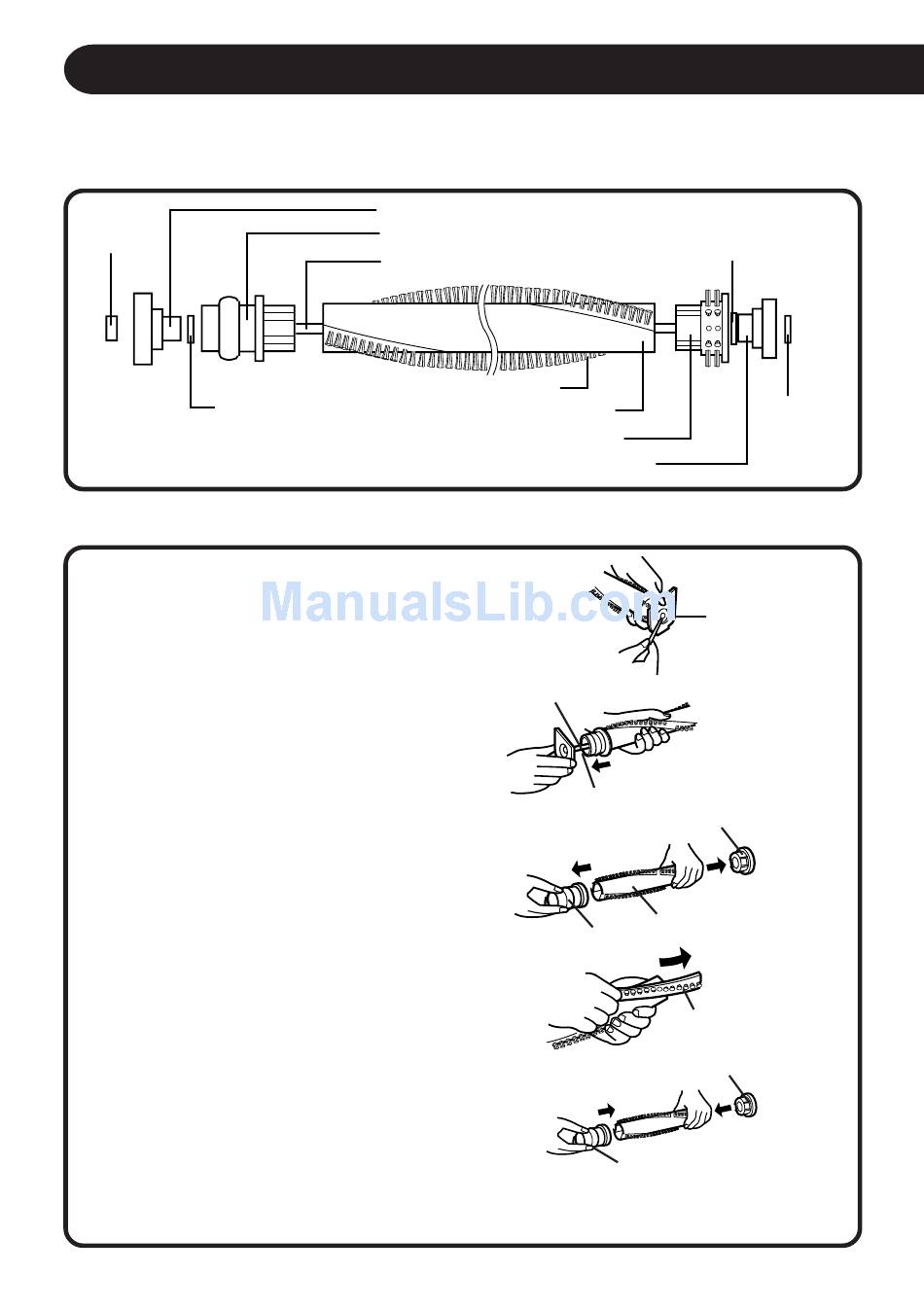

EXPLODED VIEW OF AGITATOR ASSEMBLY FOR
REPLACING AGITATOR BRUSHES
Nut
HOW TO REPLACE AGITATOR BRUSHES
When replacing the brush, replace all four
brushes at the same time for more efficient
cleaning.
1
Remove the E-clip from the agitator
shaft by using a pick. (Fig. 44)
2
Then pull out the agitator shaft from the
right end as shown. (Fig. 45)
Take care not to deform the agitator
shaft.
3
Pull or pry out the main pulley and the
brush rotor B from agitator pipe.
(Fig. 46)
4
Now the brushes can be easily
removed. (Fig. 47)
5
After inserting the new brushes, rein-
stall the main pulley and the brush
rotor B. Make sure they are completely
and firmly inserted. (Fig. 48)
Reinstall other parts using the reverse procedure. Always fasten the E-clip on the shaft
6
before reinstalling the agitator assembly.
16
Agitator support L
Main pulley
Agitator shaft
Washer
(CT1200 type)
Brush
Agitator pipe
Brush rotor B
Agitator suppor R
Agitator shaft
Agitator support R
Brush rotor B
Agitator pipe
Main pulley
Brush rotor B
Main pulley
Washer
E-clip
Fig.43
(CT1200 type)
E-clip
Fig.44
Fig.45
Fig.46
Brush
Fig.47
Fig.48
